Connectors / Headers and Edge Type Connectors / 3-640599-6
Datasheets
3-640599-6 by: TE Connectivity

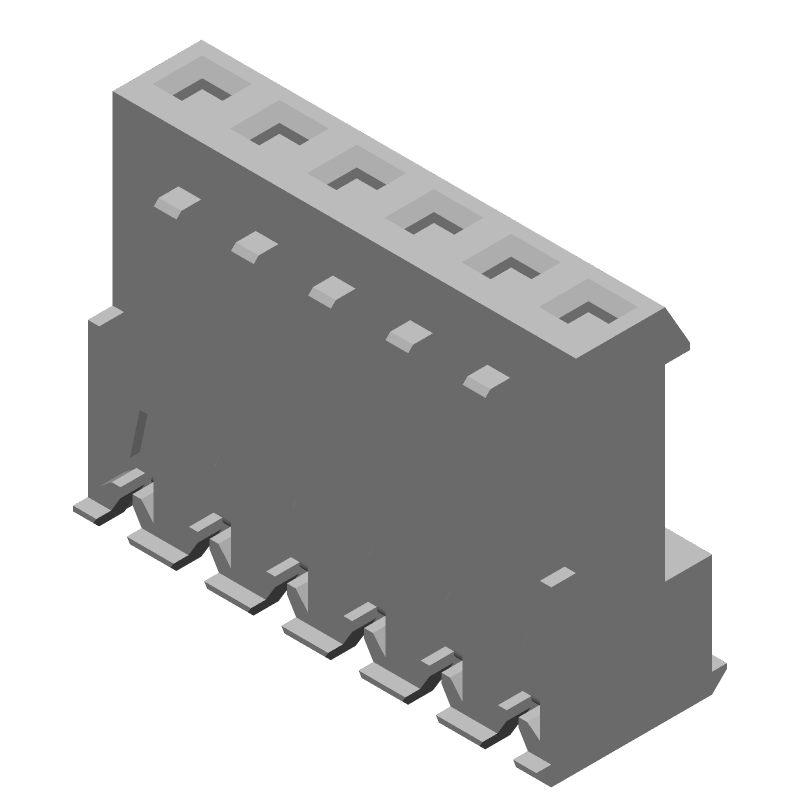

Board Connector, 6 Contact(s), 1 Row(s), Female, 0.156 inch Pitch, IDC Terminal, Locking, Orange Insulator, Receptacle

Part Details for 3-640599-6 by TE Connectivity

Results Overview of 3-640599-6 by TE Connectivity

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Industrial Automation Energy and Power Systems Renewable Energy

3-640599-6 Information

3-640599-6 by TE Connectivity is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Price & Stock for 3-640599-6

Part # Distributor Description Stock Price Buy
DISTI # 99X1416
Newark 06P Mta156 Conn Assy 18Awg Ora |Amp Te Connectivity 3-640599-6 RoHS: Not Compliant Min Qty: 7000 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 5,000 $0.5620
$0.5620 Buy Now
DISTI # 3-640599-6
Avnet Americas Conn IDC Connector F 6 POS 3.96mm IDT RA Cable Mount - Boxed Product (Development Kits) (Alt: 3-640599-6) COO: United States of America (the) RoHS: Compliant Min Qty: 7000 Package Multiple: 7000 Lead time: 12 Weeks, 0 Days Container: Box 0
  • 7,000 $0.4559
  • 14,000 $0.4014
  • 28,000 $0.3993
  • 42,000 $0.3973
  • 56,000 $0.3953
$0.3953 / $0.4559 Buy Now
DISTI # 70087613
RS MTA-156 CONNECTOR TIN, 06P MTA156 CONN ASSY 18AWG ORA Min Qty: 1 Package Multiple: 1 Container: Bulk 242
  • 1 $0.8300
  • 100 $0.7000
  • 250 $0.6600
  • 500 $0.6300
  • 1,000 $0.5900
$0.5900 / $0.8300 Buy Now
TE Connectivity 06P MTA156 CONN ASSY 18AWG ORA Number of Positions: 6 Connector & Housing Type: Receptacle Connector Product Type: Connector Assembly Mating Alignment: Without Mating Retention: With Standard Rectangular Connector | 6 Receptacle Connector Assembly Without | Part Number: 3-640599-6 | Internal Number: 3-640599-6 | TE Connectivity RoHS: Compliant Min Qty: 1 3990
  • 1 $0.9500
  • 10 $0.7500
  • 100 $0.6100
  • 1,000 $0.4500
$0.4500 / $0.9500 Buy Now
DISTI # AMP3-640599-6
Heilind Electronics 06P MTA156 CONN ASSY 18AWG ORA Americas - 5328 in Stock
  • 1 $0.5588
  • 400 $0.4900
  • 800 $0.4684
  • 1,600 $0.4550
  • 3,200 $0.4424
$0.4424 / $0.5588 Buy Now
DISTI # 3-640599-6
IBS Electronics 3-640599-6,TE CONNECTIVITY / AMP,06P MTA156 CONN ASSY 18AWG ORA Min Qty: 250 Package Multiple: 1 9500
  • 250 $0.7280
  • 500 $0.6647
  • 1,000 $0.6259
  • 2,500 $0.5792
  • 5,000 $0.5762
  • 7,500 $0.5734
  • 10,000 $0.5705
  • 15,000 $0.5677
$0.5677 / $0.7280 Buy Now
DISTI # 3-640599-6
IBS Electronics MTA-156 CONNECTOR TIN 06P MTA156 CONN ASSY 18AWG ORA | TE CONNECTIVITY 3-640599-6 Min Qty: 7000 Package Multiple: 1 0
  • 2,000 $0.5600
  • 3,000 $0.5600
  • 4,000 $0.5530
  • 5,000 $0.5460
  • 7,000 $0.5740
$0.5460 / $0.5740 Buy Now
DISTI # AMP3-640599-6
Interstate Connecting Components 06P MTA156 CONN ASSY 18AWG ORA 1243
  • 1 $0.5588
  • 400 $0.4900
  • 800 $0.4684
  • 1,600 $0.4550
  • 3,200 $0.4424
$0.4424 / $0.5588 Buy Now
Powell Electronics MTA 156 - IDC Connect Min Qty: 1 18
  • 1 $1.5644
  • 1,000 $1.0951
  • 10,000 $0.9582
$0.9582 / $1.5644 Buy Now
DISTI # 000000000001447834
Sager Headers & Wire Housings FEED THRU WO TAB 6P L.R. orange 18 AWG Min Qty: 7000 0
  • 7,000 $0.4346
$0.4346 Buy Now
DISTI # 3-640599-6
Avnet Abacus Conn IDC Connector F 6 POS 396mm IDT RA Cable Mount (Alt: 3-640599-6) RoHS: Compliant Min Qty: 7000 Package Multiple: 1000 Lead time: 22 Weeks, 0 Days Abacus - 0
Buy Now
DISTI # 3-640599-6
Avnet Abacus Conn IDC Connector F 6 POS 396mm IDT RA Cable Mount (Alt: 3-640599-6) RoHS: Compliant Min Qty: 250 Package Multiple: 1 Lead time: 24 Weeks, 0 Days Abacus - 0
Buy Now
DISTI # 3-640599-6
Avnet Asia Conn IDC Connector F 6 POS 3.96mm IDT RA Cable Mount (Alt: 3-640599-6) RoHS: Compliant Min Qty: 7000 Package Multiple: 1000 Lead time: 14 Weeks, 5 Days 0
RFQ

US Tariff Estimator: 3-640599-6 by TE Connectivity

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

3-640599-6
TE Connectivity
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for 3-640599-6

3-640599-6 Part Data Attributes

Parametric Data
3-640599-6 TE Connectivity
Buy Now Datasheet
Compare Parts:
3-640599-6 TE Connectivity Board Connector, 6 Contact(s), 1 Row(s), Female, 0.156 inch Pitch, IDC Terminal, Locking, Orange Insulator, Receptacle
Rohs Code Yes
Part Life Cycle Code Active
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8536.69.40.40
Factory Lead Time 12 Weeks
Body Breadth 0.385 Inch
Body Depth 0.385 Inch
Body Length 0.936 Inch
Body/Shell Style Receptacle
Cable Types Stranded
Connector Type Board Connector
Contact Design Preassem Conn
Contact Finish Mating Not Applicable
Contact Finish Termination Tin (Sn)
Contact Gender Female
Contact Material Not Applicable
Contact Pattern Rectangular
Contact Resistance 7 MΩ
Contact Style Sq Pin-Skt
DIN Conformance No
Durability 25 Cycles
EMI Shielded No
Empty Shell Yes
Filter Feature No
IEC Conformance No
Insulation Diameter-Min 0.095 Inch
Insulation Resistance 5000000000 Ω
Insulator Color Orange
Insulator Material Polyamide
JESD-609 Code e3
MIL Conformance No
Mains Connector Rating 7a
Mating Contact Pitch 0.156 Inch
Mixed Contacts No
Mounting Option 1 Locking
Mounting Option 2 Locking
Mounting Type Cable
Number Of Connectors One
Number of Ports 1
Number of Rows Loaded 1
Operating Temperature-Max 105 °C
Operating Temperature-Min -55 °C
Option General Purpose
Panel Mount No
Plating Thickness 200u Inch
Polarization Key Polarized Housing
Rated Current (Signal) 7 A
Reference Standard Csa, Ul
Terminal Pitch 3.96 Mm
Termination Type Idc
Total Number of Contacts 6
UL Flammability Code 94V-2
Wire Size-Max 18 Awg
Wire Size-Min 18 Awg

Alternate Parts for 3-640599-6

This table gives cross-reference parts and alternative options found for 3-640599-6. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 3-640599-6, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
640599-6 TE Connectivity $0.4984 06P MTA156 CONN ASSY 18AWG ORA 3-640599-6 vs 640599-6
CT156F18-6-CA Pancon Corporation Check for Price Board Connector, 6 Contact(s), 1 Row(s), Female, 0.156 inch Pitch, IDC Terminal, Natural Insulator, Plug 3-640599-6 vs CT156F18-6-CA
CT156F18-6-DA Pancon Corporation Check for Price Board Connector, 6 Contact(s), 1 Row(s), Female, 0.156 inch Pitch, IDC Terminal, Natural Insulator, Plug 3-640599-6 vs CT156F18-6-DA
Part Number Manufacturer Composite Price Description Compare
3-640433-6 TE Connectivity $0.4655 Board Connector, 6 Contact(s), 1 Row(s), Female, 0.156 inch Pitch, IDC Terminal, Locking, Red Insulator, Receptacle 3-640599-6 vs 3-640433-6
3-640600-6 TE Connectivity $0.4770 (3-640600-6) 06P MTA156 CONN ASSY 20AWG LF 3-640599-6 vs 3-640600-6
3-640599-6 TE Connectivity $0.4903 (3-640599-6) 06P MTA156 CONN ASSY 18AWG ORA 3-640599-6 vs 3-640599-6
3-640434-6 TE Connectivity $0.6126 Board Connector, 6 Contact(s), 1 Row(s), Female, 0.156 inch Pitch, IDC Terminal, Locking, White Insulator, Receptacle 3-640599-6 vs 3-640434-6
3-640602-6 TE Connectivity Check for Price Board Connector, 6 Contact(s), 1 Row(s), Female, 0.156 inch Pitch, IDC Terminal, Locking, White Insulator, Receptacle 3-640599-6 vs 3-640602-6
3-641217-6 TE Connectivity Check for Price Board Connector, 6 Contact(s), 1 Row(s), Female, 0.156 inch Pitch, IDC Terminal, Locking, Orange Insulator, Receptacle 3-640599-6 vs 3-641217-6
equivalents icon

3-640599-6 Related Parts

3-640599-6 Frequently Asked Questions (FAQ)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4-12 in-lbs).

  • Yes, the 3-640599-6 connector is designed to withstand high-vibration environments and meets the IEC 61373 standard for vibration resistance.

  • Yes, the connector is suitable for outdoor use and has a rating of IP67, which means it is protected against dust and water ingress.

  • The maximum operating temperature of the connector is 125°C (257°F).

  • No, the connector is designed for use with wire gauges 18 AWG to 24 AWG. Using a larger wire gauge may not provide a reliable connection.
