3266W-1-102LF by: Bourns Inc

Trimmer, Cermet, 0.25W, 1000ohm, 10% +/-Tol, -100,100ppm/Cel, 12 Turn(s), 2618, 1/4 INCH, SQUARE, 3 PINS, ROHS COMPLIANT

Part Details for 3266W-1-102LF by Bourns Inc

Results Overview of 3266W-1-102LF by Bourns Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Audio and Video Systems Entertainment and Gaming

3266W-1-102LF Information

3266W-1-102LF by Bourns Inc is a Variable Resistor.
Variable Resistors are under the broader part category of Resistors.

Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.

Price & Stock for 3266W-1-102LF

Part # Distributor Description Stock Price Buy
DISTI # 39K1995
Newark Trimmer, 1K, 12 Turn, T Hole, Track Resistance:1Kohm, No. Of Turns:12Turns, Potentiometer Mounting:Through Hole, Product Range:Trimpot 3266 Series, Power Rating:250Mw, Resistance Tolerance:± 10%, Temperature Coefficient:± 100Ppm/°C, Rohs Compliant: Yes |Bourns 3266W-1-102LF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 999
  • 1 $3.2700
  • 10 $2.6500
  • 25 $2.5000
  • 50 $2.3500
  • 100 $2.2000
  • 500 $2.0900
  • 1,000 $1.9600
  • 2,500 $1.9100
$1.9100 / $3.2700 Buy Now
DISTI # 62J1279
Newark Trimmer Potentiometer, 1Kohm 12Turn Through Hole, Trimmer Type:Multi Turn, Element Material:Cermet, Adjustment Type:Top Adjust, Track Resistance:1Kohm, Potentiometer Mounting:Through Hole, No. Of Turns:12Turns, Power Rating:250Mw Rohs Compliant: Yes |Bourns 3266W-1-102LF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk 150
  • 1 $3.3900
  • 10 $2.8300
  • 25 $2.7700
  • 50 $2.7000
  • 100 $2.3300
  • 500 $2.2800
  • 1,000 $2.1300
  • 2,500 $2.0500
$2.0500 / $3.3900 Buy Now
DISTI # 3266W-1-102LF
Avnet Americas Trimmer, Multi Turn, Cermet, Top Adjust, 1 kohm, Through Hole, 12 Turns - Rail/Tube (Alt: 3266W-1-102LF) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 9 Weeks, 0 Days Container: Tube 50
  • 1 $3.1752
  • 10 $2.3985
  • 30 $1.9439
  • 50 $1.9339
  • 100 $1.9238
$1.9238 / $3.1752 Buy Now
DISTI # 62J1279
Avnet Americas Trimmer, Multi Turn, Cermet, Top Adjust, 1 kohm, Through Hole, 12 Turns - Bulk (Alt: 62J1279) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 9 Weeks, 3 Days Container: Bulk 150 Partner Stock
  • 1 $3.3700
  • 10 $2.7600
  • 25 $2.6100
  • 50 $2.4600
  • 100 $2.3200
$2.3200 / $3.3700 Buy Now
DISTI # 70154202
RS TRIMMER, CERMET, MULTI TURN, .25 WATT, 10%, 1K, 3266 Series Min Qty: 1 Package Multiple: 1 Lead time: 9 Weeks, 0 Days Container: Bulk 155
  • 1 $3.3300
  • 5 $3.0700
  • 10 $2.9300
  • 20 $2.6700
  • 100 $2.5000
$2.5000 / $3.3300 Buy Now
Bristol Electronics   Min Qty: 1 249
  • 1 $5.4600
  • 6 $3.5490
  • 16 $2.7300
  • 47 $2.5482
  • 100 $2.3658
  • 202 $2.2386
$2.2386 / $5.4600 Buy Now
DISTI # 3266W-1-102LF
TME Potentiometer: mounting, multiturn, 1kΩ, 250mW, ±10%, linear, THT Min Qty: 1 183
  • 1 $3.1200
  • 5 $2.6400
  • 25 $2.3700
  • 50 $2.1500
  • 100 $2.0800
  • 250 $2.0300
  • 500 $2.0000
$2.0000 / $3.1200 Buy Now
DISTI # 3266W-1-102LF
Avnet Abacus Trimmer Multi Turn Cermet Top Adjust 1 kohm Through Hole 12 Turns (Alt: 3266W-1-102LF) RoHS: Compliant Min Qty: 100 Package Multiple: 100 Lead time: 9 Weeks, 0 Days Abacus - 2600
Buy Now
LCSC 10% 100ppm/ 250mW 1k Plugin-3P6.4x4.3mm Potentiometers Variable Resistors ROHS 498
  • 1 $1.5658
  • 10 $1.3104
  • 50 $1.2009
  • 100 $1.0644
  • 500 $1.0036
  • 1,000 $0.9671
$0.9671 / $1.5658 Buy Now
Neutron USA Trimming Potentiometer, Cermet, 1 kOhms, 0.25W, 12.0 Turn, Top Adj, PC Pins TH 50
  • 1 $23.5900
$23.5900 Buy Now
New Advantage Corporation Res Cermet Trimmer 1K00 Ohm, 10% Multiturn 1.78mm, RoHS, Tube RoHS: Compliant Min Qty: 1 Package Multiple: 100 1000
  • 100 $2.4100
  • 1,000 $2.2300
$2.2300 / $2.4100 Buy Now
Vyrian Resistors 2241
RFQ
Win Source Electronics TRIMMER 1K OHM 0.25W PC PIN / Res Cermet Trimmer 1K Ohm 10% 0.25W(1/4W) 12(Elec)Turns 1.78mm (6.71 X 4.5 X 8.26mm) Pin Thru-Hole Tube 6200
  • 45 $1.2458
  • 100 $1.0222
  • 155 $0.9903
  • 210 $0.9583
  • 270 $0.9264
  • 365 $0.8305
$0.8305 / $1.2458 Buy Now

Part Details for 3266W-1-102LF

3266W-1-102LF CAD Models

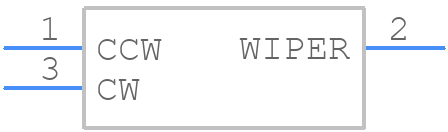

  • Part Symbol

    Part Symbol

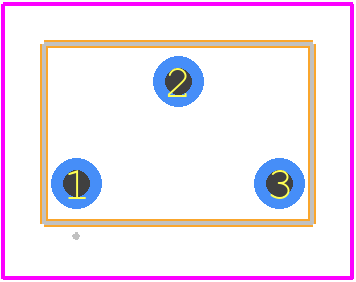

  • Footprint
