3269W-1-203GLF by: Bourns Inc

Trimmer, Cermet, 0.25W, 20000ohm, 10% +/-Tol, -100,100ppm/Cel, 12 Turn(s), 2517, 1/4 INCH, SQUARE, 3 PINS, LEAD FREE

Part Details for 3269W-1-203GLF by Bourns Inc

Results Overview of 3269W-1-203GLF by Bourns Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Education and Research Environmental Monitoring Industrial Automation Audio and Video Systems Computing and Data Storage Agriculture Technology Medical Imaging Entertainment and Gaming

3269W-1-203GLF Information

3269W-1-203GLF by Bourns Inc is a Variable Resistor.
Variable Resistors are under the broader part category of Resistors.

Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.

Available Datasheets

Part # Manufacturer Description Datasheet
10127721-203GLF Amphenol Communications Solutions Minitek® Pwr 3.0, Dual Row, Vertical Through Hole Header, 20 Position, 3.2mm Kink Tail (15u\\ Gold) plating, GW Compatible LCP, Black Color,Tray Packing.
10127720-203GLF Amphenol Communications Solutions Minitek® Pwr 3.0, Dual Row, Right Angle Through Hole Header, 20 Positions, 15u\\ Gold plating, GW Compatible LCP, With Pegs, Tray Packing.

Price & Stock for 3269W-1-203GLF

Part # Distributor Description Stock Price Buy
DISTI # 24K1043
Newark Trimmer Potentiometer 20Kohm,12Turn Smd, Trimmer Type:Multi Turn, Element Material:Cermet, Adjustment Type:Top Adjust, Track Resistance:20Kohm, Potentiometer Mounting:Surface Mount, No. Of Turns:12Turns, Product Range:3269 Series Rohs Compliant: Yes |Bourns 3269W-1-203GLF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape 483
  • 1 $4.5300
  • 10 $3.8600
  • 25 $3.6200
  • 50 $3.4400
  • 100 $3.2800
  • 250 $3.0800
$3.0800 / $4.5300 Buy Now
DISTI # 47AK6097
Newark Res, Trimmer, Top Adj, 20K, 12Turns, Smd, Trimmer Type:Multi Turn, Element Material:Cermet, Adjustment Type:Top Adjust, Track Resistance:20Kohm, Potentiometer Mounting:Surface Mount, No. Of Turns:12Turns, Product Range:3269 Series Rohs Compliant: Yes |Bourns 3269W-1-203GLF RoHS: Compliant Min Qty: 500 Package Multiple: 1 Date Code: 1 Container: Reel 0
  • 1 $2.6600
  • 2,000 $2.5300
  • 4,000 $2.3500
  • 8,000 $2.1900
  • 12,000 $2.1100
  • 20,000 $2.0800
$2.0800 / $2.6600 Buy Now
DISTI # 24K1043
Avnet Americas - Product that comes on tape, but is not reeled (Alt: 24K1043) COO: Costa Rica RoHS: Compliant Min Qty: 1 Package Multiple: 1 Container: Ammo Pack 513 Partner Stock
  • 1 $4.5300
  • 10 $3.8600
  • 25 $3.6200
  • 50 $3.4400
  • 100 $3.2800
  • 250 $3.0800
$3.0800 / $4.5300 Buy Now
DISTI # 3269W-1-203GLF
Avnet Americas - Tape and Reel (Alt: 3269W-1-203GLF) COO: Costa Rica RoHS: Compliant Min Qty: 500 Package Multiple: 500 Lead time: 7 Weeks, 0 Days Container: Reel 0
RFQ
DISTI # 71278931
RS TRIMMER-SMD 1/4 Min Qty: 500 Package Multiple: 1 Lead time: 9 Weeks, 0 Days Container: Bulk 0
  • 500 $4.8800
  • 2,500 $4.6400
  • 5,000 $4.3900
  • 10,000 $4.1500
$4.1500 / $4.8800 RFQ
Bristol Electronics   779
RFQ
DISTI # 3269W-1-203GLF
IBS Electronics 1/4 SQ SMD TRIMMER CERMET 12 TURNS 20 KILOHMS | BOURNS 3269W-1-203GLF Min Qty: 500 Package Multiple: 1 1500
  • 500 $3.4020
  • 1,000 $3.0940
  • 2,500 $3.0240
  • 5,000 $2.9540
  • 7,500 $2.9120
  • 10,000 $2.8980
$2.8980 / $3.4020 Buy Now
DISTI # 3269W-1-203GLF
Avnet Abacus - Tape and Reel (Alt: 3269W-1-203GLF) RoHS: Compliant Min Qty: 500 Package Multiple: 500 Lead time: 8 Weeks, 0 Days Container: Reel Abacus - 0
Buy Now

US Tariff Estimator: 3269W-1-203GLF by Bourns Inc

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

3269W-1-203GLF
Bourns Inc
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for 3269W-1-203GLF

3269W-1-203GLF CAD Models

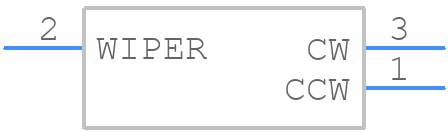

  • Part Symbol

    schematic symbol

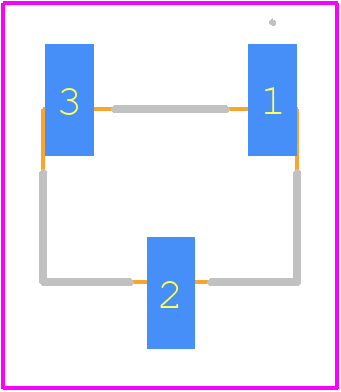

  • Footprint

    pcb footprint

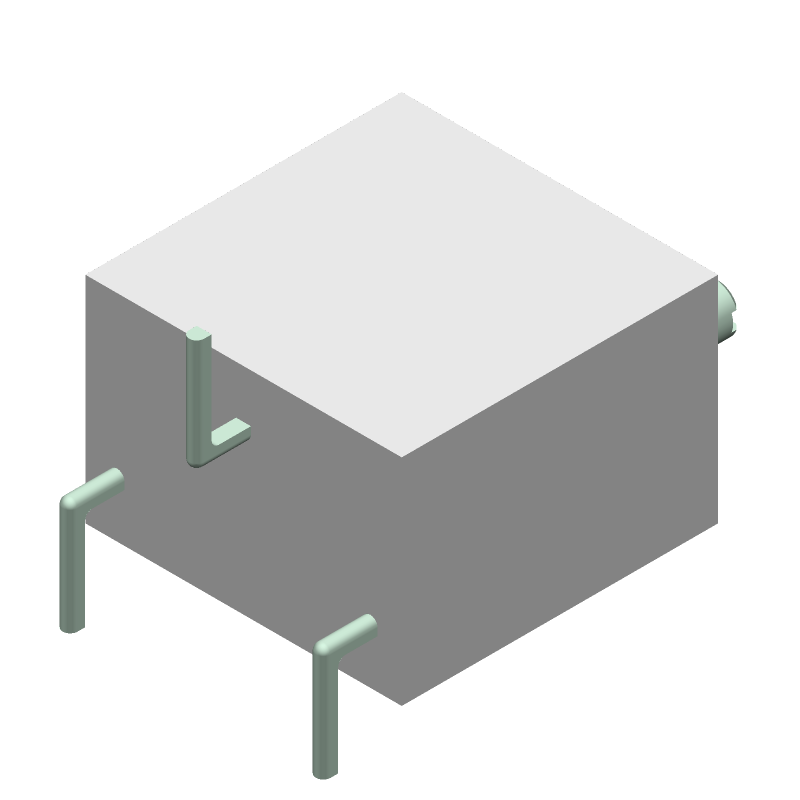

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

3269W-1-203GLF Part Data Attributes

Parametric Data
3269W-1-203GLF Bourns Inc
Buy Now Datasheet
Compare Parts:
3269W-1-203GLF Bourns Inc Trimmer, Cermet, 0.25W, 20000ohm, 10% +/-Tol, -100,100ppm/Cel, 12 Turn(s), 2517, 1/4 INCH, SQUARE, 3 PINS, LEAD FREE
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Package Description Chip
Reach Compliance Code Not Compliant
ECCN Code EAR99
HTS Code 8533.40.80.50
Factory Lead Time 9 Weeks
Actuator Orientation Vertical
Actuator Type Screw
Construction Rectangular
Ganging Number 1
JESD-609 Code e3
Mounting Feature Surface Mount
Number of Terminals 3
Number of Turns 12
Operating Temperature-Max 150 °C
Operating Temperature-Min -65 °C
Package Height 7.44 Mm
Package Length 6.35 Mm
Package Shape Rectangular Package
Package Style Smt
Package Width 4.32 Mm
Packing Method Tr, Embossed, 13 Inch
Rated Power Dissipation (P) 0.25 W
Rated Temperature 85 °C
Resistance 20000 Ω
Resistance Law Linear
Resistor Type Trimmer
Rotational Angle 4320 Deg
Size Code 2517
Surface Mount Yes
Technology Cermet
Temperature Coefficient 100 Ppm/°C
Terminal Finish Matte Tin
Terminal Shape L Bend
Tolerance 10%
Working Voltage 300 V
