341-016-521-201 by: EDAC Inc

Card Edge Connector, 16 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Green Insulator,

Part Details for 341-016-521-201 by EDAC Inc

Results Overview of 341-016-521-201 by EDAC Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

341-016-521-201 Information

341-016-521-201 by EDAC Inc is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Price & Stock for 341-016-521-201

Part # Distributor Description Stock Price Buy
DISTI # 66AJ2706
Newark Card Edge Conn, Dual, 16Pos, Th, Card Edge Connector Type:Dual Side, Card Thickness:1.57Mm, No. Of Contacts:16 Contacts, Connector Mounting:Through Hole Mount, Connector Body Orientation:Straight, Contact Termination Type:Solder Rohs Compliant: Yes |Edac 341-016-521-201 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 15
  • 1 $7.8900
  • 5 $7.2400
  • 10 $7.2400
  • 25 $7.2400
  • 50 $7.2400
  • 100 $6.6800
  • 250 $6.6800
  • 500 $6.6800
$6.6800 / $7.8900 Buy Now

US Tariff Estimator: 341-016-521-201 by EDAC Inc

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

341-016-521-201
EDAC Inc
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for 341-016-521-201

341-016-521-201 CAD Models

  • Part Symbol

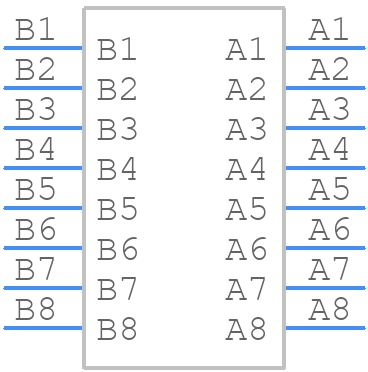

    schematic symbol

  • Footprint

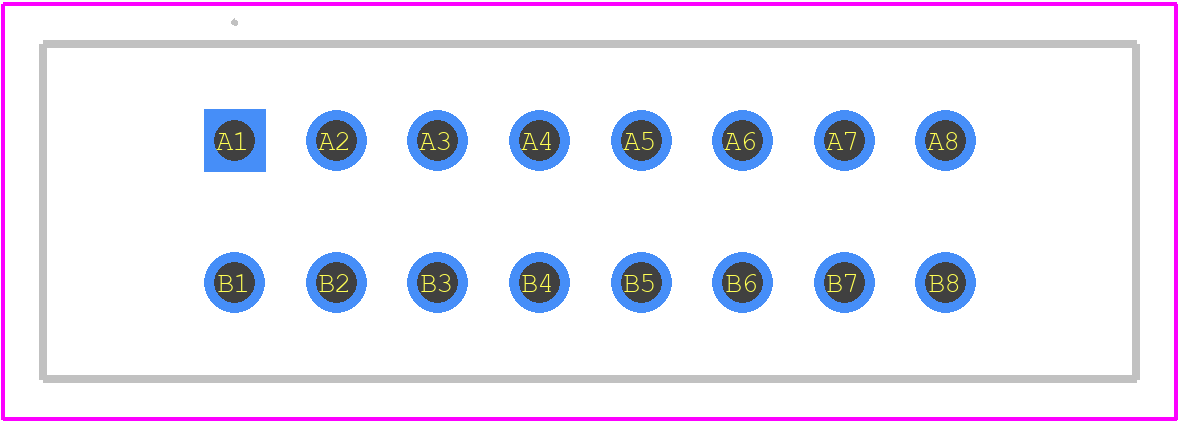

    pcb footprint

  • 3D Model

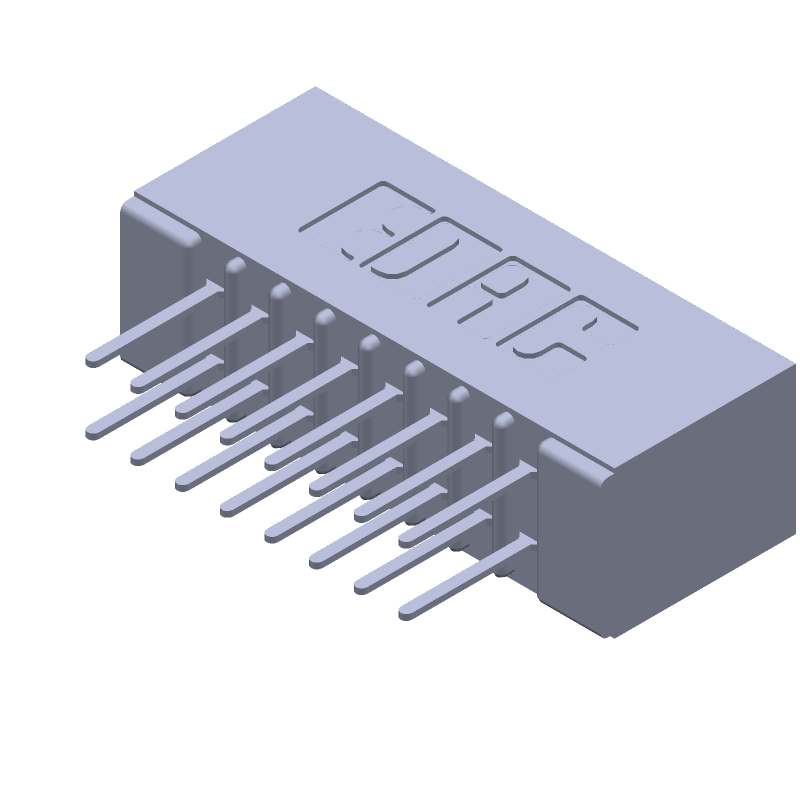

    2d presentation
