501568-0607 by: Molex

Board Connector, 6 Contact(s), 1 Row(s), Female, Right Angle, 0.039 inch Pitch, Surface Mount Terminal, Locking, Natural Insulator, ROHS AND REACH COMPLIANT

Part Details for 501568-0607 by Molex

Results Overview of 501568-0607 by Molex

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Audio and Video Systems

501568-0607 Information

501568-0607 by Molex is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Price & Stock for 501568-0607

Part # Distributor Description Stock Price Buy
DISTI # 64T4825
Newark Wire-To-Board Connector, Pico-Clasp 501568 Series, Surface Mount, Header, 6, 1 Mm Rohs Compliant: Yes |Molex 501568-0607 (Alternate Part Number: 822348871827 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape 17722
  • 1 $0.7240
  • 10 $0.5960
  • 25 $0.5590
  • 50 $0.5230
  • 100 $0.4870
  • 250 $0.4640
  • 500 $0.4510
$0.4510 / $0.7240 Buy Now
DISTI # 28X2797
Newark Connector, Header, 6Pos, 1Row, 1Mm, Connector Systems:Signal, Pitch Spacing:1Mm, No. Of Rows:1Rows, No. Of Contacts:6Contacts, Contact Termination Type:Surface Mount Right Angle, Product Range:Pico-Clasp 501568 Series Rohs Compliant: Yes |Molex 501568-0607 (Alternate Part Number: 822348871827 RoHS: Compliant Min Qty: 7800 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 7,800 $0.4230
$0.4230 Buy Now
DISTI # 5015680607
Avnet Americas Conn Shrouded Header HDR 6 POS 1mm Solder RA SMD Embossed T/R - Tape and Reel (Alt: 5015680607) RoHS: Compliant Min Qty: 1300 Package Multiple: 1300 Lead time: 10 Weeks, 0 Days Container: Reel 29900
7800 Factory Stock
  • 1,300 $0.4381
  • 2,600 $0.4289
  • 5,200 $0.4105
  • 7,800 $0.3983
  • 10,400 $0.3829
$0.3829 / $0.4381 Buy Now
DISTI # 70372952
RS 6w single row smt right-angle header 1mm Min Qty: 1 Package Multiple: 1 Lead time: 8 Weeks, 0 Days Container: Bulk 1290
  • 1 $0.6460
  • 100 $0.5490
  • 250 $0.5170
  • 500 $0.4910
  • 1,000 $0.4650
$0.4650 / $0.6460 Buy Now
DISTI # MOL501568-0607
Heilind Electronics 1.0WTB1-ROWR/AWAFERASSY6CKTEM STPPKG Americas - 2925 in Stock
  • 1,300 $0.4075
  • 2,600 $0.4013
  • 3,900 $0.3953
  • 19,500 $0.3944
$0.3944 / $0.4075 Buy Now
DISTI # MOL501568-0607.P
Heilind Electronics 1.0WTB1-ROWR/AWAFERASSY6C CUT TAPE Americas - 1453 in Stock
  • 1 $0.7518
  • 300 $0.6325
  • 700 $0.6130
  • 1,300 $0.6037
  • 1,938 $0.6037
$0.6037 / $0.7518 Buy Now
Bristol Electronics   Min Qty: 6 79
  • 6 $0.9000
  • 24 $0.5850
$0.5850 / $0.9000 Buy Now
DISTI # MX-501568-0607
TME connector 501568-0607 Min Qty: 1 0
  • 1 $0.6210
  • 10 $0.5450
  • 100 $0.4810
  • 500 $0.4740
$0.4740 / $0.6210 RFQ
DISTI # MOL501568-0607
Interstate Connecting Components 1.0WTB1-ROWR/AWAFERASSY6CKTEM STPPKG 682
  • 1,300 $0.4075
  • 2,600 $0.4013
  • 3,900 $0.3953
  • 19,500 $0.3944
$0.3944 / $0.4075 Buy Now
DISTI # MOL501568-0607.P
Interstate Connecting Components 1.0WTB1-ROWR/AWAFERASSY6C CUT TAPE 484
  • 1 $0.7518
  • 300 $0.6325
  • 700 $0.6130
  • 1,300 $0.6037
  • 1,938 $0.6037
$0.6037 / $0.7518 Buy Now
Component Electronics, Inc IN STOCK SHIP TODAY 535
  • 1 $0.7700
  • 100 $0.5800
  • 1,000 $0.5000
$0.5000 / $0.7700 Buy Now
Vyrian Connectors 62777
RFQ

Part Details for 501568-0607

501568-0607 CAD Models

  • Part Symbol

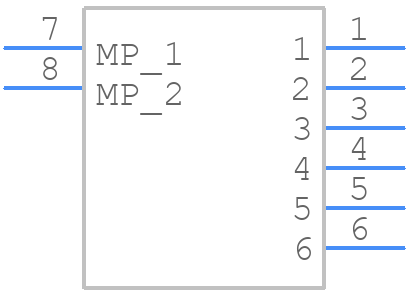

    Part Symbol

  • Footprint

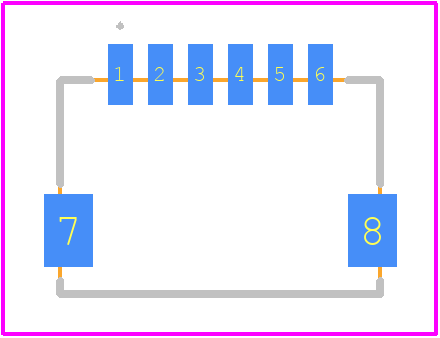

    footprint
