503159-0400 Information
503159-0400 by Molex is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.
Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| SF-NDYYYF0004-001.5M | Amphenol Cables on Demand | Amphenol SF-NDYYYF0004-001.5M 1.5m (4.9') 400GbE QSFP-DD Cable - Amphenol 400-Gigabit Ethernet Passive Copper QSFP Double Density Cable (Dual Entry 30 AWG) - QSFP-DD to QSFP-DD | |
| 10106130-4004002LF | Amphenol Communications Solutions | PwrBlade+®,Power Connectors, Vertical, Receptacle, 16S 4HP | |
| 10106130-4004001LF | Amphenol Communications Solutions | PwrBlade+® , Power Connectors, 4HP+16S STB, Vertical, Receptacle. |
Price & Stock for 503159-0400
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
4231801
|
Farnell | CONN, RCPT, 4POS, 1.5MM, TH RoHS: Compliant Min Qty: 300 Lead time: 1 Weeks, 2 Days Container: Each | 5831 |
|
$0.3119 / $0.3185 | Buy Now |
|
DISTI #
3221855
|
Farnell | WTB CONN, RCPT, 4POS, 1ROW, 1.5MM RoHS: Compliant Min Qty: 10 Lead time: 26 Weeks, 1 Days Container: Each | 0 |
|
$0.2764 / $0.4343 | Buy Now |
|
DISTI #
5031590400
|
Avnet Americas | Conn Wire to Board Receptacle 4 POS 1.5mm Solder Straight Through Hole - Trays (Alt: 5031590400) COO: Japan RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 17 Weeks, 0 Days Container: Tray | 3171 |
|
$0.1794 / $0.2436 | Buy Now |
|
DISTI #
MOL503159-0400
|
Heilind Electronics | 1.5W/BSGLDIPSTRECASSY4CKT WKNKBEIGE | Americas - 5978 in Stock |
|
$0.2527 / $0.3192 | Buy Now |
|
DISTI #
MX-503159-0400
|
TME | Connector: wire-board, socket, male, PIN: 4, CLIK-Mate, straight Min Qty: 1 | 277 |
|
$0.3740 / $0.5100 | Buy Now |
|
|
Powell Electronics | Connector Min Qty: 4590 | 4275 |
|
$0.2280 / $0.2760 | Buy Now |
|
|
Chip Stock | 1.5W/BSGLDIPSTRECASSY4CKTW/BOSWKNKBEIGE, 1.5W/BSGLDIPSTRECASSY4CKTW/BOSWKNKBEIGE | 3681 |
|
RFQ |
US Tariff Estimator: 503159-0400 by Molex
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for 503159-0400
503159-0400 CAD Models
-

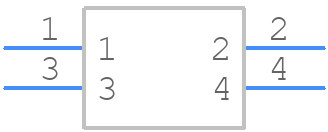

Part Symbol
-

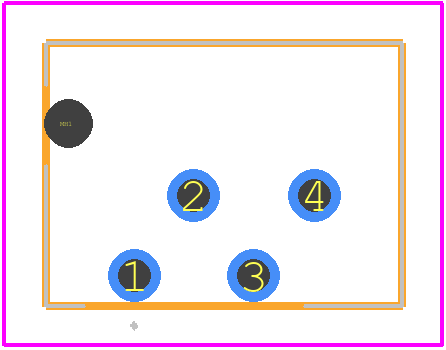

Footprint
-

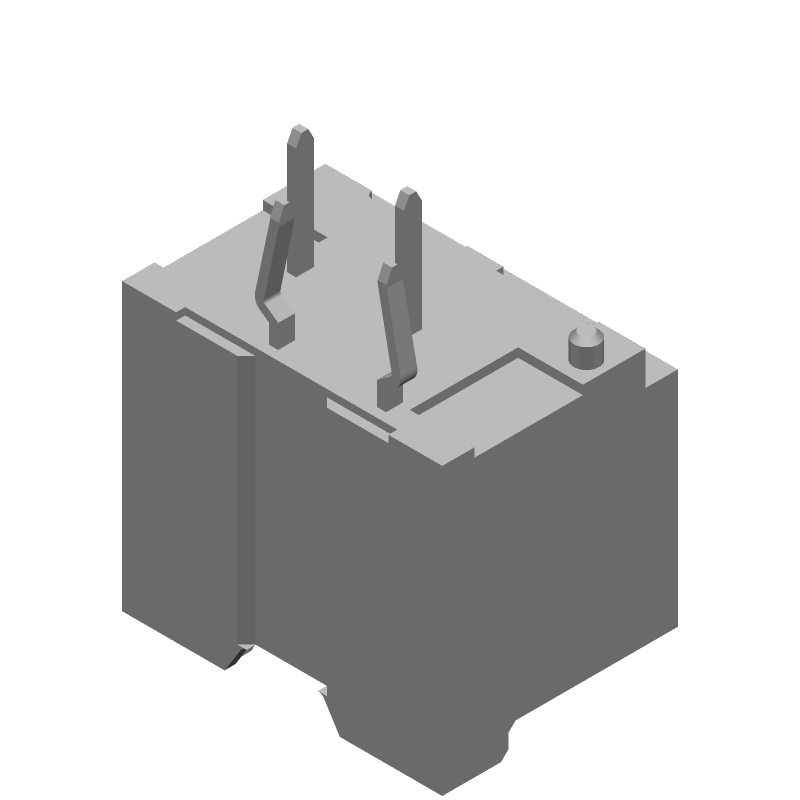

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
503159-0400 Part Data Attributes
|
|
503159-0400
Molex
Buy Now
Datasheet
|
Compare Parts:
503159-0400
Molex
Board Connector, 4 Contact(s), 1 Row(s), Female, Straight, 0.059 inch Pitch, Solder Terminal, Locking, Beige Insulator, Receptacle, ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | Rohs Compliant | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.69.40.40 | |
| Additional Feature | Clik-Mate, Polarized | |
| Body Breadth | 0.258 Inch | |
| Body Depth | 0.312 Inch | |
| Body Length | 0.35 Inch | |
| Body/Shell Style | Receptacle | |
| Connector Type | Board Connector | |
| Contact Finish Mating | Not Specified | |
| Contact Finish Termination | Tin (Sn) | |
| Contact Gender | Female | |
| Contact Material | Not Specified | |
| Contact Pattern | Rectangular | |
| Contact Resistance | 20 MΩ | |
| DIN Conformance | No | |
| Dielectric Withstanding Voltage | 500vac V | |
| Durability | 30 Cycles | |
| Filter Feature | No | |
| IEC Conformance | No | |
| Insulation Resistance | 500000000 Ω | |
| Insulator Color | Beige | |
| Insulator Material | Polyamide | |
| JESD-609 Code | e3 | |
| MIL Conformance | No | |
| Mating Contact Pitch | 0.059 Inch | |
| Mating Information | Multiple Mating Parts Available | |
| Mixed Contacts | No | |
| Mounting Option 1 | Locking | |
| Mounting Style | Straight | |
| Mounting Type | Board | |
| Number Of Connectors | One | |
| Number Of PCB Rows | 2 | |
| Number of Rows Loaded | 1 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -25 °C | |
| Option | General Purpose | |
| PCB Contact Pattern | Staggered | |
| PCB Contact Row Spacing | 2.0066 Mm | |
| Plating Thickness | 39u Inch | |
| Polarization Key | Polarized Housing | |
| Rated Current (Signal) | 2 A | |
| Reference Standard | Ul | |
| Terminal Length | 0.133 Inch | |
| Terminal Pitch | 1.5 Mm | |
| Termination Type | Solder | |
| Total Number of Contacts | 4 |
