503182-1852 Information
503182-1852 by Molex is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.
Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| 77313-518-52LF | Amphenol Communications Solutions | BergStik®, Board to Board connector, Unshrouded Header, 2.54 mm Pitch, Vertical, Double Row,Through Hole, 52 Positions | |
| 67118-524 | Amphenol Communications Solutions | Dubox® 2.54mm, Board to Board Connector, PCB Mounted Receptacle, Right Angle, Through Hole, Top Entry, Double Row, 48 position, 2.54mm (.100in) Pitch. | |
| 77313-185-28LF | Amphenol Communications Solutions | BergStik®, Board to Board connector, Unshrouded Header, 2.54 mm Pitch, Vertical, Double Row,Through Hole, 28 Positions |
Price & Stock for 503182-1852
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
06X9954
|
Newark | Micro Sd Normal Ultralowpro8Cktembstppkg Rohs Compliant: Yes |Molex 503182-1852 (Alternate Part Number: 887191053714 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 68 |
|
$2.5900 / $4.6400 | Buy Now |
|
DISTI #
83AH5851
|
Newark | Connector, Micro Sd, 8Pos, Product Range:503182 Series, Connector Type:Micro Sd, No. Of Contacts:8Contacts, Contact Material:Copper Alloy, Contact Plating:Gold Plated Contacts, Svhc:No Svhc (07-Jul-2017) Rohs Compliant: Yes |Molex 503182-1852 (Alternate Part Number: 887191053714 RoHS: Compliant Min Qty: 1600 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$2.7500 / $2.9400 | Buy Now |
|
DISTI #
17AM8383
|
Newark | 1.10Mm Pitch Microsd Memory Card Connector, Normal Mount Surface Mount, Push-Push Type, 1.45Mm Height, Anti-Card Fly-Out Rohs Compliant: Yes |Molex 503182-1852 (Alternate Part Number: 887191053714 RoHS: Compliant Min Qty: 1600 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$2.7000 / $2.9900 | Buy Now |
|
DISTI #
5031821852
|
Avnet Americas | - Tape and Reel (Alt: 5031821852) COO: Viet Nam RoHS: Compliant Min Qty: 9600 Package Multiple: 9600 Container: Reel | 0 |
|
RFQ | |
|
DISTI #
06X9954
|
Avnet Americas | - Product that comes on tape, but is not reeled (Alt: 06X9954) COO: Viet Nam RoHS: Compliant Min Qty: 1 Package Multiple: 1 Container: Ammo Pack | 0 |
|
$2.5900 / $4.6400 | Buy Now |
|
DISTI #
70714459
|
RS | MICRO SD NORMAL ULTRALOWPRO8CKTEMBSTPPKG, 503182 Min Qty: 1600 Package Multiple: 1 Lead time: 12 Weeks, 0 Days Container: Bulk | 0 |
|
$2.4400 / $4.0600 | RFQ |
|
DISTI #
MOL503182-1852
|
Heilind Electronics | MICRO SD NORMAL ULTRALOWP TEMBSTPPKG | Americas - 9600 in Stock7200 On Order |
|
$1.9404 / $2.0213 | Buy Now |
|
|
Bristol Electronics | 980 |
|
RFQ | ||
|
|
Chip Stock | PCBConnector,8Contact(s),1Row(s),Male,Straight,0.043inchPitch,SurfaceMountTerminal | 3500 |
|
RFQ | |
|
|
Win Source Electronics | 5563 |
|
$1.4857 / $2.2285 | Buy Now |
US Tariff Estimator: 503182-1852 by Molex
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for 503182-1852
503182-1852 CAD Models
-

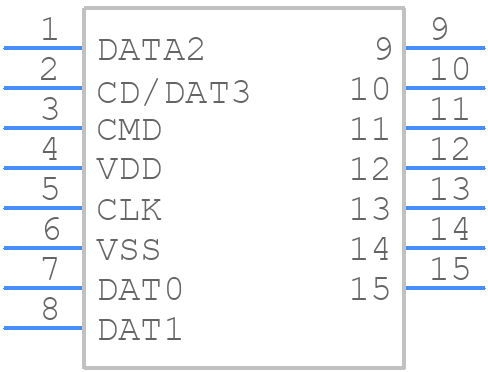

Part Symbol
-

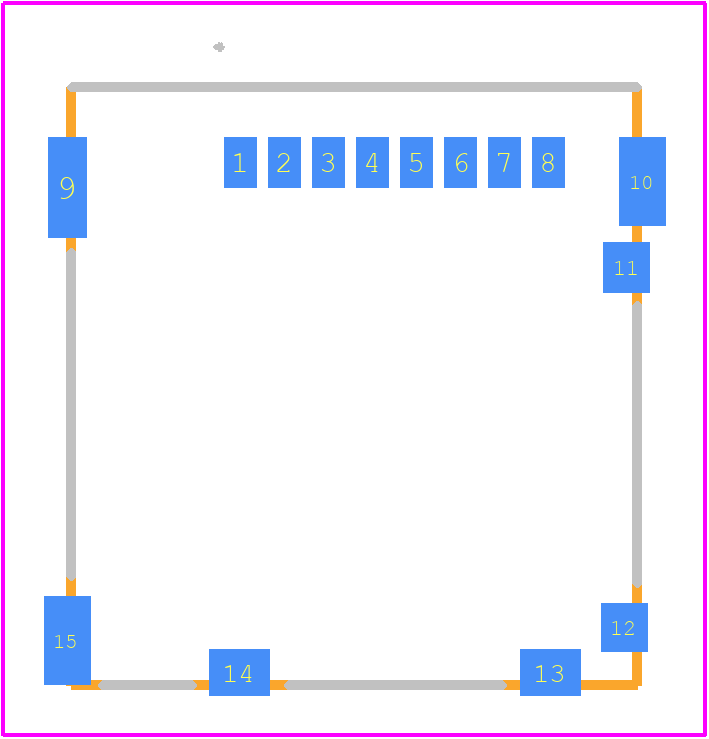

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
503182-1852 Part Data Attributes
|
|
503182-1852
Molex
Buy Now
Datasheet
|
Compare Parts:
503182-1852
Molex
PCB Connector, 8 Contact(s), 1 Row(s), Male, Straight, 0.043 inch Pitch, Surface Mount Terminal, LOW HALOGEN AND ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Package Description | Low Halogen And Rohs Compliant | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.69.40.40 | |
| Additional Feature | Shielded | |
| Body Breadth | 0.057 Inch | |
| Body Depth | 0.589 Inch | |
| Body Length | 0.588 Inch | |
| Body/Shell Style | Socket | |
| Connector Type | Pcb Connector | |
| Contact Finish Mating | Not Specified | |
| Contact Finish Termination | Gold/Tin (Au/Sn) | |
| Contact Gender | Female | |
| Contact Material | Not Specified | |
| Contact Pattern | Rectangular | |
| Contact Resistance | 100 MΩ | |
| Contact Style | Compression | |
| DIN Conformance | No | |
| Dielectric Withstanding Voltage | 500vac V | |
| Durability | 10000 Cycles | |
| Filter Feature | No | |
| IEC Conformance | No | |
| Insulation Resistance | 1000000000 Ω | |
| Insulator Material | Liquid Crystal Polymer | |
| MIL Conformance | No | |
| Mating Contact Pitch | 0.043 Inch | |
| Mixed Contacts | No | |
| Mounting Option 1 | Locking | |
| Mounting Style | Right Angle | |
| Mounting Type | Board | |
| Number Of Connectors | One | |
| Number Of PCB Rows | 1 | |
| Number of Ports | 1 | |
| Number of Rows Loaded | 1 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -25 °C | |
| Option | General Purpose | |
| PCB Contact Pattern | Rectangular | |
| Polarization Key | Polarized Housing | |
| Rated Current (Signal) | 0.5 A | |
| Reference Standard | Iec | |
| Terminal Pitch | 1.1 Mm | |
| Termination Type | Surface Mount | |
| Total Number of Contacts | 8 |
