503398-1892 by: Molex

PCB Connector, 8 Contact(s), 1 Row(s), Female, Right Angle, 0.043 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle, LOW HALOGEN, ROHS AND REACH COMPLIANT

Part Details for 503398-1892 by Molex

Results Overview of 503398-1892 by Molex

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Audio and Video Systems Energy and Power Systems Medical Imaging Entertainment and Gaming Robotics and Drones

503398-1892 Information

503398-1892 by Molex is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Available Datasheets

Part # Manufacturer Description Datasheet
77311-892-36LF Amphenol Communications Solutions BergStik®, Board to Board connector, Unshrouded vertical Header, Through Hole, Single Row, 36 Positions, 2.54 mm Pitch.

Price & Stock for 503398-1892

Part # Distributor Description Stock Price Buy
DISTI # 09X1353
Newark Connector, Micro Sd, 8Pos, Memory/Card Type:Microsd, Insert & Eject Mechanism:Push-Push, No. Of Contacts:8Contacts, Contact Material:Phosphor Bronze, Contact Plating:Gold Plated Contacts, Product Range:503398 Series Rohs Compliant: Yes |Molex 503398-1892 (Alternate Part Number: 884982801721 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape 3398
  • 1 $1.8600
  • 10 $1.7100
  • 25 $1.7100
  • 50 $1.7100
  • 100 $1.5800
  • 250 $1.5800
$1.5800 / $1.8600 Buy Now
DISTI # 35X2791
Newark Connector, Micro Sd, 8Pos, Product Range:503398 Series, Connector Type:Micro Sd, No. Of Contacts:8Contacts, Contact Material:Phosphor Bronze, Contact Plating:Gold Plated Contacts, Svhc:No Svhc (15-Jan-2019), Contact Rohs Compliant: Yes |Molex 503398-1892 (Alternate Part Number: 884982801721 RoHS: Compliant Min Qty: 2400 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 2,400 $1.4700
  • 4,800 $1.4400
$1.4400 / $1.4700 Buy Now
DISTI # 5033981892
Avnet Americas Memory Card Connector, MicroSD, Push-Push, 8 Contacts, Phosphor Bronze, Gold Plated Contacts - Tape and Reel (Alt: 5033981892) RoHS: Compliant Min Qty: 2400 Package Multiple: 2400 Lead time: 12 Weeks, 0 Days Container: Reel 4800
  • 2,400 $1.6738
  • 4,800 $1.5072
  • 9,600 $1.3587
  • 14,400 $1.2833
  • 19,200 $1.2741
$1.2741 / $1.6738 Buy Now
DISTI # MOL503398-1892
Heilind Electronics MICRO SD PUSH/PUSH NORMAL R SMALL 8C Americas - 5400 in Stock
  • 2,400 $1.6164
  • 4,800 $1.5927
$1.5927 / $1.6164 Buy Now
DISTI # MOL503398-1892.P
Heilind Electronics CUT TAPE - MICRO SD PUSH/ PUSH NORMAL SUP R SMALL 8 Americas - 448 in Stock
  • 1 $2.9520
  • 70 $2.4834
  • 170 $2.4070
  • 330 $2.3705
  • 640 $2.3352
$2.3352 / $2.9520 Buy Now
Bristol Electronics   Min Qty: 2 11070
  • 2 $3.0000
  • 8 $2.2500
  • 24 $1.8750
  • 81 $1.1250
  • 268 $1.0500
  • 716 $0.9900
$0.9900 / $3.0000 Buy Now
Bristol Electronics   1067
RFQ
DISTI # MX-503398-1892
TME Connector: for cards, microSD, push-push, SMT, gold-plated Min Qty: 1 1918
  • 1 $2.2800
  • 10 $1.8200
  • 100 $1.5600
  • 450 $1.4000
  • 500 $1.3900
  • 1,000 $1.3800
$1.3800 / $2.2800 Buy Now
DISTI # MOL503398-1892
Interstate Connecting Components MICRO SD PUSH/PUSH NORMAL R SMALL 8C 1620
  • 2,400 $1.6164
  • 4,800 $1.5927
$1.5927 / $1.6164 Buy Now
DISTI # MOL503398-1892.P
Interstate Connecting Components CUT TAPE - MICRO SD PUSH/ PUSH NORMAL SUP R SMALL 8 104
  • 1 $2.9520
  • 70 $2.4834
  • 170 $2.4070
  • 330 $2.3705
  • 640 $2.3352
$2.3352 / $2.9520 Buy Now
DISTI # SMC-503398-1892
Sensible Micro Corporation AS6081 Certified Vendor, 1 Yr Warranty RoHS: Not Compliant Min Qty: 25 Lead time: 2 Weeks, 0 Days 1207
RFQ
Velocity Electronics Our Stock 410
RFQ
Chip 1 Exchange INSTOCK 24615
RFQ
DISTI # 5033981892
Avnet Asia Memory Card Connector, MicroSD, Push-Push, 8 Contacts, Phosphor Bronze, Gold Plated Contacts (Alt: 5033981892) RoHS: Compliant Min Qty: 14400 Package Multiple: 14400 Lead time: 9 Weeks, 0 Days 0
RFQ
Chip-Germany GmbH   RoHS: Not Compliant 5
RFQ
DISTI # 10191669
TestEquity LLC Molex 503398-1892 1.10mm Pitch microSD Memory Card Connector, Normal Mount Surface Mount, Push-Push Type, 1.28mm Height 7200
  • 1 $1.5600
$1.5600 Buy Now

Part Details for 503398-1892

503398-1892 CAD Models

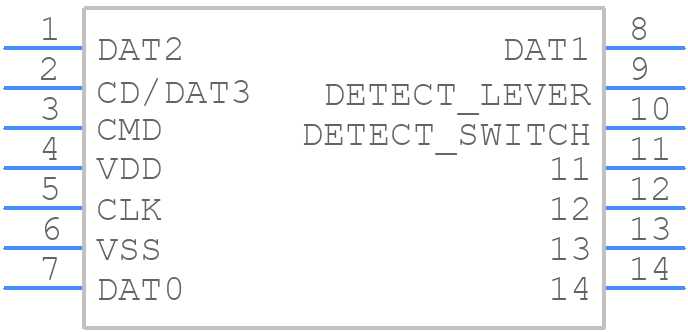

  • Part Symbol

    Part Symbol

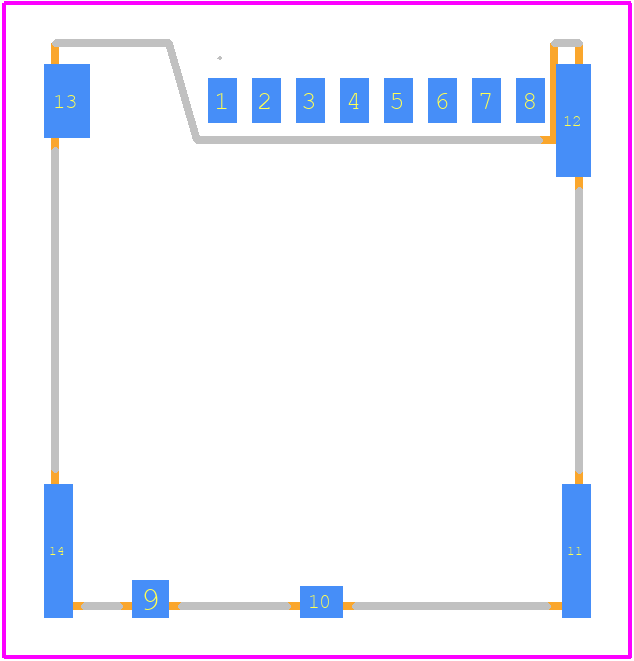

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

503398-1892 Part Data Attributes

Parametric Data
503398-1892 Molex
Buy Now Datasheet
Compare Parts:
503398-1892 Molex PCB Connector, 8 Contact(s), 1 Row(s), Female, Right Angle, 0.043 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle, LOW HALOGEN, ROHS AND REACH COMPLIANT
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MOLEX LLC
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8536.69.40.40
Factory Lead Time 12 Weeks
Samacsys Manufacturer Molex
Body Breadth 0.05 inch
Body Depth 0.553 inch
Body Length 0.516 inch
Body/Shell Style RECEPTACLE
Connector Type PCB CONNECTOR
Contact Finish Mating NOT SPECIFIED
Contact Finish Termination TIN OVER NICKEL
Contact Gender FEMALE
Contact Material NOT SPECIFIED
Contact Pattern RECTANGULAR
Contact Resistance 100 mΩ
Contact Style BELLOWED TYPE
DIN Conformance NO
Dielectric Withstanding Voltage 500VAC V
Durability 10000 Cycles
Filter Feature NO
IEC Conformance NO
Insulation Resistance 1000000000 Ω
Insulator Color BLACK
Insulator Material GLASS FILLED LIQUID CRYSTAL POLYMER
JESD-609 Code e3
MIL Conformance NO
Mating Contact Pitch 0.043 inch
Mixed Contacts NO
Mounting Option 1 LOCKING
Mounting Style RIGHT ANGLE
Mounting Type BOARD
Number Of Connectors ONE
Number Of PCB Rows 1
Number of Ports 1
Number of Rows Loaded 1
Operating Temperature-Max 85 °C
Operating Temperature-Min -25 °C
Option GENERAL PURPOSE
PCB Contact Pattern RECTANGULAR
Plating Thickness 20u inch
Rated Current (Signal) 0.5 A
Reference Standard UL
Terminal Pitch 1.1 mm
Termination Type SURFACE MOUNT
Total Number of Contacts 8
