5040500791 by: Molex

Board Connector, 7 Contact(s), 1 Row(s), Female, Right Angle, 0.059 inch Pitch, Surface Mount Terminal, Locking, Black Insulator,

Part Details for 5040500791 by Molex

Results Overview of 5040500791 by Molex

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Security and Surveillance Space Technology Internet of Things (IoT) Computing and Data Storage Smart Cities Electronic Manufacturing Telecommunications Communication and Networking

5040500791 Information

5040500791 by Molex is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Price & Stock for 5040500791

Part # Distributor Description Stock Price Buy
DISTI # 5040500791
Avnet Americas Conn Shrouded Header 7 POS 1.5mm Solder RA SMD - Tape and Reel (Alt: 5040500791) COO: Malaysia RoHS: Compliant Min Qty: 16200 Package Multiple: 16200 Lead time: 21 Weeks, 0 Days Container: Reel 0
  • 16,200 $0.8202
  • 48,600 $0.6793
  • 113,400 $0.6421
  • 210,600 $0.5939
  • 502,200 $0.5908
$0.5908 / $0.8202 Buy Now
DISTI # MOL504050-0791
Heilind Electronics 1.5 W/B HEADER ASS'Y EMBTP PKG (7P) Americas - 0 in Stock
  • 16,200 $0.7655
$0.7655 Buy Now
DISTI # 000000000004046553
Sager Headers & Wire Housings 1.50MM HDR 1X07P RA Min Qty: 16200 0
  • 16,200 $0.7779
$0.7779 Buy Now
DISTI # 5040500791
Avnet Abacus Conn Shrouded Header 7 POS 15mm Solder RA SMD - Tape and Reel (Alt: 5040500791) RoHS: Compliant Min Qty: 2700 Package Multiple: 2700 Lead time: 22 Weeks, 0 Days Container: Reel Abacus - 0
Buy Now
DISTI # 5040500791
Avnet Abacus Conn Shrouded Header 7 POS 15mm Solder RA SMD - Tape and Reel (Alt: 5040500791) RoHS: Compliant Min Qty: 16200 Package Multiple: 16200 Lead time: 21 Weeks, 0 Days Container: Reel Abacus - 0
Buy Now

US Tariff Estimator: 5040500791 by Molex

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

5040500791
Molex
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for 5040500791

5040500791 CAD Models

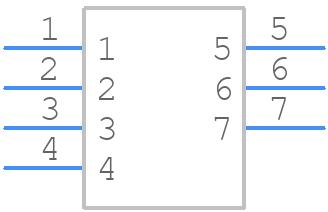

  • Part Symbol

    schematic symbol

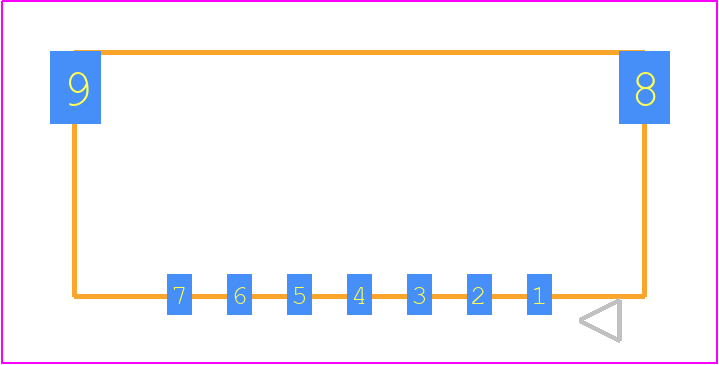

  • Footprint

    pcb footprint

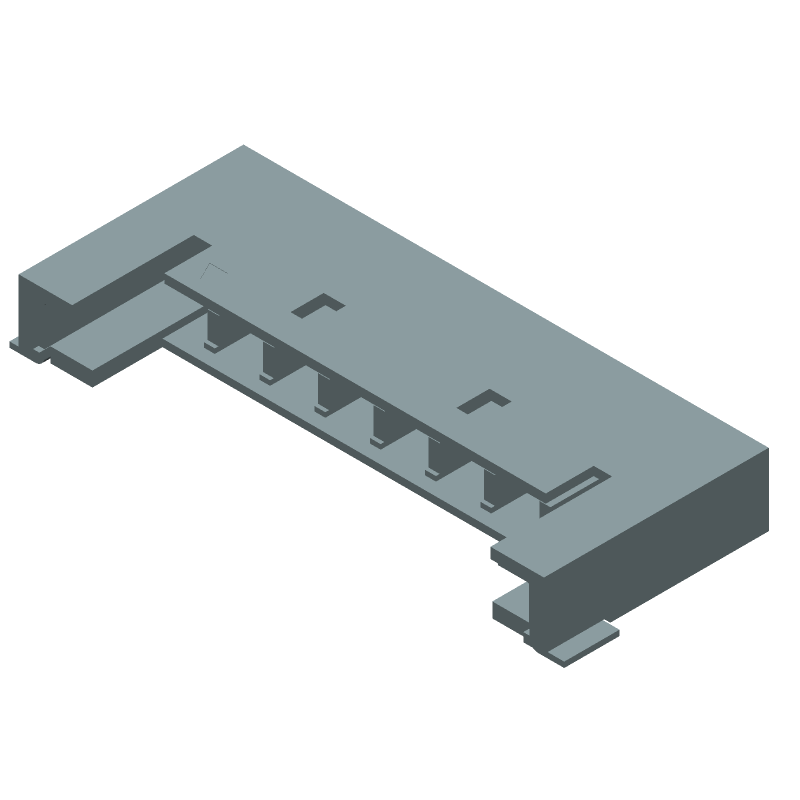

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

5040500791 Part Data Attributes

Parametric Data
5040500791 Molex
Buy Now Datasheet
Compare Parts:
5040500791 Molex Board Connector, 7 Contact(s), 1 Row(s), Female, Right Angle, 0.059 inch Pitch, Surface Mount Terminal, Locking, Black Insulator,
Rohs Code Yes
Part Life Cycle Code Active
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8536.69.40.40
Factory Lead Time 21 Weeks
Body Breadth 0.079 Inch
Body Depth 0.24 Inch
Body Length 0.561 Inch
Connector Type Board Connector
Contact Finish Mating Not Specified
Contact Finish Termination Gold (Au) - With Nickel (Ni) Barrier
Contact Gender Female
Contact Material Not Specified
Contact Pattern Rectangular
Contact Resistance 20 MΩ
Filter Feature No
Insulation Resistance 1000000000 Ω
Insulator Color Black
JESD-609 Code e4
Mating Contact Pitch 0.059 Inch
Mixed Contacts No
Mounting Option 1 Locking
Mounting Style Right Angle
Mounting Type Board
Number Of Connectors One
Number Of PCB Rows 1
Number of Rows Loaded 1
Operating Temperature-Max 85 °C
Operating Temperature-Min -25 °C
PCB Contact Pattern Rectangular
Polarization Key Polarized Housing
Reference Standard Ul
Terminal Pitch 1.4986 Mm
Termination Type Surface Mount
Total Number of Contacts 7

Alternate Parts for 5040500791

This table gives cross-reference parts and alternative options found for 5040500791. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 5040500791, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
26-4801-213-3G Astron Check for Price Board Connector, 26 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Surface Mount Terminal, Latch & Eject, Black Insulator, Receptacle 5040500791 vs 26-4801-213-3G
0157-26-02 Singatron Enterprises Co Check for Price Board Connector, 26 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Surface Mount Terminal, Guide Slot, Receptacle 5040500791 vs 0157-26-02
M22-078030T1346 Harwin Check for Price Board Connector, 26 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle 5040500791 vs M22-078030T1346
M22-078030T1305 Harwin Check for Price Board Connector, 26 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle 5040500791 vs M22-078030T1305
8614-00-26-2-YO-1-090-LF Amphenol FCi Check for Price Board Connector, 26 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle 5040500791 vs 8614-00-26-2-YO-1-090-LF
26-113-213-5G Astron Check for Price Board Connector, 26 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Eject Lever, Black Insulator, Receptacle 5040500791 vs 26-113-213-5G
BHRE26VUSMT.47730 Adam Technologies Inc Check for Price Board Connector, 26 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Locking 5040500791 vs BHRE26VUSMT.47730
0941035106 Molex Check for Price Board Connector, 7 Contact(s), 1 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, 5040500791 vs 0941035106
IL-Y-07S-S15C3 Japan Aviation Electronics Industry Limited Check for Price Board Connector, 7 Contact(s), 1 Row(s), Female, 0.059 inch Pitch, Brown Insulator, Plug 5040500791 vs IL-Y-07S-S15C3
