5055780871 Information
5055780871 by Molex is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.
Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.
Price & Stock for 5055780871
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
5055780871
|
Avnet Americas | Pin Header, Signal, 2 mm, 1 Rows, 8 Contacts, Surface Mount Right Angle - Tape and Reel (Alt: 5055780871) COO: Malaysia RoHS: Compliant Min Qty: 900 Package Multiple: 900 Lead time: 29 Weeks, 0 Days Container: Reel | 2700 |
|
$0.3569 / $0.5074 | Buy Now |
|
DISTI #
MOL505578-0871
|
Heilind Electronics | 2.0MM SURF MT RA HDR,8CKT MICRO-LOCK+,WTB,BLK | Americas - 671 in Stock |
|
$0.5172 / $0.6170 | Buy Now |
|
DISTI #
000000000005539534
|
Sager | Headers & Wire Housings 2.0MM HDR 08P RA BLK Min Qty: 2700 | 0 |
|
$0.4514 / $0.5513 | Buy Now |
|
DISTI #
5055780871
|
Avnet Abacus | Pin Header Signal 2 mm 1 Rows 8 Contacts Surface Mount Right Angle - Tape and Reel (Alt: 5055780871) RoHS: Compliant Min Qty: 2700 Package Multiple: 2700 Lead time: 19 Weeks, 0 Days Container: Reel | Abacus - 0 |
|
Buy Now | |
|
|
LCSC | Black 8P Tin 2mm Brass 250V 1 3.4A -40+105 SMDP2mmSurface MountRight Angle Headers Male Pins RoHS | 10 |
|
$1.0988 / $1.1608 | Buy Now |
US Tariff Estimator: 5055780871 by Molex
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for 5055780871
5055780871 CAD Models
-

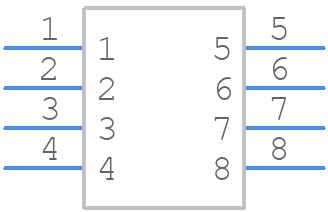

Part Symbol
-

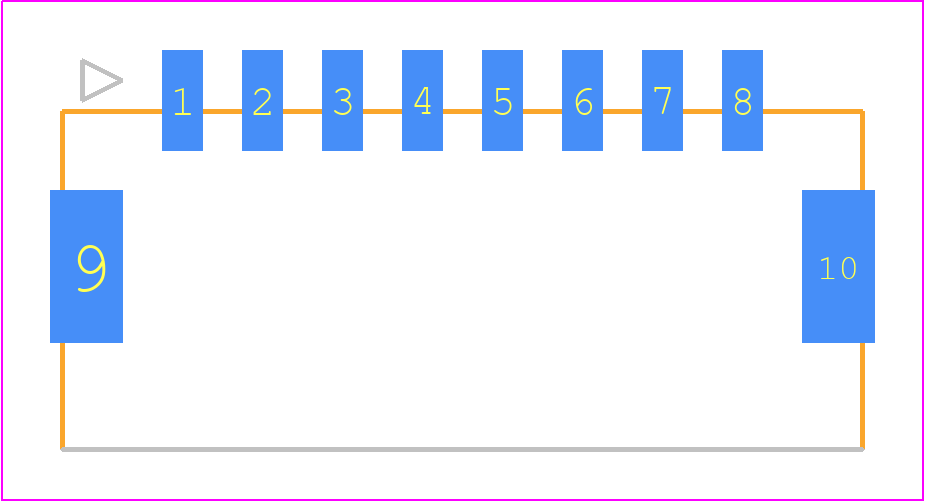

Footprint
-

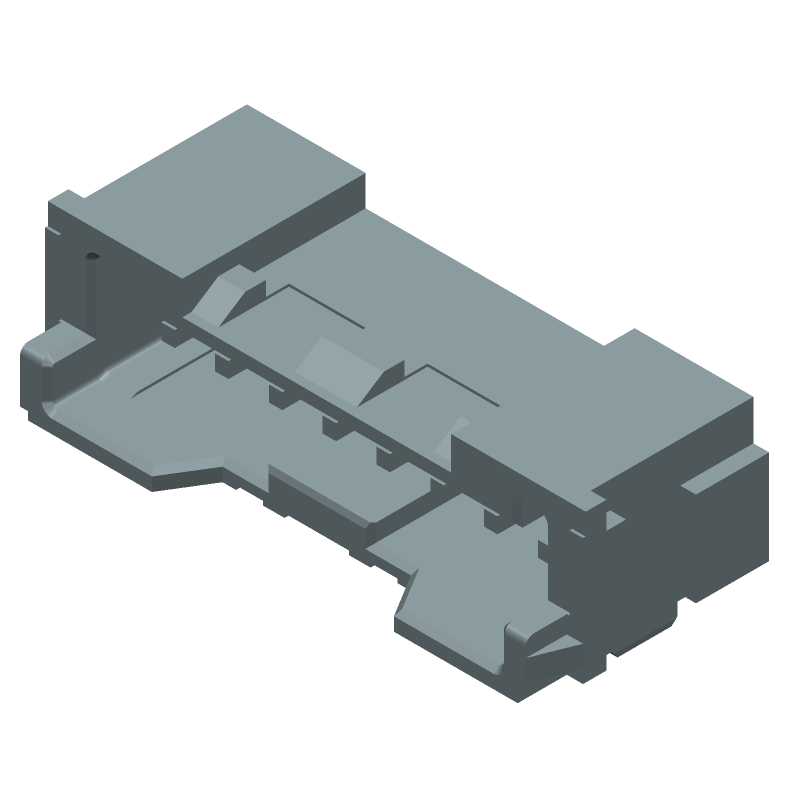

3D Model
