Part Details for 5179031-4 by TE Connectivity
Results Overview of 5179031-4 by TE Connectivity
- Distributor Offerings: (15 listings)
- Number of FFF Equivalents: (6 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (4 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
5179031-4 Information
5179031-4 by TE Connectivity is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.
Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.
Price & Stock for 5179031-4
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
76AC8427
|
Newark | Connectors 100P 8Mm Plug Stak Hight 8 12 16Mm |Amp Te Connectivity 5179031-4 RoHS: Not Compliant Min Qty: 20 Package Multiple: 1 Date Code: 0 Container: Bulk | 18133 |
|
$5.1000 / $6.2400 | Buy Now |
|
DISTI #
5179031-4
|
Avnet Americas | Conn Fine Pitch Connector PL 100 POS 0.8mm Solder ST SMD Tube - Rail/Tube (Alt: 5179031-4) COO: China RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 5 Weeks, 0 Days Container: Tube | 0 |
|
$3.6763 / $5.2653 | Buy Now |
|
DISTI #
71353848
|
RS | SOLIS SP SPD22-16COM22-18MIL1978 Min Qty: 3000 Package Multiple: 1 Container: Bulk | 0 |
|
$9.7300 / $10.5800 | RFQ |
|
DISTI #
AMP5179031-4
|
Heilind Electronics | 0.8FHP08H.510008/SnTU | Americas - 0 in Stock |
|
$4.9143 | Buy Now |
|
DISTI #
51790314-TEC
|
TME | Connector: PCB to PCB Min Qty: 20 | 9675 |
|
$4.6982 / $6.8783 | Buy Now |
|
DISTI #
AMP5179031-4
|
Interstate Connecting Components | 0.8FHP08H.510008/SnTU | 0 |
|
$4.9143 | Buy Now |
|
|
Powell Electronics | Board to Board & Mezzanine Connectors Min Qty: 20 | 11980 |
|
$4.9200 / $5.7100 | Buy Now |
|
DISTI #
5179031-4
|
Richardson RFPD | CARD-EDGE AND BACKPLANE CONNECTOR RoHS: Compliant Min Qty: 1 | 0 |
|
RFQ | |
|
DISTI #
000000000001455692
|
Sager | Board to Board & Mezzanine Connectors 100P 8MM PLUG STAK HIGHT 8 12 16mm Min Qty: 3000 | 0 |
|
$6.1400 | Buy Now |
|
|
Chip 1 Exchange | INSTOCK | 28512 |
|
RFQ |
US Tariff Estimator: 5179031-4 by TE Connectivity
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for 5179031-4
5179031-4 CAD Models
-

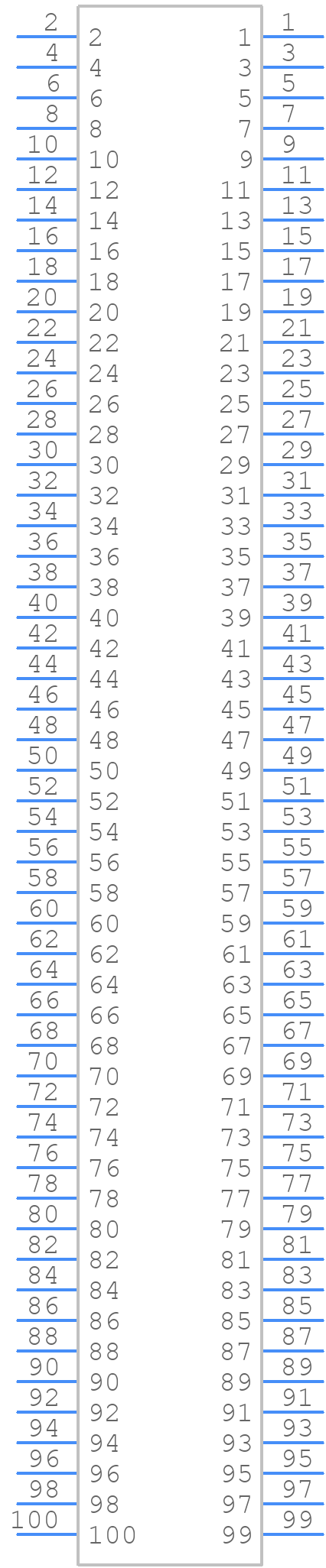

Part Symbol
-

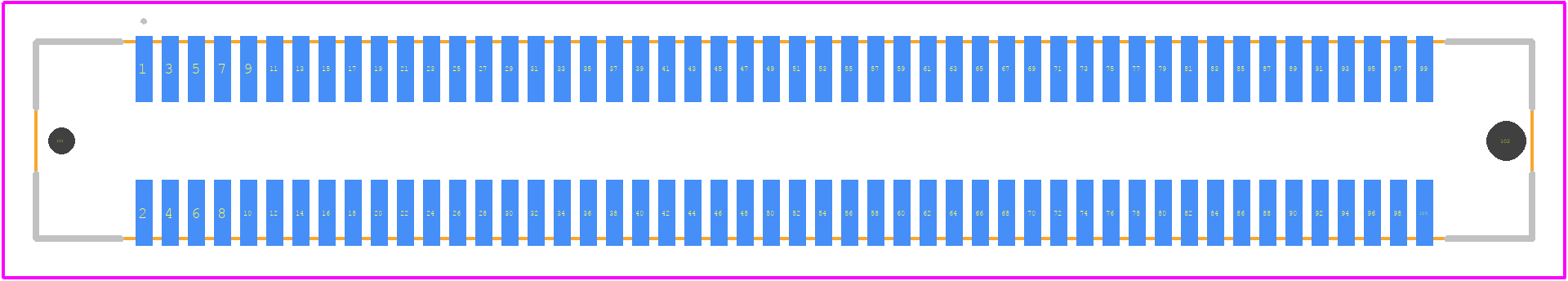

Footprint
-

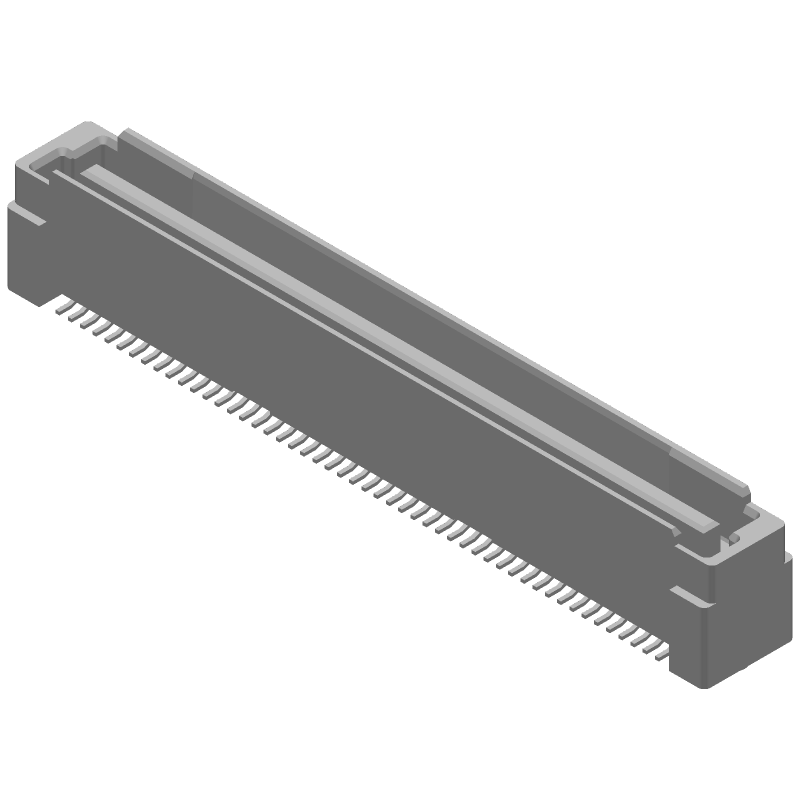

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
5179031-4 Part Data Attributes
|
|
5179031-4
TE Connectivity
Buy Now
Datasheet
|
Compare Parts:
5179031-4
TE Connectivity
0.8FH,P08H.5,100,08/Sn,TU
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TYCO ELECTRONICS AMP | |
| Package Description | ROHS COMPLIANT | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.69.40.40 | |
| Factory Lead Time | 6 Weeks, 2 Days | |
| Samacsys Manufacturer | TE Connectivity | |
| Additional Feature | ROHS AND ELV COMPLIANT | |
| Body Breadth | 0.236 inch | |
| Body Depth | 0.315 inch | |
| Body Length | 1.803 inch | |
| Body/Shell Style | PLUG | |
| Connector Type | BOARD STACKING CONNECTOR | |
| Contact Finish Mating | NOT APPLICABLE | |
| Contact Gender | MALE | |
| Contact Material | NOT APPLICABLE | |
| Contact Pattern | RECTANGULAR | |
| Contact Resistance | 30 mΩ | |
| Contact Style | CENTRONIC | |
| DIN Conformance | NO | |
| Dielectric Withstanding Voltage | 500VAC V | |
| Durability | 100 Cycles | |
| EMI Shielded | NO | |
| Empty Shell | YES | |
| Filter Feature | NO | |
| IEC Conformance | NO | |
| Insertion Force-Max | .8896 N | |
| Insulation Resistance | 2000000 Ω | |
| Insulator Color | NATURAL | |
| Insulator Material | LIQUID CRYSTAL POLYMER | |
| MIL Conformance | NO | |
| Mains Connector Rating | .5A | |
| Mating Contact Pitch | 0.031 inch | |
| Mating Information | MULTIPLE MATING PARTS AVAILABLE | |
| Mixed Contacts | NO | |
| Mounting Option 1 | LOCKING | |
| Mounting Style | STRAIGHT | |
| Mounting Type | BOARD | |
| Number Of Connectors | ONE | |
| Number Of PCB Rows | 2 | |
| Number of Ports | 1 | |
| Number of Rows Loaded | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Option | GENERAL PURPOSE | |
| PCB Contact Pattern | RECTANGULAR | |
| PCB Contact Row Spacing | 4.3942 mm | |
| Panel Mount | NO | |
| Plating Thickness | 8u inch | |
| Polarization Key | POLARIZED | |
| Rated Current (Signal) | 0.5 A | |
| Reference Standard | UL | |
| Terminal Pitch | 0.8 mm | |
| Termination Type | SURFACE MOUNT | |
| Total Number of Contacts | 100 | |
| UL Flammability Code | 94V-0 | |
| Withdrawl Force-Min | .1112 N |
Alternate Parts for 5179031-4
This table gives cross-reference parts and alternative options found for 5179031-4. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 5179031-4, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| 6123002-4 | TE Connectivity | $6.9110 | 0.8FH,P08H.5,100,30/Sn,TU | 5179031-4 vs 6123002-4 |
| 6123001-4 | TE Connectivity | $8.8609 | 0.8FH,P08H.5,100,30/Sn,TR,SC | 5179031-4 vs 6123001-4 |
| 179031-4 | TE Connectivity | Check for Price | 100 CONTACT(S), MALE, STRAIGHT BOARD STACKING CONNECTOR, SURFACE MOUNT, PLUG | 5179031-4 vs 179031-4 |
| 1123001-4 | TE Connectivity | Check for Price | 100 CONTACT(S), MALE, STRAIGHT BOARD STACKING CONNECTOR, SURFACE MOUNT, PLUG | 5179031-4 vs 1123001-4 |
| 1123002-4 | TE Connectivity | Check for Price | 100 CONTACT(S), MALE, STRAIGHT BOARD STACKING CONNECTOR, SURFACE MOUNT, PLUG | 5179031-4 vs 1123002-4 |
| 6-179230-4 | TE Connectivity | Check for Price | 100 CONTACT(S), MALE, STRAIGHT BOARD STACKING CONNECTOR, SURFACE MOUNT, PLUG | 5179031-4 vs 6-179230-4 |
5179031-4 Frequently Asked Questions (FAQ)
-
The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals.
-
Yes, the 5179031-4 connector is designed to withstand high-vibration environments, making it suitable for use in industrial, automotive, and aerospace applications.
-
The operating temperature range for the 5179031-4 connector is -40°C to 125°C (-40°F to 257°F).
-
Yes, the 5179031-4 connector is designed for automated assembly and can be easily integrated into high-volume manufacturing processes.
-
The 5179031-4 connector has a mating cycle life of at least 500 cycles, ensuring reliable connections over an extended period.
