52559-4052 by: Molex

Card Edge Connector, 40 Contact(s), 1 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, ROHS AND REACH COMPLIANT

Part Details for 52559-4052 by Molex

Results Overview of 52559-4052 by Molex

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Space Technology Aerospace and Defense Transportation and Logistics Renewable Energy Automotive Robotics and Drones

52559-4052 Information

52559-4052 by Molex is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Available Datasheets

Part # Manufacturer Description Datasheet
10137784-05212LF Amphenol Communications Solutions Minitek® Pwr 4.2 HCC, Single Row, Right Angle Through Hole Header, Nylon 66, Gold Flash plating, Natural Color, 5 Positions, Non GW Compatible, Tray packing.
68405-272HLF Amphenol Communications Solutions BergStik®, Board to Board connector, Unshrouded Right Angled Header, Through Hole, Double Row, 72 Positions, 2.54 mm (0.100in)Pitch.
51940-529AULF Amphenol Communications Solutions PwrBlade®, Power Supply Connectors, 8P 24S Vertical Receptacle.

Price & Stock for 52559-4052

Part # Distributor Description Stock Price Buy
DISTI # 64T4832
Newark Ffc/Fpc Board Connector, 52559 Series, Surface Mount, Receptacle, 40, 0.5 Mm Rohs Compliant: Yes |Molex 52559-4052 (Alternate Part Number: 822348533732 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape 677
  • 1 $5.3400
  • 10 $4.7200
  • 25 $4.4800
  • 50 $4.2900
  • 100 $4.1000
  • 250 $3.8700
  • 500 $3.8500
  • 1,000 $3.5400
$3.5400 / $5.3400 Buy Now
DISTI # 67X4877
Newark Ffc/Fpc Board Connector, Easy-On 52559 Series, Surface Mount, Receptacle, 40, 0.5 Mm Rohs Compliant: Yes |Molex 52559-4052 (Alternate Part Number: 822348533732 RoHS: Compliant Min Qty: 1000 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 1,000 $2.3300
  • 2,000 $2.2800
$2.2800 / $2.3300 Buy Now
DISTI # 0525594052
Avnet Americas FFC / FPC Board Connector, 0.5 mm, 40 Contacts, Receptacle, Easy-On 52559, Surface Mount - Tape and Reel (Alt: 0525594052) COO: Malaysia RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 11 Weeks, 0 Days Container: Reel 5000
  • 1,000 $2.9386
  • 8,000 $2.5222
  • 20,000 $2.4140
  • 40,000 $2.3927
  • 100,000 $2.3804
$2.3804 / $2.9386 Buy Now
DISTI # 70606196
RS 52559 SERIES 0.5MM PITCH 40 WAY STRAIGHT MALE FPC CONNECTOR, ZIF TOP CONTACT Min Qty: 5 Package Multiple: 1 Container: Bulk 0
  • 5 $6.3200
  • 25 $5.8000
  • 50 $5.0400
$5.0400 / $6.3200 RFQ
DISTI # MOL52559-4052
Heilind Electronics 0.5 FPC ZIF SMT ST 40CKT EMBS P PKG Americas - 0 in Stock
  • 3,000 $2.9386
$2.9386 Buy Now
Bristol Electronics   278
RFQ
DISTI # MX-52559-4052
TME Connector: FFC/FPC, gold-plated, SMT, 500mA, 50V, Slider, PIN: 40 Min Qty: 1 661
  • 1 $3.8500
  • 50 $3.5800
  • 75 $3.5000
  • 100 $3.4000
  • 500 $3.1700
$3.1700 / $3.8500 Buy Now
DISTI # 52559-4052
IBS Electronics EASY-ON FFC/FPC CONNECTOR, 0.50MM PITCH, SLIDER SERIES, VERTICAL, 3.90MM HEIGHT, 40 CIRCUITS, GOLD PLATING Min Qty: 1000 Package Multiple: 1 11000
  • 1,000 $1.4250
  • 8,000 $1.2750
$1.2750 / $1.4250 Buy Now
Powell Electronics Connector Min Qty: 1000 7260
  • 1,000 $3.4300
  • 3,000 $3.1100
  • 8,000 $2.7300
$2.7300 / $3.4300 Buy Now
Chip 1 Exchange INSTOCK 15600
RFQ

Part Details for 52559-4052

52559-4052 CAD Models

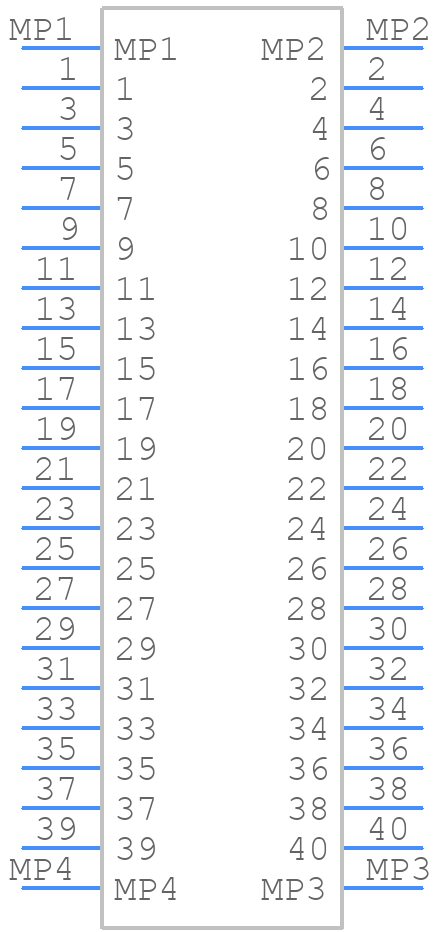

  • Part Symbol

    schematic symbol

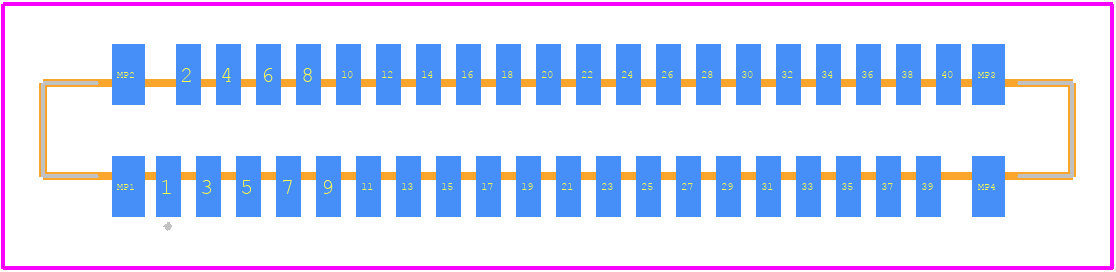

  • Footprint

    pcb footprint

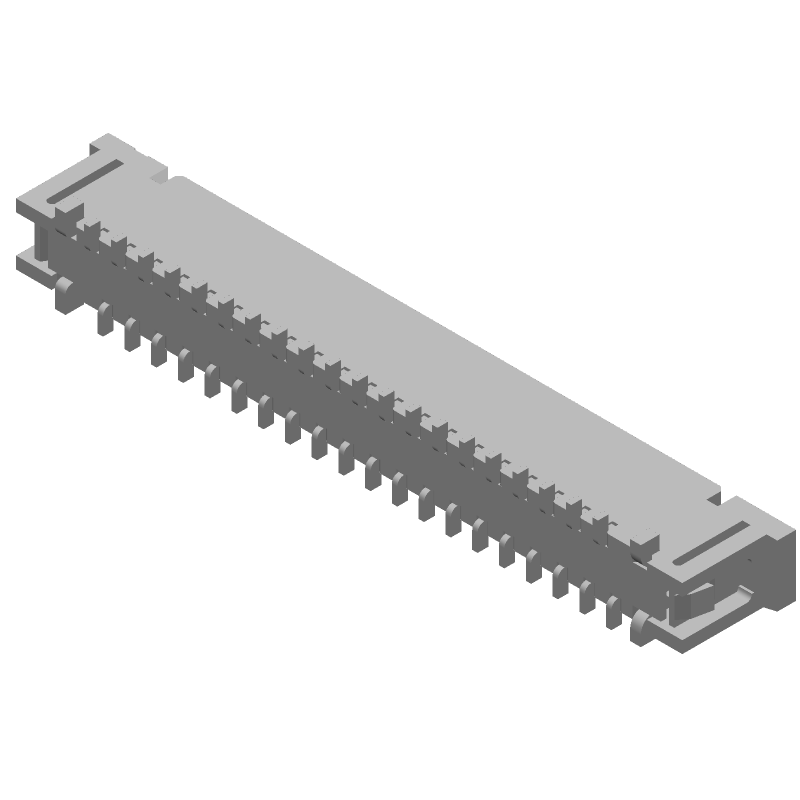

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

52559-4052 Part Data Attributes

Parametric Data
52559-4052 Molex
Buy Now Datasheet
Compare Parts:
52559-4052 Molex Card Edge Connector, 40 Contact(s), 1 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, ROHS AND REACH COMPLIANT
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Package Description Rohs And Reach Compliant
Reach Compliance Code Compliant
ECCN Code EAR99
Factory Lead Time 11 Weeks
Additional Feature Easy-On
Board Mounting Option Fitting Nail
Body Breadth 0.118 Inch
Body Depth 0.154 Inch
Body Length 1.012 Inch
Connector Type Ffc/Fpc Connector
Contact Finish Mating Not Specified
Contact Finish Termination Tin (Sn)
Contact Gender Female
Contact Material Phosphor Bronze
Contact Pattern Rectangular
Contact Resistance 20 MΩ
Contact Style Bellowed Type
DIN Conformance No
Dielectric Withstanding Voltage 250vac V
Durability 20 Cycles
Filter Feature No
IEC Conformance No
Insertion Force-Max Zif N
Insulation Resistance 50000000 Ω
Insulator Material Polyamide
JESD-609 Code e3
MIL Conformance No
Mating Contact Pitch 0.020 Inch
Mixed Contacts No
Mounting Option 1 Locking
Mounting Style Straight
Mounting Type Board
Number Of Connectors One
Number Of PCB Rows 2
Number of Rows Loaded 1
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Option General Purpose
PCB Contact Pattern Staggered
PCB Contact Row Spacing 2.8 Mm
Plating Thickness 3.93u Inch
Rated Current (Signal) 0.5 A
Reference Standard Ul
Terminal Pitch 1 Mm
Termination Type Surface Mount
Total Number of Contacts 40
UL Flammability Code 94V-0
Withdrawl Force-Min Zif N

Alternate Parts for 52559-4052

This table gives cross-reference parts and alternative options found for 52559-4052. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 52559-4052, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
52559-4033 Molex $0.4110 Card Edge Connector, 40 Contact(s), 1 Row(s), Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, Natural Insulator, 52559-4052 vs 52559-4033
52559-4092 Molex $0.6572 Card Edge Connector, 40 Contact(s), 1 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Fcc Retnn Dvc, 52559-4052 vs 52559-4092
52559-4053 Molex Check for Price Card Edge Connector, 40 Contact(s), 1 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, LEAD FREE 52559-4052 vs 52559-4053
52559-4019 Molex Check for Price Card Edge Connector, 40 Contact(s), 1 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, Beige Insulator, LEAD FREE 52559-4052 vs 52559-4019
52559-4079 Molex Check for Price Card Edge Connector, 40 Contact(s), 1 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, LEAD FREE 52559-4052 vs 52559-4079
52559-4072 Molex Check for Price Card Edge Connector, 40 Contact(s), 1 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, LEAD FREE 52559-4052 vs 52559-4072
52559-4017 Molex Check for Price Card Edge Connector, 40 Contact(s), 1 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, Beige Insulator 52559-4052 vs 52559-4017
52559-4070 Molex Check for Price Card Edge Connector, 40 Contact(s), 1 Row(s), Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, Beige Insulator 52559-4052 vs 52559-4070
Part Number Manufacturer Composite Price Description Compare
DS1020-09-40VBT1B-R Ningbo connfly electronic CO LTD $0.4221 FFC/FPC Connector, 40 Contact(s), 1 Row(s), Female, Right Angle, 0.02 inch Pitch, Surface Mount Terminal, Locking, Ivory Insulator, 52559-4052 vs DS1020-09-40VBT1B-R
FH19C-40S-0.5SH(44) Hirose Electric Co Ltd Check for Price FFC/FPC Connector, 40 Contact(s), 1 Row(s), Female, Right Angle, 0.020 inch Pitch, Surface Mount Terminal, Locking, Beige Insulator, Receptacle, 52559-4052 vs FH19C-40S-0.5SH(44)
IMSA-11501S-40B-GFN1 Iriso Electronics Co Ltd Check for Price FFC/FPC Connector, 40 Contact(s), 1 Row(s), Female, Right Angle, 0.02 inch Pitch, Surface Mount Terminal, Locking, Socket, 52559-4052 vs IMSA-11501S-40B-GFN1
2004850040 Molex Check for Price FFC/FPC Connector, 40 Contact(s), 1 Row(s), Female, Right Angle, 0.019 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, 52559-4052 vs 2004850040
equivalents icon

52559-4052 Related Parts

52559-4052 Frequently Asked Questions (FAQ)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.4 in-lbs).

  • Yes, the 52559-4052 is designed to withstand vibrations and can be used in applications with moderate to high vibration levels.

  • The operating temperature range for the 52559-4052 is -40°C to 105°C (-40°F to 221°F).

  • Yes, the 52559-4052 is designed for outdoor use and can withstand exposure to moisture and humidity.

  • No, the 52559-4052 is designed for use with wire gauges 20 AWG to 24 AWG. Using a larger wire gauge may not provide a secure connection.
