52885-1674 by: Molex

Board Stacking Connector, 160 Contact(s), 2 Row(s), Female, Straight, 0.025 inch Pitch, Surface Mount Terminal, Locking, White Insulator, Receptacle, LEAD FREE

Part Details for 52885-1674 by Molex

Results Overview of 52885-1674 by Molex

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Education and Research Internet of Things (IoT) Computing and Data Storage Aerospace and Defense Healthcare Telecommunications Automotive

52885-1674 Information

52885-1674 by Molex is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Available Datasheets

Part # Manufacturer Description Datasheet
69167-406HLF Amphenol Communications Solutions PV Shrouded Header, Wire to Board connector, 2 Wall Shrouded Header - Through Hole - Single row - 6 Positions 2.54mm - Vertical.
69167-415HLF Amphenol Communications Solutions PV Shrouded Header, Wire to Board connector, 2 Wall Shrouded Header - Through Hole - Single row - 15 Positions 2.54mm - Vertical.
69167-412HLF Amphenol Communications Solutions PV Shrouded Header, Wire to Board connector, 2 Wall Shrouded Header - Through Hole - Single row - 12 Positions 2.54mm - Vertical.

Price & Stock for 52885-1674

Part # Distributor Description Stock Price Buy
DISTI # 67X4878
Newark Stacking Board Connector, Slimstack 52885 Series, Receptacle, 0.635 Mm, 160, Surface Mount Rohs Compliant: Yes |Molex 52885-1674 (Alternate Part Number: 822348246229 RoHS: Compliant Min Qty: 1000 Package Multiple: 1 Date Code: 0 Container: Reel 1000
  • 1,000 $5.0900
  • 2,000 $4.9700
$4.9700 / $5.0900 Buy Now
DISTI # 06X9349
Newark Stacking Board Connector, Slimstack 52885 Series, Receptacle, 0.635 Mm, 160, Surface Mount Rohs Compliant: Yes |Molex 52885-1674 (Alternate Part Number: 822348246229 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape 52
  • 1 $1.0700
  • 5 $1.0700
  • 10 $1.0700
  • 25 $1.0700
  • 50 $1.0700
  • 100 $1.0700
  • 250 $1.0700
$1.0700 Buy Now
DISTI # 0528851674
Avnet Americas Conn Stacking Receptacle 160 POS 6mm to 10mm Stack Height 0.635mm Solder ST Surface Mount - Tape and Reel (Alt: 0528851674) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 15 Weeks, 0 Days Container: Reel 0
  • 2,000 $6.9840
  • 4,000 $5.8445
  • 8,000 $5.6373
  • 12,000 $5.2496
  • 16,000 $5.1447
$5.1447 / $6.9840 Buy Now
DISTI # MOL52885-1674
Heilind Electronics 0.635 BTB REC HSG ASSY 160CKT EMBSTP PKG Americas - 0 in Stock
  • 2,000 $6.6759
$6.6759 Buy Now
DISTI # 528851674-MOL-0
TME Connector: PCB to PCB Min Qty: 1000 1000
  • 1,000 $3.9937
$3.9937 Buy Now

Part Details for 52885-1674

52885-1674 CAD Models

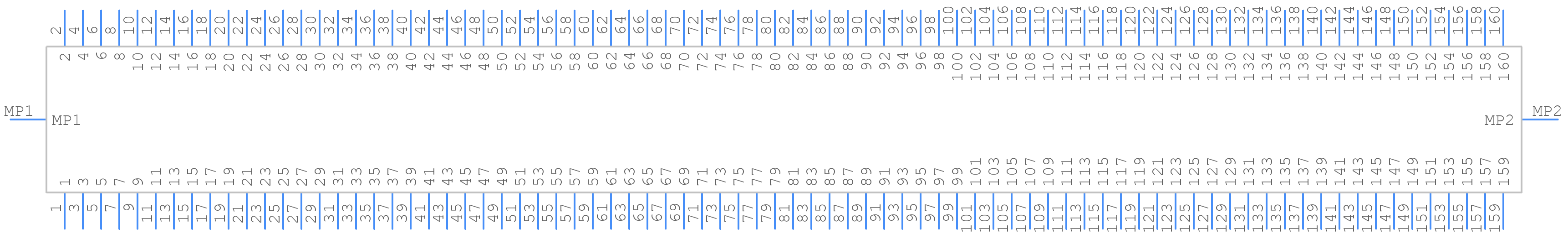

  • Part Symbol

    Part Symbol

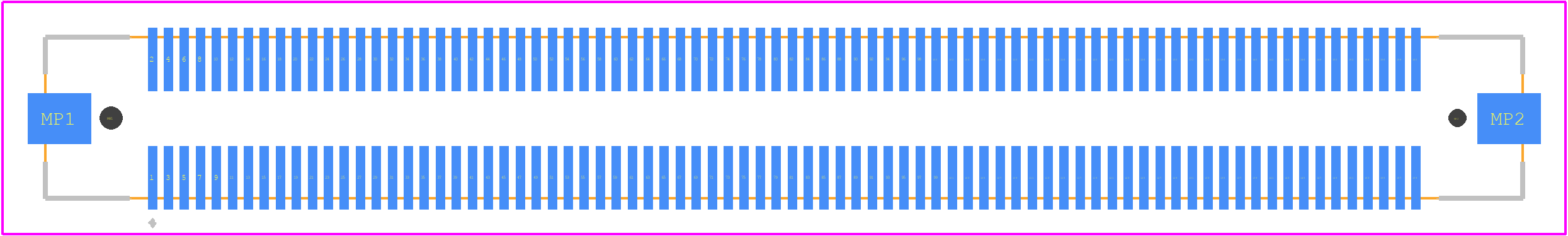

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

52885-1674 Part Data Attributes

Parametric Data
52885-1674 Molex
Buy Now Datasheet
Compare Parts:
52885-1674 Molex Board Stacking Connector, 160 Contact(s), 2 Row(s), Female, Straight, 0.025 inch Pitch, Surface Mount Terminal, Locking, White Insulator, Receptacle, LEAD FREE
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MOLEX LLC
Package Description LEAD FREE
Reach Compliance Code compliant
Factory Lead Time 15 Weeks
Samacsys Manufacturer Molex
Board Mounting Option PEG
Body Breadth 0.252 inch
Body Depth 0.157 inch
Body Length 2.31 inch
Body/Shell Style RECEPTACLE
Connector Type BOARD STACKING CONNECTOR
Contact Finish Mating NOT SPECIFIED
Contact Finish Termination Tin (Sn)
Contact Gender FEMALE
Contact Material PHOSPHOR BRONZE
Contact Pattern RECTANGULAR
Contact Resistance 40 mΩ
DIN Conformance NO
Filter Feature NO
IEC Conformance NO
Insertion Force-Max .695 N
Insulation Resistance 1000000000 Ω
Insulator Color WHITE
Insulator Material GLASS FILLED LIQUID CRYSTAL POLYMER
JESD-609 Code e3
MIL Conformance NO
Mating Contact Pitch 0.025 inch
Mixed Contacts NO
Mounting Option 1 LOCKING
Mounting Style STRAIGHT
Mounting Type BOARD
Number Of Connectors ONE
Number Of PCB Rows 2
Number of Rows Loaded 2
Operating Temperature-Max 105 °C
Operating Temperature-Min -55 °C
Option GENERAL PURPOSE
PCB Contact Pattern RECTANGULAR
PCB Contact Row Spacing 2.2098 mm
Plating Thickness 9.8u inch
Rated Current (Signal) 0.5 A
Reference Standard UL
Terminal Pitch 0.635 mm
Termination Type SURFACE MOUNT
Total Number of Contacts 160
UL Flammability Code 94V-0
Withdrawl Force-Min .1112 N
