53261-0671 Information
53261-0671 by Molex is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.
Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| 88953-261LF | Amphenol Communications Solutions | Metral® Board Connectors, Backplane Connectors, 4 Row Signal Header, Straight, Solder-to-Board, Wide body. | |
| 134-5326-11H | Amphenol Communications Solutions | Paladin, 5-Pair, 6 Column, Left End Wall, Right Angle Header, 1.5mm Wipe, APP | |
| HS30753261 | Amphenol Communications Solutions | Backplane connectors,cable backplane ,Paladin 4X8 Cable, 28 AWG, 40 GHz |
Price & Stock for 53261-0671
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
93K4246
|
Newark | Connector, Header, 6Pos, 1Row, 1.25Mm, Connector Systems:Signal, Pitch Spacing:1.25Mm, No. Of Rows:1Rows, No. Of Contacts:6Contacts, Contact Termination Type:Surface Mount Right Angle, Product Range:Picoblade 53261 Series Rohs Compliant: Yes |Molex 53261-0671 (Alternate Part Number: 822348161096 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 18138 |
|
$0.3420 / $0.3730 | Buy Now |
|
DISTI #
67X4887
|
Newark | Wire-To-Board Connector, Picoblade 53261 Series, Surface Mount, Header, 6, 1.25 Mm Rohs Compliant: Yes |Molex 53261-0671 (Alternate Part Number: 822348161096 RoHS: Compliant Min Qty: 1600 Package Multiple: 1 Date Code: 0 Container: Reel | 2600 |
|
$0.5070 | Buy Now |
|
DISTI #
0532610671
|
Avnet Americas | Pin Header, Signal, 1.25 mm, 1 Rows, 6 Contacts, Surface Mount Right Angle, PicoBlade 53261 - Tape and Reel (Alt: 0532610671) COO: Malaysia RoHS: Compliant Min Qty: 1600 Package Multiple: 1600 Lead time: 12 Weeks, 0 Days Container: Reel | 20800 |
|
$0.2816 / $0.4004 | Buy Now |
|
DISTI #
93K4246
|
Avnet Americas | Pin Header, Signal, 1.25 mm, 1 Rows, 6 Contacts, Surface Mount Right Angle, PicoBlade 53261 - Product that comes on tape, but is not reeled (Alt: 93K4246) COO: Malaysia RoHS: Compliant Min Qty: 1 Package Multiple: 1 Container: Ammo Pack | 182 Partner Stock |
|
$0.5980 / $0.7190 | Buy Now |
|
DISTI #
70266926
|
RS | CONN, RECT, HEADER, 1.25 MM PITCH, PCB, 6 CIR, RT ANGLE, SMT, PICOBLADE, LF Min Qty: 1 Package Multiple: 1 Lead time: 3 Weeks, 0 Days Container: Bulk | 15 |
|
$0.2100 | Buy Now |
|
DISTI #
MOL53261-0671.Q
|
Heilind Electronics | PCB HEADER, 1.25MM, 6 POS, 1 R | Americas - 4800 in Stock |
|
$0.3329 / $0.3525 | Buy Now |
|
DISTI #
MOL53261-0671.P
|
Heilind Electronics | CUT TAPE | Americas - 2411 in Stock |
|
$0.5423 / $0.6850 | Buy Now |
|
DISTI #
MOL53261-0671
|
Heilind Electronics | EMBOSSED TAPE PACKAGE | Americas - 0 in Stock |
|
$0.3652 / $0.4417 | Buy Now |
|
|
Bristol Electronics | Min Qty: 6 | 1317 |
|
$0.2793 / $0.9975 | Buy Now |
|
|
Bristol Electronics | Min Qty: 5 | 1250 |
|
$0.2925 / $1.1250 | Buy Now |
US Tariff Estimator: 53261-0671 by Molex
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for 53261-0671
53261-0671 CAD Models
-

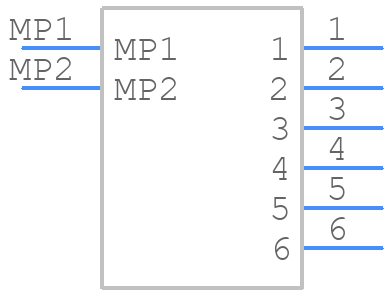

Part Symbol
-

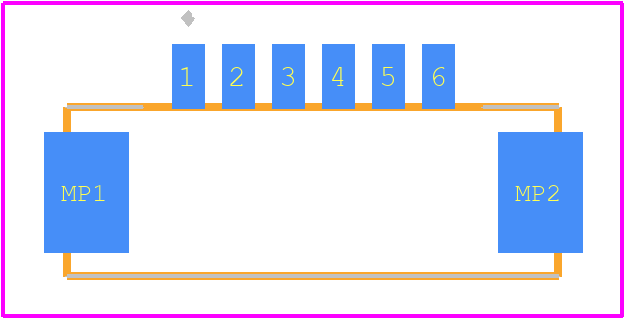

Footprint
-
