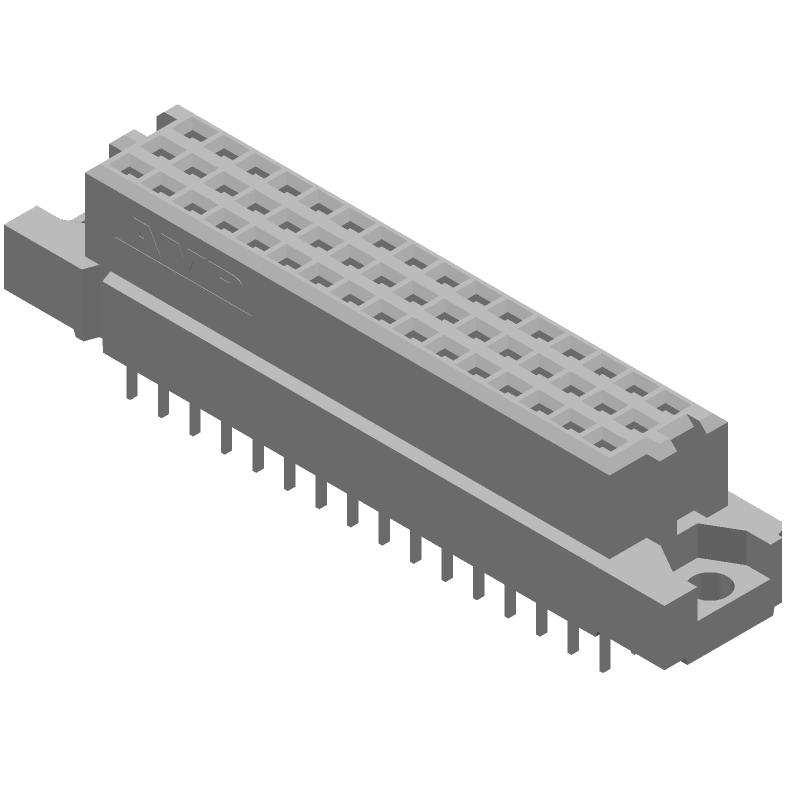

535071-4 by: TE Connectivity

48 CONTACT(S), FEMALE, STRAIGHT TWO PART EURO CONNECTOR, SOLDER, RECEPTACLE

Part Details for 535071-4 by TE Connectivity

Results Overview of 535071-4 by TE Connectivity

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Education and Research Internet of Things (IoT) Industrial Automation Computing and Data Storage Aerospace and Defense Healthcare Electronic Manufacturing Telecommunications Automotive

535071-4 Information

535071-4 by TE Connectivity is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Price & Stock for 535071-4

Part # Distributor Description Stock Price Buy
DISTI # 96Y2614
Newark Din 41612 Connectors 48P Pcb Euro Recept |Amp Te Connectivity 535071-4 RoHS: Not Compliant Min Qty: 30 Package Multiple: 1 Date Code: 0 Container: Bulk 33
  • 25 $3.4100
  • 50 $3.3100
  • 100 $3.2300
  • 500 $3.1600
  • 1,000 $3.1100
  • 2,500 $3.0900
$3.0900 / $3.4100 Buy Now
DISTI # 535071-4
Avnet Americas Conn DIN 41612 RCP 48 POS 2.54mm Solder ST Thru-Hole - Boxed Product (Development Kits) (Alt: 535071-4) COO: China RoHS: Not Compliant Min Qty: 600 Package Multiple: 150 Lead time: 9 Weeks, 2 Days Container: Box 0
  • 600 $2.6312
  • 1,050 $2.3537
  • 5,100 $2.2391
  • 10,050 $2.1304
  • 20,100 $2.0771
$2.0771 / $2.6312 Buy Now
DISTI # 73776250
RS 048 EURO TYPE C RECEPT ST ASSY, Eurocard Connectors Min Qty: 150 Package Multiple: 1 Lead time: 12 Weeks, 0 Days Container: Bulk 0
  • 150 $5.8600
  • 3,750 $5.6800
  • 7,500 $5.5100
$5.5100 / $5.8600 RFQ
TE Connectivity 048 EURO TYPE C RECEPT ST ASSY Connector & Housing Type: Receptacle Connector System: Board-to-Board Termination Post & Tail Length: .18 in Termination Post & Tail Length: 4.57 mm Number of Positions: 48 Receptacle Board-to-Board .18" 4.57 mm | Eurocard Connector | Part Number: 535071-4 | Internal Number: 535071-4 | Alias Number: 2-42935-1881 | TE Connectivity RoHS: Compliant Min Qty: 1 84
  • 1 $3.7900
  • 50 $3.4500
  • 100 $3.3500
  • 250 $3.2400
  • 500 $3.1500
  • 1,000 $3.0600
$3.0600 / $3.7900 Buy Now
DISTI # AMP535071-4
Heilind Electronics 048 EURO TYPE C RECEPT ST ASSY Americas - 0 in Stock
  • 600 $2.7492
  • 2,730 $2.5997
$2.5997 / $2.7492 Buy Now
DISTI # AMP535071-4
Interstate Connecting Components 048 EURO TYPE C RECEPT ST ASSY 0
  • 600 $2.7492
  • 2,730 $2.5997
$2.5997 / $2.7492 Buy Now
Powell Electronics 048 EURO TYPE C RECEPT ST ASSY Min Qty: 600 1980
  • 600 $2.8337
  • 1,000 $2.6797
  • 5,000 $2.6181
  • 10,000 $2.5564
$2.5564 / $2.8337 Buy Now
DISTI # 000000000000671800
Sager DIN 41612 Connectors 48P PCB EURO RECEPT Min Qty: 600 0
  • 600 $2.5600
$2.5600 Buy Now
DISTI # 535071-4
Avnet Abacus Conn DIN 41612 RCP 48 POS 254mm Solder ST ThruHole (Alt: 535071-4) RoHS: Not Compliant Min Qty: 600 Package Multiple: 150 Lead time: 9 Weeks, 0 Days Abacus - 0
Buy Now
DISTI # 535071-4
Avnet Abacus Conn DIN 41612 RCP 48 POS 254mm Solder ST ThruHole (Alt: 535071-4) RoHS: Not Compliant Min Qty: 600 Package Multiple: 30 Lead time: 11 Weeks, 0 Days Abacus - 0
Buy Now

US Tariff Estimator: 535071-4 by TE Connectivity

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

535071-4
TE Connectivity
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for 535071-4

535071-4 Part Data Attributes

Parametric Data
535071-4 TE Connectivity
Buy Now Datasheet
Compare Parts:
535071-4 TE Connectivity 48 CONTACT(S), FEMALE, STRAIGHT TWO PART EURO CONNECTOR, SOLDER, RECEPTACLE
Pbfree Code No
Rohs Code No
Part Life Cycle Code Active
Ihs Manufacturer TE CONNECTIVITY LTD
Reach Compliance Code Not Compliant
ECCN Code EAR99
HTS Code 8536.69.40.40
Factory Lead Time 7 Weeks, 1 Day
Samacsys Manufacturer TE Connectivity
Additional Feature STANDARDS: DIN 41612; IEC 603-2
Body Breadth 0.417 inch
Body Depth 0.453 inch
Body Length 2.1 inch
Body/Shell Style RECEPTACLE
Connector Type BOARD EURO CONNECTOR
Contact Finish Mating NOT APPLICABLE
Contact Gender FEMALE
Contact Material NOT APPLICABLE
Contact Resistance 15 mΩ
Contact Style SQ PIN-SKT
DIN Conformance NO
EMI Shielded NO
Empty Shell YES
Filter Feature NO
IEC Conformance NO
Insertion Force-Max .9452 N
Insulation Resistance 1000000000000 Ω
Insulator Color GRAY
Insulator Material GLASS FILLED POLYESTER
MIL Conformance NO
Mains Connector Rating 115/230VAC
Mating Contact Pitch 0.1 inch
Mating Contact Row Spacing 0.1 inch
Mixed Contacts NO
Mounting Option 1 LOCKING
Mounting Style STRAIGHT
Mounting Type BOARD
Name of Rows Loaded C,B,A
Number Of Connectors ONE
Number Of PCB Rows 3
Number of Ports 1
Number of Rows Loaded 3
Operating Temperature-Max 105 °C
Operating Temperature-Min -55 °C
Option GENERAL PURPOSE
PCB Contact Pattern RECTANGULAR
PCB Contact Row Spacing 2.54 mm
Panel Mount NO
Plating Thickness 30u inch
Polarization Key POLARIZED HOUSING
Rated Current (Signal) 1.5 A
Reference Standard UL, CSA
Terminal Length 0.18 inch
Terminal Pitch 2.54 mm
Termination Type SOLDER
Total Number of Contacts 48
UL Flammability Code 94V-0
Withdrawl Force-Min .15012 N

Alternate Parts for 535071-4

This table gives cross-reference parts and alternative options found for 535071-4. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 535071-4, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
5535071-4 TE Connectivity $3.7104 48 CONTACT(S), FEMALE, STRAIGHT TWO PART EURO CONNECTOR, SOLDER, RECEPTACLE 535071-4 vs 5535071-4
Part Number Manufacturer Composite Price Description Compare
5535070-5 TE Connectivity $0.9073 ASSY,RECEPTACLE,EUROCARD,TYPE 535071-4 vs 5535070-5
5650893-5 TE Connectivity $18.2844 ASSY,RECEPT,EUROCARD,TYPE R/2,L-FREE,48, 535071-4 vs 5650893-5
V42254B2201C480 TE Connectivity $2.6671 Board Euro Connector, 48 Contact(s), 3 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Gray Insulator, Receptacle 535071-4 vs V42254B2201C480
92376-234 Amphenol FCi Check for Price Board Euro Connector, 48 Contact(s), 3 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Gray Insulator, Plug 535071-4 vs 92376-234
92376-214 Amphenol Communications Solutions Check for Price Board Euro Connector, 48 Contact(s), 3 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Gray Insulator, Plug, 535071-4 vs 92376-214
8609.348.81.94.758.000.E3 Amphenol Communications Solutions Check for Price Board Euro Connector, 48 Contact(s), 3 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Plug, 535071-4 vs 8609.348.81.94.758.000.E3
535091-9 TE's AMP Check for Price 48 CONTACT(S), FEMALE, STRAIGHT TWO PART EURO CONNECTOR, SOLDER, RECEPTACLE 535071-4 vs 535091-9
RPI48U30RA-2 Amphenol Communications Solutions Check for Price Board Euro Connector, 48 Contact(s), 3 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle, 535071-4 vs RPI48U30RA-2
92376-234 Amphenol Communications Solutions Check for Price Board Euro Connector, 48 Contact(s), 3 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Gray Insulator, Plug, 535071-4 vs 92376-234
8609.348.81.94.768.000.E3 Amphenol FCi Check for Price Board Euro Connector, 48 Contact(s), 3 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Plug 535071-4 vs 8609.348.81.94.768.000.E3
equivalents icon

535071-4 Related Parts

535071-4 Frequently Asked Questions (FAQ)

  • The recommended torque value is 0.5-0.7 Nm (5-7 in-lbs) for the screw terminals on the 535071-4 connector.

  • Yes, the 535071-4 connector is designed to withstand high-vibration environments, but it's recommended to follow TE Connectivity's guidelines for vibration testing and to ensure proper mounting and securing of the connector.

  • The 535071-4 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F), but it's recommended to derate the current carrying capacity at higher temperatures.

  • The 535071-4 connector has a IP67 rating, which means it can withstand temporary immersion in water up to 1 meter (3.3 feet) for 30 minutes. However, it's recommended to follow TE Connectivity's guidelines for environmental sealing and to ensure proper sealing and protection of the connector.

  • The 535071-4 connector is designed for use with 20-24 AWG wire, and it's recommended to use a wire with a temperature rating of at least 125°C (257°F) and a voltage rating of at least 600V.
