5499923-4 Information
5499923-4 by TE Connectivity is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.
Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.
Price & Stock for 5499923-4
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
68AH0157
|
Newark | Wtb Conn, 20Pos, 2Row, 2.54Mm, Connector Systems:Wire-To-Board, Pitch Spacing:2.54Mm, No. Of Rows:2Rows, No. Of Contacts:20Contacts, Contact Termination Type:Through Hole, Product Range:Amp-Latch Series, Connector Shroud:Shrouded Rohs Compliant: Yes |Amp Te Connectivity 5499923-4 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 142 |
|
$2.2900 | Buy Now |
|
DISTI #
5499923-4
|
Avnet Americas | Pin Header, Wire-to-Board, 2.54 mm, 2 Rows, 20 Contacts, Solder, AMP-LATCH Series - Trays (Alt: 5499923-4) COO: China RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 4 Weeks, 0 Days Container: Tray | 5946048 Factory Stock |
|
$1.9903 / $2.7474 | Buy Now |
|
DISTI #
68AH0157
|
Avnet Americas | Pin Header, Wire-to-Board, 2.54 mm, 2 Rows, 20 Contacts, Solder, AMP-LATCH Series - Bulk (Alt: 68AH0157) COO: China RoHS: Compliant Min Qty: 1 Package Multiple: 1 Container: Bulk | 200 Partner Stock |
|
$3.6800 / $5.1400 | Buy Now |
|
DISTI #
70085764
|
RS | HEADER, UNIVERSAL EJECTION PIN, AMP-LATCH, 20 POS, 2.54 X 2.54, PCB, VERTICAL Min Qty: 1 Package Multiple: 1 Lead time: 3 Weeks, 0 Days Container: Bulk | 20 |
|
$3.9200 | Buy Now |
|
|
TE Connectivity | A/L UNIV HDR 20P VERT LAT Connector System: Wire-to-Board Number of Positions: 20 Centerline (Pitch): 2.54 mm Centerline (Pitch): .1 in PCB Mount Retention: Without Wire-to-Board 20 2.54 mm .1" | Amp-Latch Universal Header | Part Number: 5499923-4 | Internal Number: 5499923-4 | TE Connectivity RoHS: Compliant Min Qty: 1 | 2178 |
|
$3.5800 / $4.4300 | Buy Now |
|
DISTI #
AMP5499923-4
|
Heilind Electronics | A/L UNIV HDR 20P VERT LG LAT | Americas - 0 in Stock |
|
$2.6561 / $3.1220 | Buy Now |
|
|
Bristol Electronics | 20 |
|
RFQ | ||
|
DISTI #
AMP5499923-4
|
Interstate Connecting Components | A/L UNIV HDR 20P VERT LG LAT | 0 |
|
$2.6561 / $3.1220 | Buy Now |
|
|
Powell Electronics | A/L UNIV HDR 20P VERT LG LAT Min Qty: 432 | 3707 |
|
$2.4496 / $3.1701 | Buy Now |
|
DISTI #
000000000001456997
|
Sager | Headers & Wire Housings 100X100 HDR 2X010P VERT LOW PRO W/EJECT Min Qty: 432 | 0 |
|
$2.7300 | Buy Now |
US Tariff Estimator: 5499923-4 by TE Connectivity
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for 5499923-4

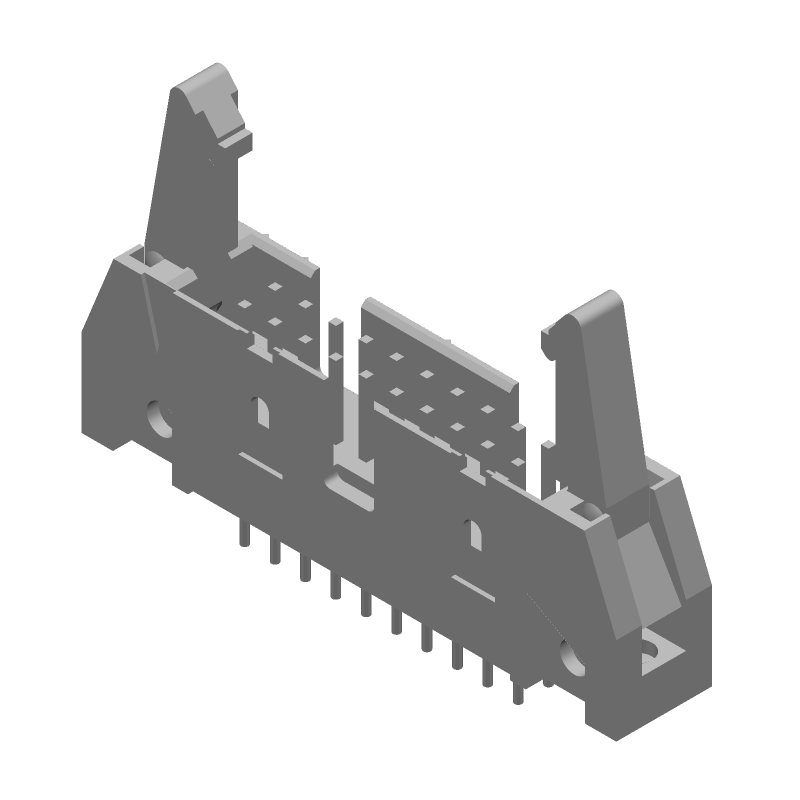

5499923-4 CAD Models
-
