5569380-1 Information
5569380-1 by TE Connectivity is a Telecom and Datacom Connector.
Telecom and Datacom Connectors are under the broader part category of Connectors.
Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.
Price & Stock for 5569380-1
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
70AH7702
|
Newark | Conn, Jack, 8P8C, 2X1 Stacked, Cat5 Rohs Compliant: Yes |Amp Te Connectivity 5569380-1 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 618 |
|
$10.4800 / $14.3300 | Buy Now |
|
DISTI #
5569380-1
|
Avnet Americas | Modular Connector, Modular Jack, 2 x 1 (Stacked), 8P8C, Cat5, Through Hole Mount - Trays (Alt: 5569380-1) COO: China RoHS: Compliant Min Qty: 1125 Package Multiple: 225 Lead time: 5 Weeks, 0 Days Container: Tray | 0 |
|
$8.0985 / $10.0104 | Buy Now |
|
DISTI #
73776505
|
RS | STK MJ,8POS,2X1,SHLD, CAT5, RJ45 Connectors Min Qty: 225 Package Multiple: 1 Lead time: 12 Weeks, 0 Days Container: Bulk | 0 |
|
$18.5000 / $20.1100 | RFQ |
|
|
TE Connectivity | STK MJ,8POS,2X1,SHLD,CAT5 Modular Jack & Plug Interface Type: RJ45 Port Configuration: Multiple Ports Port Matrix Configuration: 2 x 1 Modular Jacks & Plugs Products: RJ Type Jacks & Plugs Connector Contact Density: Standard RJ45 Multiple Ports 2 x 1 RJ Type Jacks & Plugs | Rj45 Connector | Part Number: 5569380-1 | Internal Number: 5569380-1 | TE Connectivity RoHS: Compliant Min Qty: 1 | 721 |
|
$8.8400 / $14.1000 | Buy Now |
|
DISTI #
AMP5569380-1
|
Heilind Electronics | STK MJ8POS2X1SHLDCAT5 | Americas - 0 in Stock |
|
$10.3049 | Buy Now |
|
|
Bristol Electronics | 38 |
|
RFQ | ||
|
DISTI #
AMP5569380-1
|
Interstate Connecting Components | STK MJ8POS2X1SHLDCAT5 | 0 |
|
$10.3049 | Buy Now |
|
|
Powell Electronics | Modular Connectors / Ethernet Connectors Min Qty: 10 | 227 |
|
$10.2800 / $10.8400 | Buy Now |
|
DISTI #
000000000001457679
|
Sager | Modular Connectors / Ethernet Connectors 2X1 8/8 R/A LPRO Min Qty: 225 | 0 |
|
$11.6800 | Buy Now |
|
DISTI #
5569380-1
|
Avnet Abacus | Modular Connector Modular Jack 2 x 1 Stacked 8P8C Cat5 Through Hole Mount (Alt: 5569380-1) RoHS: Compliant Min Qty: 20 Package Multiple: 1 Lead time: 7 Weeks, 0 Days | Abacus - 0 |
|
Buy Now |
US Tariff Estimator: 5569380-1 by TE Connectivity
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for 5569380-1
5569380-1 CAD Models
-

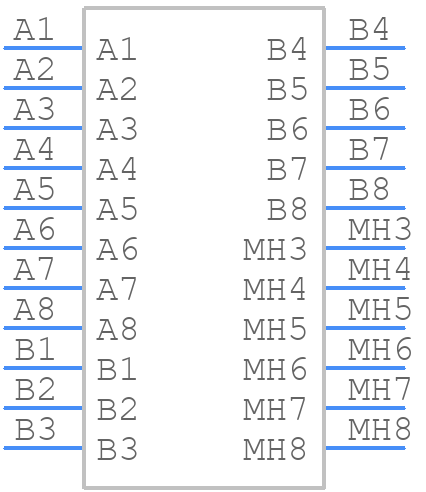

Part Symbol
-

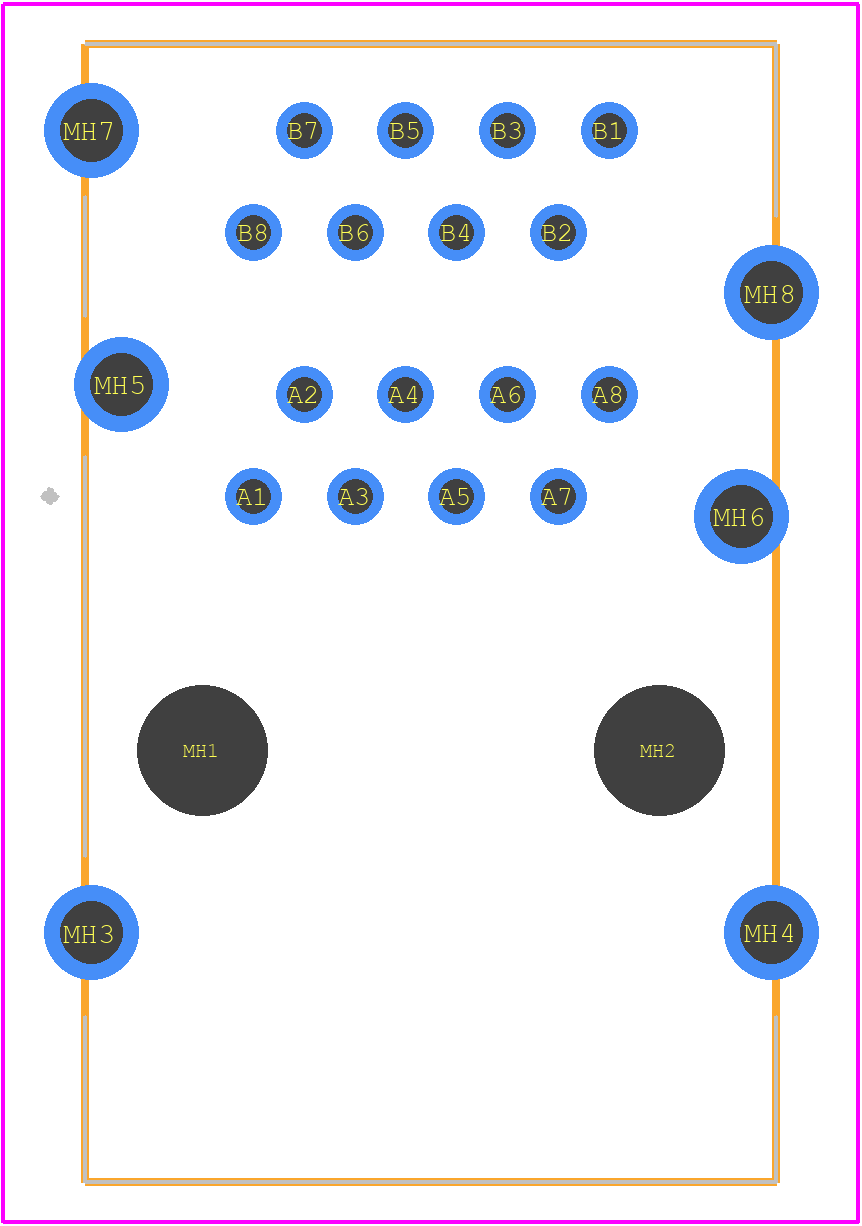

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
5569380-1 Part Data Attributes
|
|
5569380-1
TE Connectivity
Buy Now
Datasheet
|
Compare Parts:
5569380-1
TE Connectivity
STK MJ,8POS,2X1,SHLD,CAT5
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.69.40.30 | |
| Factory Lead Time | 5 Weeks | |
| Additional Feature | Low Profile | |
| Board Mounting Option | Split Board Lock | |
| Body Breadth | 0.995 Inch | |
| Body Depth | 0.994 Inch | |
| Body Length | 0.68 Inch | |
| Body/Shell Style | Jack | |
| Connector Type | Rj Connector | |
| Contact Finish Mating | Not Applicable | |
| Contact Gender | Female | |
| Contact Material | Not Applicable | |
| Contact Resistance | 30 MΩ | |
| Contact Style | Modular Rj45 | |
| DIN Conformance | No | |
| Durability | 750 Cycles | |
| EMI Shielded | Yes | |
| Empty Shell | Yes | |
| Filter Feature | No | |
| IEC Conformance | No | |
| Insulation Resistance | 500000000 Ω | |
| Insulator Color | Black | |
| Insulator Material | Pct Polyester | |
| MIL Conformance | No | |
| Mains Connector Rating | 115/230vac | |
| Mixed Contacts | No | |
| Mounting Style | Right Angle | |
| Mounting Type | Board And Panel | |
| Number Of Connectors | One | |
| Number of Ports | 1 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Option | General Purpose | |
| PCB Contact Pattern | Staggered | |
| Panel Mount | No | |
| Plating Thickness | 50u Inch | |
| Rated Current (Signal) | 1.5 A | |
| Reference Standard | Ul | |
| Shell Finish | Tin | |
| Shell Material | Copper Alloy | |
| Terminal Length | 0.14 Inch | |
| Terminal Pitch | 1.02 Mm | |
| Termination Type | Solder | |
| Total Number of Contacts | 8 | |
| UL Flammability Code | 94V-0 |
