55932-1230 Information
55932-1230 by Molex is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.
Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| 10121505-001230DLF | Amphenol Communications Solutions | HPCE VT Receptacle with enhanced wall 12P30S | |
| 77317-812-30LF | Amphenol Communications Solutions | BergStik®, Board to Board connector, Unshrouded Right angle Header, Through Hole, Double Row, 30 Positions ,2.54mm (0.100in) Pitch, | |
| 10005639-12308HLF | Amphenol Communications Solutions | DDR2 DIMM, Storage and Server Connector, Vertical, Through Hole, 240 Position, 1.00mm (0.039in) Pitch |
Price & Stock for 55932-1230
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
92M8074
|
Newark | 2.0 Wtb Plg Hsg Assy Y Str W/O Boss 12Ckt |Molex 55932-1230 (Alternate Part Number: 800756632483 RoHS: Not Compliant Min Qty: 257 Package Multiple: 1 Date Code: 0 Container: Bulk | 2040 |
|
$0.5290 / $0.6040 | Buy Now |
|
DISTI #
0559321230
|
Avnet Americas | - Trays (Alt: 0559321230) COO: Japan RoHS: Compliant Min Qty: 6400 Package Multiple: 3200 Lead time: 15 Weeks, 0 Days Container: Tray | 0 |
|
$0.4551 / $0.4812 | Buy Now |
|
DISTI #
MOL55932-1230
|
Heilind Electronics | 2.0 WTB PLG HSG ASSY STR W/O OSS 12CKT | Americas - 0 in Stock |
|
$0.4096 / $0.4678 | Buy Now |
|
DISTI #
559321230-MOL
|
TME | Connector: wire-board Min Qty: 175 | 1240 |
|
$0.4370 / $0.4971 | Buy Now |
US Tariff Estimator: 55932-1230 by Molex
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for 55932-1230
55932-1230 CAD Models
-

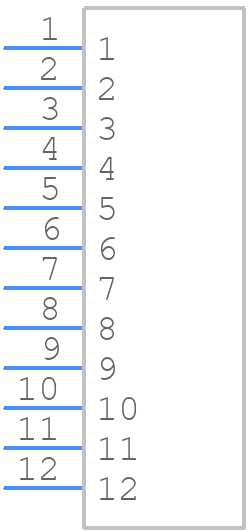

Part Symbol
-

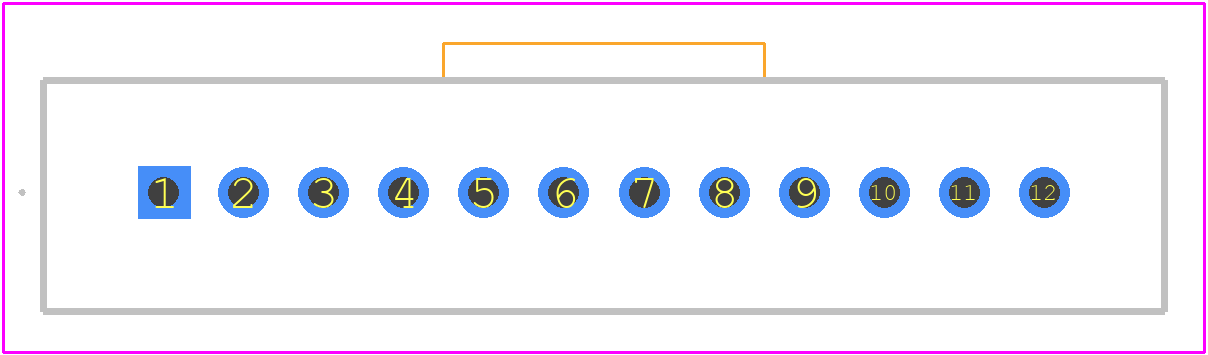

Footprint
-

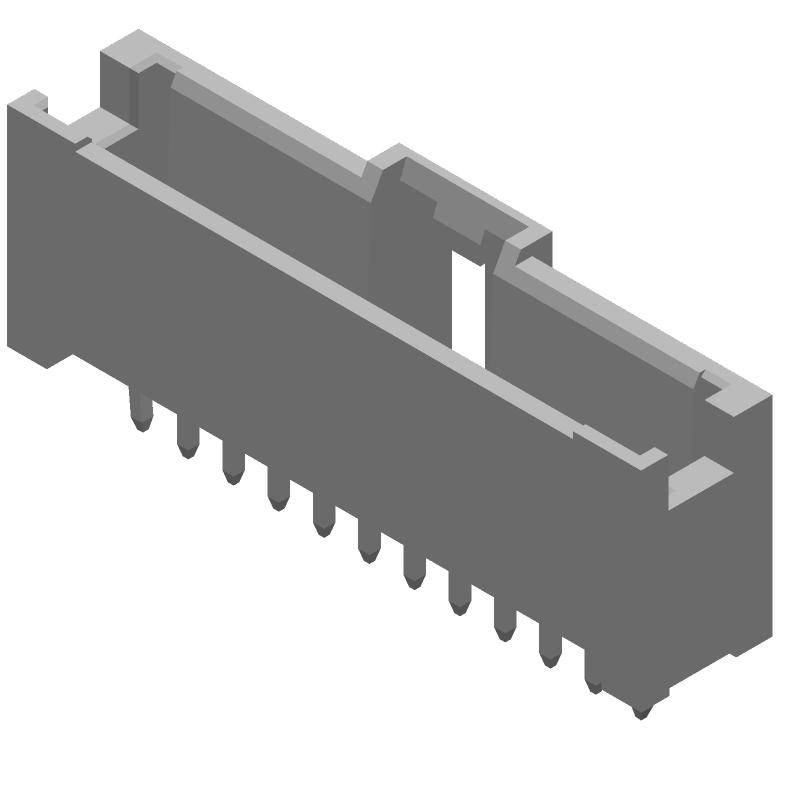

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
55932-1230 Part Data Attributes
|
|
55932-1230
Molex
Buy Now
Datasheet
|
Compare Parts:
55932-1230
Molex
Board Connector, 12 Contact(s), 1 Row(s), Male, Straight, Solder Terminal, Plug, LEAD FREE
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | Lead Free | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.69.40.40 | |
| Factory Lead Time | 15 Weeks | |
| Body/Shell Style | Plug | |
| Connector Type | Board Connector | |
| Contact Finish Mating | Not Specified | |
| Contact Finish Termination | Tin (Sn) | |
| Contact Gender | Male | |
| Contact Material | Not Specified | |
| DIN Conformance | No | |
| Filter Feature | No | |
| IEC Conformance | No | |
| JESD-609 Code | e3 | |
| MIL Conformance | No | |
| Mating Information | Multiple Mating Parts Available | |
| Mixed Contacts | No | |
| Mounting Style | Straight | |
| Mounting Type | Board | |
| Number Of Connectors | One | |
| Number of Rows Loaded | 1 | |
| Option | General Purpose | |
| Terminal Pitch | 2 Mm | |
| Termination Type | Solder | |
| Total Number of Contacts | 12 |
