5650616-1 Information
5650616-1 by TE Connectivity is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.
Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.
Price & Stock for 5650616-1
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
42K7352
|
Newark | Conn Sec Ii 49 Pos 100C/L Rohs Compliant: Yes |Amp Te Connectivity 5650616-1 RoHS: Compliant Min Qty: 216 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$7.9600 / $9.5900 | Buy Now |
|
DISTI #
16AM4236
|
Newark | Card Edge Connector, 97 Contact(S), 2 Row(S), Female, Straight, Solder Terminal, Black Insulator, Receptacle |Amp Te Connectivity 5650616-1 RoHS: Not Compliant Min Qty: 10 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$6.2000 / $6.6900 | Buy Now |
|
DISTI #
5650616-1
|
Avnet Americas | Conn Card Edge SKT 104 POS 2.54mm Solder ST Thru-Hole - Boxed Product (Development Kits) (Alt: 5650616-1) COO: China RoHS: Compliant Min Qty: 216 Package Multiple: 216 Lead time: 7 Weeks, 3 Days Container: Box | 0 |
|
$3.7128 / $6.8491 | Buy Now |
|
DISTI #
71354934
|
RS | CONN SEC II 49 POS 100C/L Min Qty: 216 Package Multiple: 1 Container: Bulk | 0 |
|
$12.2800 / $15.3500 | RFQ |
|
DISTI #
AMP5650616-1
|
Heilind Electronics | CONN SEC II 49 POS 100C/L | Americas - 0 in Stock |
|
$7.0506 / $7.1559 | Buy Now |
|
DISTI #
AMP5650616-1
|
Interstate Connecting Components | CONN SEC II 49 POS 100C/L | 0 |
|
$7.0506 / $7.1559 | Buy Now |
|
DISTI #
000000000001457957
|
Sager | Standard Card Edge Connectors 100 VRT 052DP Min Qty: 216 | 0 |
|
$7.9900 | Buy Now |
|
DISTI #
5650616-1
|
Avnet Abacus | Conn Card Edge SKT 104 POS 254mm Solder ST ThruHole (Alt: 5650616-1) RoHS: Compliant Min Qty: 30 Package Multiple: 1 Lead time: 11 Weeks, 0 Days | Abacus - 0 |
|
Buy Now | |
|
DISTI #
5650616-1
|
Avnet Abacus | Conn Card Edge SKT 104 POS 254mm Solder ST ThruHole (Alt: 5650616-1) RoHS: Compliant Min Qty: 216 Package Multiple: 216 Lead time: 9 Weeks, 0 Days | Abacus - 0 |
|
Buy Now |
US Tariff Estimator: 5650616-1 by TE Connectivity
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for 5650616-1

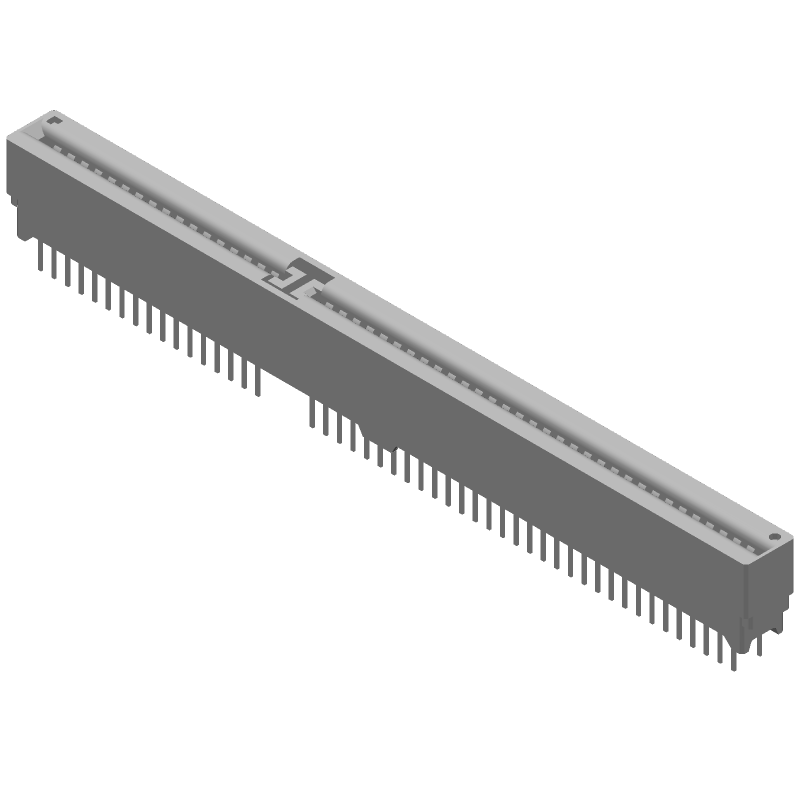

5650616-1 CAD Models
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
5650616-1 Part Data Attributes
|
|
5650616-1
TE Connectivity
Buy Now
Datasheet
|
Compare Parts:
5650616-1
TE Connectivity
CONN SEC II 49 POS 100C/L
|
| Pbfree Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | Rohs Compliant | |
| Reach Compliance Code | Unknown | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.69.40.40 | |
| Factory Lead Time | 7 Weeks, 3 Days | |
| Additional Feature | Terminal Pitch For Power Contacts Is 2.54 Mm | |
| Body Depth | 0.72 Inch | |
| Body/Shell Style | Receptacle | |
| Connector Type | Card Edge Connector | |
| Contact Finish Mating | Not Applicable | |
| Contact Gender | Female | |
| Contact Material | Not Applicable | |
| DIN Conformance | No | |
| EMI Shielded | No | |
| Empty Shell | Yes | |
| Filter Feature | No | |
| IEC Conformance | No | |
| Insulator Color | Black | |
| Insulator Material | Glass Filled Polyester | |
| MIL Conformance | No | |
| Mains Connector Rating | 3a | |
| Mating Contact Row Spacing | 0.241 Inch | |
| Mixed Contacts | No | |
| Mounting Style | Straight | |
| Mounting Type | Board | |
| Number Of Connectors | One | |
| Number of Ports | 1 | |
| Number of Rows Loaded | 2 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -55 °C | |
| Option | General Purpose | |
| Panel Mount | No | |
| Plating Thickness | 30u Inch | |
| Polarization Key | Polarized | |
| Rated Current (Signal) | 3 A | |
| Rated Voltage | 400 V | |
| Reference Standard | Ul | |
| Terminal Length | 0.187 Inch | |
| Terminal Pitch | 2.54 Mm | |
| Termination Type | Solder | |
| Total Number of Contacts | 97 | |
| UL Flammability Code | 94V-0 |
