5650906-5 by: TE Connectivity

ASSY,PIN,EUROCARD,TYPE C,LEAD-

Part Details for 5650906-5 by TE Connectivity

Results Overview of 5650906-5 by TE Connectivity

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

5650906-5 Information

5650906-5 by TE Connectivity is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Price & Stock for 5650906-5

Part # Distributor Description Stock Price Buy
DISTI # 99X6196
Newark Assy, pin, eurocard, type C, lead- |Amp Te Connectivity 5650906-5 RoHS: Not Compliant Min Qty: 600 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 500 $7.4700
$7.4700 Buy Now
DISTI # 5650906-5
Avnet Americas Conn DIN 41612 PL 120 POS 2.54mm Solder RA Thru-Hole - Boxed Product (Development Kits) (Alt: 5650906-5) COO: China RoHS: Compliant Min Qty: 600 Package Multiple: 150 Lead time: 5 Weeks, 6 Days Container: Box 0
  • 600 $6.4279
  • 1,050 $5.7500
  • 5,100 $5.4782
  • 10,050 $5.4502
  • 20,100 $5.4223
$5.4223 / $6.4279 Buy Now
DISTI # 73776544
RS ASSY, PIN, EUROCARD, TYPE C, LEAD-, Eurocard Connectors Min Qty: 150 Package Multiple: 1 Lead time: 12 Weeks, 0 Days Container: Bulk 0
  • 150 $12.6300
  • 1,500 $12.0000
  • 3,750 $11.6200
$11.6200 / $12.6300 RFQ
TE Connectivity ASSY,PIN,EUROCARD,TYPE C,LEAD- Connector & Housing Type: Plug Connector System: Board-to-Board Termination Post & Tail Length: .104 in Termination Post & Tail Length: 2.64 mm Number of Positions: 120 Plug Board-to-Board .104" 2.64 mm | Eurocard Connector | Part Number: 5650906-5 | Internal Number: 5650906-5 | TE Connectivity RoHS: Compliant Min Qty: 1 594
  • 1 $10.1600
  • 50 $9.2600
  • 100 $8.9900
  • 250 $8.7000
  • 500 $8.4400
  • 1,000 $8.2100
$8.2100 / $10.1600 Buy Now
DISTI # AMP5650906-5
Heilind Electronics ASSYPINEUROCARDTYPE CLEAD- Americas - 0 in Stock
  • 600 $6.7157
  • 1,140 $6.3507
$6.3507 / $6.7157 Buy Now
DISTI # AMP5650906-5
Interstate Connecting Components ASSYPINEUROCARDTYPE CLEAD- 0
  • 600 $6.7157
  • 1,140 $6.3507
$6.3507 / $6.7157 Buy Now
Powell Electronics Headers & Wire Housings Min Qty: 600 1
  • 600 $7.0500
  • 1,000 $6.6800
  • 5,000 $6.5200
  • 10,000 $6.3700
$6.3700 / $7.0500 Buy Now
DISTI # 000000000001457974
Sager DIN 41612 Connectors PLUG 120P R/A TYPE C Min Qty: 150 0
  • 150 $7.5000
$7.5000 Buy Now
DISTI # 5650906-5
Avnet Abacus Conn DIN 41612 PL 120 POS 254mm Solder RA ThruHole (Alt: 5650906-5) RoHS: Compliant Min Qty: 600 Package Multiple: 1 Lead time: 11 Weeks, 0 Days Abacus - 0
Buy Now
DISTI # 5650906-5
Avnet Abacus Conn DIN 41612 PL 120 POS 254mm Solder RA ThruHole (Alt: 5650906-5) RoHS: Compliant Min Qty: 600 Package Multiple: 150 Lead time: 9 Weeks, 0 Days Abacus - 0
Buy Now

US Tariff Estimator: 5650906-5 by TE Connectivity

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

5650906-5
TE Connectivity
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for 5650906-5

5650906-5 CAD Models

  • Part Symbol

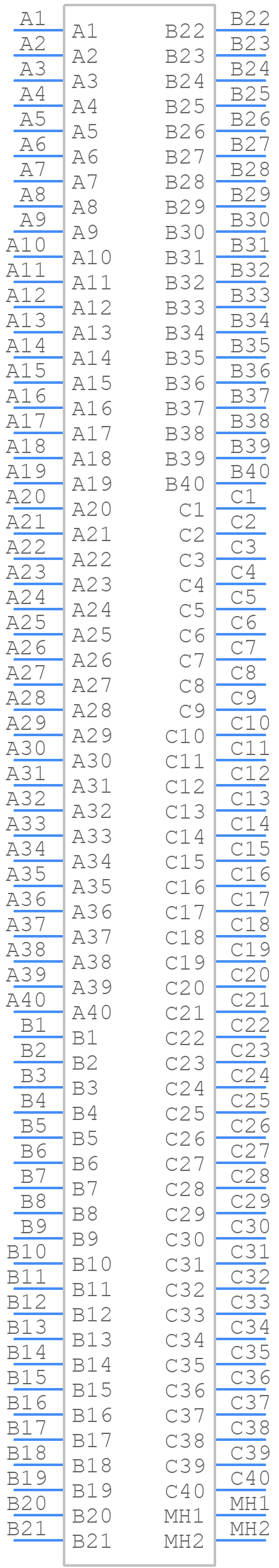

    schematic symbol

  • Footprint

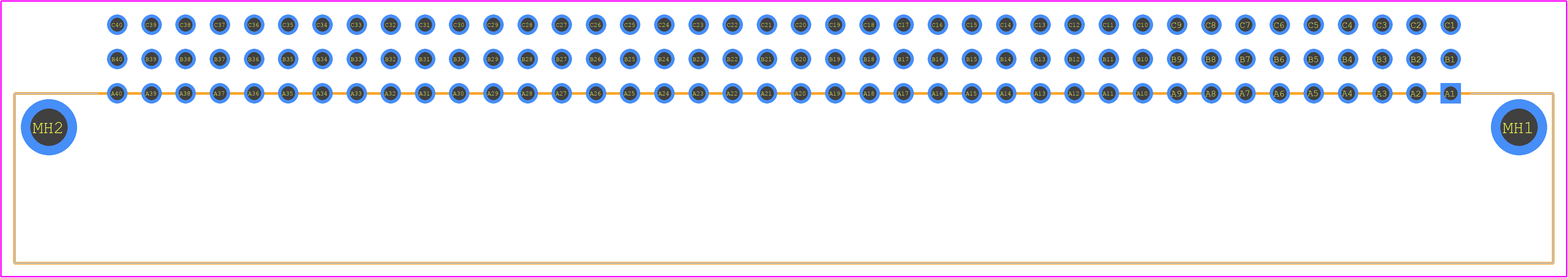

    pcb footprint

  • 3D Model

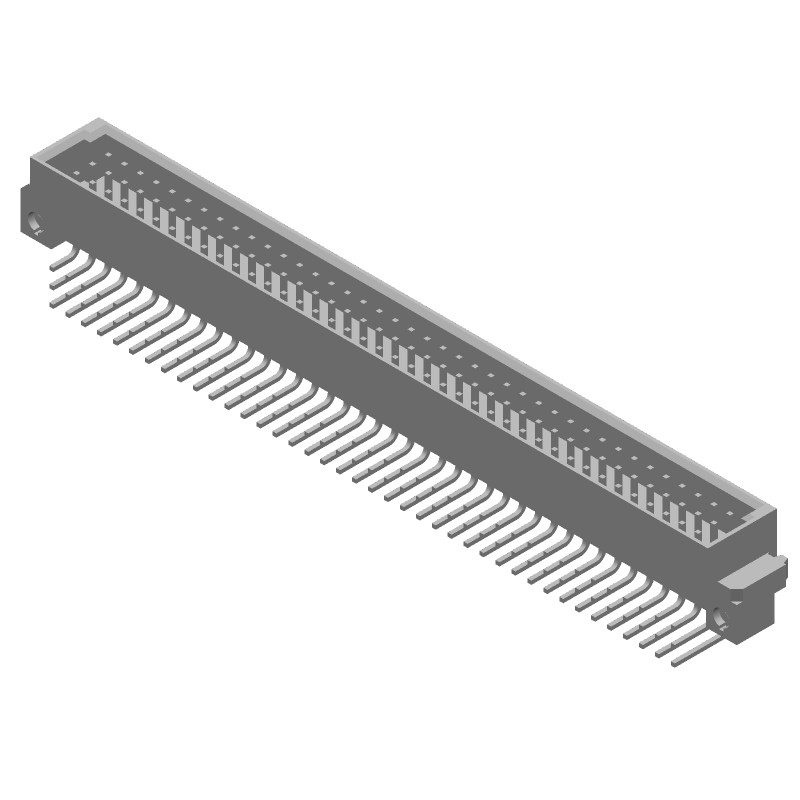

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

5650906-5 Part Data Attributes

Parametric Data
5650906-5 TE Connectivity
Buy Now Datasheet
Compare Parts:
5650906-5 TE Connectivity ASSY,PIN,EUROCARD,TYPE C,LEAD-
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer TE CONNECTIVITY LTD
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8536.69.40.40
Factory Lead Time 6 Weeks, 6 Days
Samacsys Manufacturer TE Connectivity
Body Breadth 0.437 inch
Body Depth 0.437 inch
Body Length 4.5 inch
Body/Shell Style PLUG
Connector Type BOARD EURO CONNECTOR
Contact Finish Mating NOT APPLICABLE
Contact Gender MALE
Contact Material NOT APPLICABLE
Contact Resistance 15 mΩ
Contact Style SQ PIN-SKT
DIN Conformance NO
EMI Shielded NO
Empty Shell YES
Filter Feature NO
IEC Conformance NO
Insertion Force-Max .9452 N
Insulation Resistance 1000000000000 Ω
Insulator Color GRAY
Insulator Material GLASS FILLED POLYMER
MIL Conformance NO
Mains Connector Rating 1.5A
Mating Contact Pitch 0.1 inch
Mating Contact Row Spacing 0.1 inch
Mixed Contacts NO
Mounting Option 1 LOCKING
Mounting Style RIGHT ANGLE
Mounting Type BOARD
Name of Rows Loaded A,B,C
Number Of Connectors ONE
Number Of PCB Rows 3
Number of Ports 1
Number of Rows Loaded 3
Operating Temperature-Max 105 °C
Operating Temperature-Min -55 °C
Option GENERAL PURPOSE
PCB Contact Pattern RECTANGULAR
PCB Contact Row Spacing 2.54 mm
Panel Mount NO
Plating Thickness 30u inch
Polarization Key POLARIZED
Rated Current (Signal) 1.5 A
Reference Standard UL
Terminal Length 0.104 inch
Terminal Pitch 2.54 mm
Termination Type SOLDER
Total Number of Contacts 120
UL Flammability Code 94V-0
Withdrawl Force-Min .15012 N
