Capacitors / Fixed Capacitors / 593D107X0010D2TE3
Datasheets
593D107X0010D2TE3 by:
Vishay Intertechnologies

Tantalum Capacitor, Polarized, Tantalum (dry/solid), 10V, 20% +Tol, 20% -Tol, 100uF, Surface Mount, 2917, CHIP

Part Details for 593D107X0010D2TE3 by Vishay Intertechnologies

Results Overview of 593D107X0010D2TE3 by Vishay Intertechnologies

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

593D107X0010D2TE3 Information

593D107X0010D2TE3 by Vishay Intertechnologies is a Fixed Capacitor.
Fixed Capacitors are under the broader part category of Capacitors.

A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.

Price & Stock for 593D107X0010D2TE3

Part # Distributor Description Stock Price Buy
DISTI # 65K2994
Newark Tantalum Capacitor, 100Uf 10V 0.2 Ohm 20%, 7343-31, Capacitance:100Μf, Voltage(Dc):10V, Capacitor Case/Package:2917 [7343 Metric], Capacitance Tolerance:± 20%, Esr:0.2Ohm, Manufacturer Size Code:D, Failure Rate:-, Qualification:- Rohs Compliant: Yes |Vishay 593D107X0010D2TE3 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 23
  • 1 $0.9000
  • 10 $0.5220
  • 25 $0.4870
  • 50 $0.4530
  • 100 $0.4220
$0.4220 / $0.9000 Buy Now
DISTI # 27X7957
Newark Tantalum Capacitor, 100Uf 10V 0.2 Ohm 20%, 7343-31, Full Reel, Capacitance:100Μf, Voltage(Dc):10V, Capacitor Case/Package:2917 [7343 Metric], Capacitance Tolerance:± 20%, Esr:0.2Ohm, Manufacturer Size Code:D, Failure Rate:- Rohs Compliant: Yes |Vishay 593D107X0010D2TE3 RoHS: Compliant Min Qty: 2000 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 2,000 $0.4030
$0.4030 Buy Now
DISTI # 65K2994
Avnet Americas Surface Mount Tantalum Capacitor, TANTAMOUNT?, 100 ?F, 10 V, 2917 [7343 Metric], ? 20%, 0.1 ohm, D - Product that comes on tape, but is not reeled (Alt: 65K2994) COO: China RoHS: Compliant Min Qty: 1 Package Multiple: 1 Container: Ammo Pack 30 Partner Stock
  • 1 $0.4220
  • 10 $0.5220
  • 25 $0.4870
  • 50 $0.4530
  • 100 $0.4220
$0.4220 / $0.5220 Buy Now
DISTI # 593D107X0010D2TE3
Avnet Americas Surface Mount Tantalum Capacitor, TANTAMOUNT?, 100 ?F, 10 V, 2917 [7343 Metric], ? 20%, 0.1 ohm, D - Tape and Reel (Alt: 593D107X0010D2TE3) COO: China RoHS: Compliant Min Qty: 500 Package Multiple: 500 Lead time: 15 Weeks, 0 Days Container: Reel 0
  • 500 $0.2274
  • 1,000 $0.2262
  • 2,000 $0.2182
  • 4,000 $0.2171
  • 8,000 $0.2160
$0.2160 / $0.2274 Buy Now
Bristol Electronics   Min Qty: 7 8932
  • 7 $0.7909
  • 27 $0.5141
  • 99 $0.2966
  • 339 $0.2531
  • 732 $0.2215
  • 1,740 $0.2056
$0.2056 / $0.7909 Buy Now
DISTI # 593D107X0010D2TE3
TME Capacitor: tantalum, low ESR, 100uF, 10VDC, SMD, D, 2917, ±20%, 100mΩ Min Qty: 1 127
  • 1 $0.6200
  • 10 $0.4020
  • 100 $0.3210
  • 200 $0.3000
$0.3000 / $0.6200 Buy Now
ComSIT USA SOLID TANTALUM SURFACE MOUNT CHIP CAPACITOR Tantalum Capacitor, Polarized, Tantalum (dry/solid), 10V, 20% +Tol, 20% -Tol, 100uF, Surface Mount, 2917 ECCN: EAR99 RoHS: Compliant Stock DE - 8785
Stock ES - 1281
Stock US - 0
Stock MX - 0
Stock CN - 0
Stock HK - 0
RFQ
DISTI # 593D107X0010D2TE3
IBS Electronics CAP TANT SOLID 100UF 10V D CASE 20% (7.3 X 4.3 X 2.8MM) INWARD L SMD 7343-31 0.1 OHM 125C T/R Min Qty: 500 Package Multiple: 1 2500
  • 500 $0.2492
  • 1,000 $0.2450
  • 1,500 $0.2436
  • 2,000 $0.2408
  • 2,500 $0.2366
$0.2366 / $0.2492 Buy Now
DISTI # 593D107X0010D2TE3
Avnet Abacus Surface Mount Tantalum Capacitor TANTAMOUNT 100 F 10 V 2917 7343 Metric 20 01 ohm D - Tape and Reel (Alt: 593D107X0010D2TE3) RoHS: Compliant Min Qty: 500 Package Multiple: 500 Lead time: 18 Weeks, 0 Days Container: Reel Abacus - 47000
Buy Now
DISTI # 593D107X0010D2TE3
Avnet Asia Surface Mount Tantalum Capacitor, TANTAMOUNT?, 100 ?F, 10 V, 2917 [7343 Metric], ? 20%, 0.1 ohm, D (Alt: 593D107X0010D2TE3) RoHS: Compliant Min Qty: 500 Package Multiple: 500 Lead time: 17 Weeks, 0 Days 0
RFQ
DISTI # 593D107X0010D2TE3
Maritex Tantalum Capacitors – Dry SMD, VISHAY, 593D107X0010D2TE3, 100 µF, 20 %, 7.3 mm, 10 V Min Qty: 1 Package Multiple: 1 817
  • 1 $0.4350
$0.4350 Buy Now
New Advantage Corporation Cap Tant SMD 100�F � 20% 10V D Case Low ESR T&R RoHS: Compliant Min Qty: 1 Package Multiple: 500 37500
  • 500 $0.3497
  • 37,500 $0.3228
$0.3228 / $0.3497 Buy Now

US Tariff Estimator: 593D107X0010D2TE3 by Vishay Intertechnologies

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

593D107X0010D2TE3
Vishay Intertechnologies
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for 593D107X0010D2TE3

593D107X0010D2TE3 CAD Models

  • Part Symbol

    schematic symbol

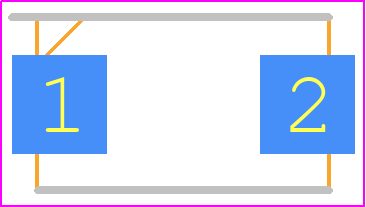

  • Footprint

    pcb footprint

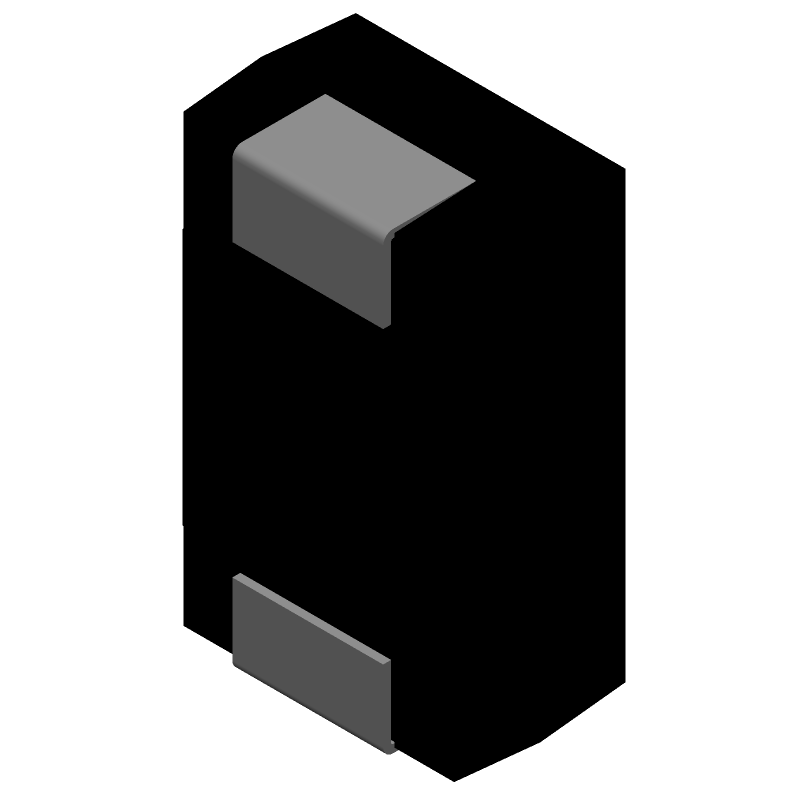

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

593D107X0010D2TE3 Part Data Attributes

Parametric Data
593D107X0010D2TE3 Vishay Intertechnologies
Buy Now Datasheet
Compare Parts:
593D107X0010D2TE3 Vishay Intertechnologies Tantalum Capacitor, Polarized, Tantalum (dry/solid), 10V, 20% +Tol, 20% -Tol, 100uF, Surface Mount, 2917, CHIP
Rohs Code Yes
Part Life Cycle Code Active
Package Description Chip
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8532.21.00.50
Factory Lead Time 13 Weeks
Additional Feature Esr And Ripple Current Is Measured At 100khz
Capacitance 100 µF
Capacitor Type Tantalum Capacitor
Dielectric Material Tantalum (Dry/Solid)
ESR 100 MΩ
Height 2.8 Mm
JESD-609 Code e3
Leakage Current 0.01 Ma
Length 7.3 Mm
Mounting Feature Surface Mount
Negative Tolerance 20%
Number of Terminals 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Package Shape Rectangular Package
Package Style Smt
Packing Method Tr, Embossed Plastic, 7 Inch
Polarity Polarized
Positive Tolerance 20%
Rated (DC) Voltage (URdc) 10 V
Ripple Current 488 Ma
Size Code 2917
Surface Mount Yes
Tan Delta 0.06
Terminal Finish Matte Tin (Sn) - With Nickel (Ni) Barrier
Terminal Shape J Bend
Width 4.3 Mm

Alternate Parts for 593D107X0010D2TE3

This table gives cross-reference parts and alternative options found for 593D107X0010D2TE3. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 593D107X0010D2TE3, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
T496D107M010CH631CWAFL KEMET Corporation Check for Price Tantalum Capacitor, Polarized, Tantalum (dry/solid), 10V, 20% +Tol, 20% -Tol, 100uF, 2917, 593D107X0010D2TE3 vs T496D107M010CH631CWAFL
T493D107M010AK63307280 KEMET Corporation Check for Price Tantalum Capacitor, Polarized, Tantalum (dry/solid), 10V, 20% +Tol, 20% -Tol, 100uF, Surface Mount, 2917, CHIP 593D107X0010D2TE3 vs T493D107M010AK63307280
T493D107M010CC62307610 KEMET Corporation Check for Price Tantalum Capacitor, Tantalum (dry/solid), 593D107X0010D2TE3 vs T493D107M010CC62307610
T493D107M010CT622A7640 KEMET Corporation Check for Price Tantalum Capacitor, Polarized, Tantalum (dry/solid), 10V, 20% +Tol, 20% -Tol, 100uF, 2917, 593D107X0010D2TE3 vs T493D107M010CT622A7640
T496D107M010DK62207280 KEMET Corporation Check for Price Tantalum Capacitor, Polarized, Tantalum (dry/solid), 10V, 20% +Tol, 20% -Tol, 100uF, 2917 593D107X0010D2TE3 vs T496D107M010DK62207280
T496D107M010CH641BWAFL KEMET Corporation Check for Price Tantalum Capacitor, Polarized, Tantalum (dry/solid), 10V, 20% +Tol, 20% -Tol, 100uF, 2917, 593D107X0010D2TE3 vs T496D107M010CH641BWAFL
T495D107M010AN4095WAFL KEMET Corporation Check for Price CAPACITOR, TANTALUM, SOLID, 593D107X0010D2TE3 vs T495D107M010AN4095WAFL
T496D107M010BH62107280 KEMET Corporation Check for Price Tantalum Capacitor, Polarized, Tantalum (dry/solid), 10V, 20% +Tol, 20% -Tol, 100uF, 2917 593D107X0010D2TE3 vs T496D107M010BH62107280
595D107X0010D2T Vishay Sprague Check for Price CAPACITOR, TANTALUM, SOLID, POLARIZED, 10 V, 100 uF, SURFACE MOUNT, 3017, CHIP, ROHS COMPLIANT 593D107X0010D2TE3 vs 595D107X0010D2T
B45196L2107M409 KEMET Corporation Check for Price Tantalum Capacitor, Polarized, Tantalum (dry/solid), 10V, 20% +Tol, 20% -Tol, 100uF, Surface Mount, 2917, CHIP 593D107X0010D2TE3 vs B45196L2107M409
equivalents icon

593D107X0010D2TE3 Related Parts

593D107X0010D2TE3 Frequently Asked Questions (FAQ)

  • The recommended soldering temperature for the 593D107X0010D2TE3 capacitor is between 260°C to 280°C for a maximum of 10 seconds.

  • Yes, the 593D107X0010D2TE3 capacitor is suitable for high-frequency applications due to its low equivalent series resistance (ESR) and high self-resonant frequency.

  • The 593D107X0010D2TE3 capacitor is rated for operation up to 125°C, but it's not recommended for use in environments above 125°C without derating the voltage and current ratings.

  • The recommended storage condition for the 593D107X0010D2TE3 capacitor is in a dry, cool place with a relative humidity of 60% or less, and away from direct sunlight.

  • Yes, the 593D107X0010D2TE3 capacitor is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant.
