61082-202602LF by:
Amphenol Communications Solutions

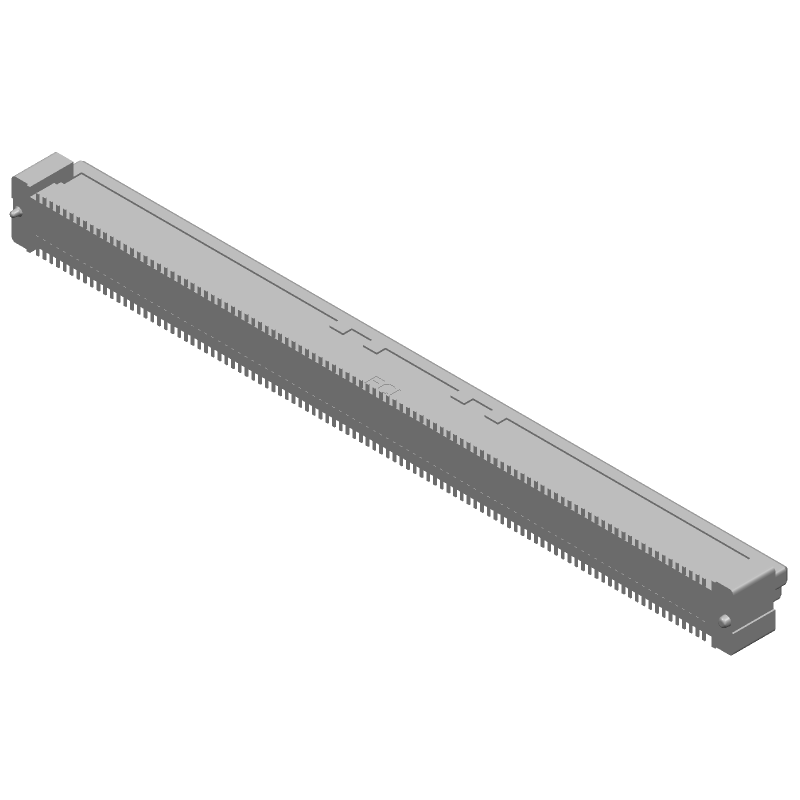

BergStak® 0.80mm Pitch, Receptacle, Vertical, Double Row, 200 Positions.

Part Details for 61082-202602LF by Amphenol Communications Solutions

Results Overview of 61082-202602LF by Amphenol Communications Solutions

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

61082-202602LF Information

61082-202602LF by Amphenol Communications Solutions is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Available Datasheets

Part # Manufacturer Description Datasheet
61082-202602LF Amphenol Communications Solutions BergStak® 0.80mm Pitch, Receptacle, Vertical, Double Row, 200 Positions.
61082-142402LF Amphenol Communications Solutions BergStak® 0.80mm Pitch, Receptacle, Vertical, Double Row, 140 Positions.
61082-041602PLF Amphenol Communications Solutions BergStak® 0.80mm Pitch, Receptacle, Vertical, Double Row, 40 Positions.

Price & Stock for 61082-202602LF

Part # Distributor Description Stock Price Buy
DISTI # 82R9860
Newark 61082-202602Lf-0.8Mm B To B Rec Assy/Tap/Rl Rohs Compliant: Yes |Amphenol Communications Solutions 61082-202602LF RoHS: Compliant Min Qty: 800 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 1 $7.1200
  • 1,000 $7.0800
  • 2,000 $6.9600
  • 4,000 $6.7100
  • 6,000 $6.5900
$6.5900 / $7.1200 Buy Now

US Tariff Estimator: 61082-202602LF by Amphenol Communications Solutions

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

61082-202602LF
Amphenol Communications Solutions
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for 61082-202602LF

61082-202602LF Part Data Attributes

Parametric Data
61082-202602LF Amphenol Communications Solutions
Buy Now Datasheet
Compare Parts:
61082-202602LF Amphenol Communications Solutions BergStak® 0.80mm Pitch, Receptacle, Vertical, Double Row, 200 Positions.
Rohs Code Yes
Part Life Cycle Code Active
Package Description Lead Free
Pin Count 200
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8536.69.40.40
Board Mounting Option Peg
Body Breadth 0.268 Inch
Body Depth 0.303 Inch
Body Length 3.378 Inch
Body/Shell Style Receptacle
Connector Type Board Stacking Connector
Contact Finish Mating Not Specified
Contact Gender Female
Contact Material Not Specified
Contact Pattern Rectangular
Contact Resistance 50 MΩ
Contact Style Bellowed Type
DIN Conformance No
Dielectric Withstanding Voltage 707vac V
Durability 100 Cycles
Filter Feature No
IEC Conformance No
Insertion Force-Max 0.9 N
Insulation Resistance 1000000000 Ω
Insulator Color Natural
Insulator Material Glass Filled Liquid Crystal Polymer
MIL Conformance No
Mating Contact Pitch 0.032 Inch
Mating Information Multiple Mating Parts Available
Mixed Contacts No
Mounting Option 1 Locking
Mounting Style Straight
Mounting Type Board
Number Of Connectors One
Number Of PCB Rows 2
Number of Rows Loaded 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -40 °C
Option General Purpose
PCB Contact Pattern Rectangular
PCB Contact Row Spacing 4.8 Mm
Plating Thickness Flash Inch
Polarization Key Polarized Housing
Rated Current (Signal) 0.8 A
Reference Standard Ul
Terminal Pitch 0.8 Mm
Termination Type Surface Mount
Total Number of Contacts 200
UL Flammability Code 94V-0
Withdrawl Force-Min 0.1 N

Alternate Parts for 61082-202602LF

This table gives cross-reference parts and alternative options found for 61082-202602LF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 61082-202602LF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
61082-203420PLF Amphenol FCi Check for Price Board Connector, 200 Contact(s), 2 Row(s), Female, Straight, 0.031 inch Pitch, Surface Mount Terminal, Locking, Receptacle 61082-202602LF vs 61082-203420PLF
61082-202526PLF Amphenol Communications Solutions Check for Price Board Connector, 200 Contact(s), 2 Row(s), Female, Straight, 0.031 inch Pitch, Surface Mount Terminal, Locking, Receptacle, 61082-202602LF vs 61082-202526PLF
61082-202520PLF Amphenol FCi Check for Price Board Connector, 200 Contact(s), 2 Row(s), Female, Straight, 0.031 inch Pitch, Surface Mount Terminal, Locking, Receptacle 61082-202602LF vs 61082-202520PLF
61082-203120P Amphenol FCi Check for Price Board Connector, 200 Contact(s), 2 Row(s), Female, Straight, 0.031 inch Pitch, Surface Mount Terminal, Locking, Receptacle 61082-202602LF vs 61082-203120P
61082-202500PLF Amphenol Communications Solutions Check for Price Board Connector, 200 Contact(s), 2 Row(s), Female, Straight, 0.031 inch Pitch, Surface Mount Terminal, Locking, Receptacle, 61082-202602LF vs 61082-202500PLF
61082-203606PLF Amphenol FCi Check for Price Board Connector, 200 Contact(s), 2 Row(s), Female, Straight, 0.031 inch Pitch, Surface Mount Terminal, Locking, Receptacle 61082-202602LF vs 61082-203606PLF
61082-203409PLF Amphenol Communications Solutions Check for Price Board Connector, 200 Contact(s), 2 Row(s), Female, Straight, 0.031 inch Pitch, Surface Mount Terminal, Locking, Receptacle, 61082-202602LF vs 61082-203409PLF
61082-202622LF Amphenol FCi Check for Price Board Connector, 200 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Receptacle, LEAD FREE 61082-202602LF vs 61082-202622LF
61082-203502LF Amphenol FCi Check for Price Board Connector, 200 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Receptacle, LEAD FREE 61082-202602LF vs 61082-203502LF
61082-202629PLF Amphenol FCi Check for Price Board Connector, 200 Contact(s), 2 Row(s), Female, Straight, 0.031 inch Pitch, Surface Mount Terminal, Locking, Receptacle 61082-202602LF vs 61082-202629PLF
