61201421621 Information
61201421621 by Wurth Elektronik is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.
Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.
Price & Stock for 61201421621
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
20X0889
|
Newark | Wire-To-Board Connector, Wr-Bhd Series, Through Hole, Header, 14, 2.54 Mm, Gold Plated Contacts Rohs Compliant: Yes |Wurth Elektronik 61201421621 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 3531 |
|
$0.7800 / $1.3700 | Buy Now |
|
DISTI #
71071389
|
RS | WR-BHD, 2.54MM PITCH 14 WAY 2 ROW SHROUDED STRAIGHT PCB HEADER, SURFACE MOUNT Min Qty: 1 Package Multiple: 1 Lead time: 4 Weeks, 0 Days Container: Bulk | 0 |
|
$0.6670 | RFQ |
|
|
Greenchips | Date Code: 19+/TW | 400 |
|
$0.3245 / $0.3964 | Buy Now |
|
|
Greenchips | Date Code: 18+/TW | 200 |
|
$0.3042 / $0.3716 | Buy Now |
US Tariff Estimator: 61201421621 by Wurth Elektronik
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for 61201421621
61201421621 CAD Models
-

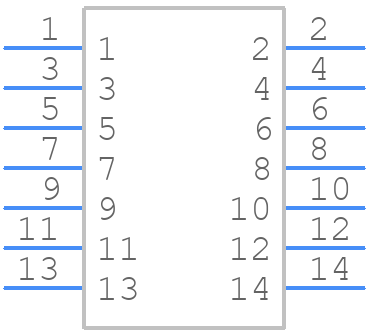

Part Symbol
-

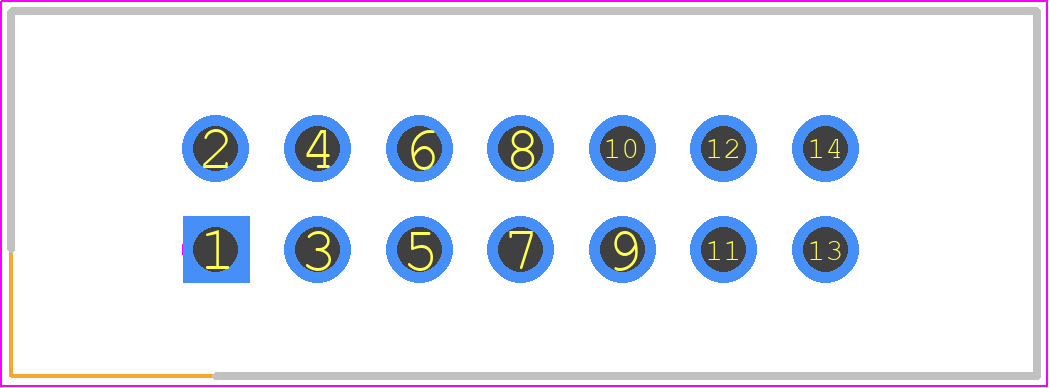

Footprint
-

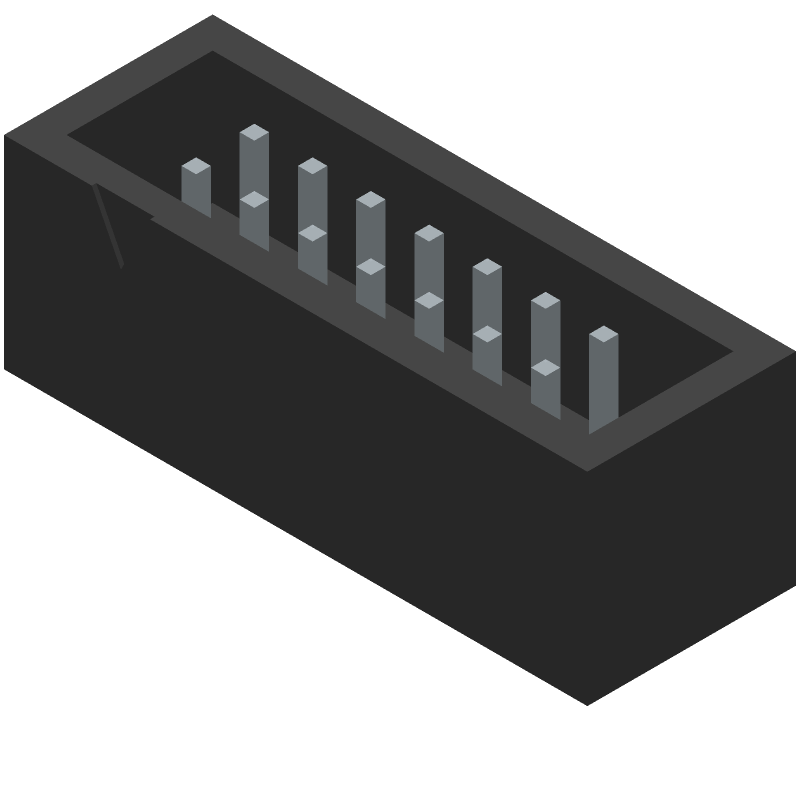

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
61201421621 Part Data Attributes
|
|
61201421621
Wurth Elektronik
Buy Now
Datasheet
|
Compare Parts:
61201421621
Wurth Elektronik
Board Connector, 14 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, ROHS COMPLIANT
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | Rohs Compliant | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.69.40.40 | |
| Connector Type | Board Connector | |
| Contact Finish Mating | Not Applicable | |
| Contact Finish Termination | Gold (Au) - With Nickel (Ni) Barrier | |
| Contact Gender | Male | |
| Contact Material | Copper Alloy | |
| DIN Conformance | No | |
| Filter Feature | No | |
| IEC Conformance | No | |
| JESD-609 Code | e4 | |
| MIL Conformance | No | |
| Mixed Contacts | No | |
| Mounting Style | Straight | |
| Mounting Type | Board | |
| Number Of Connectors | One | |
| Number of Rows Loaded | 2 | |
| Option | General Purpose | |
| Terminal Pitch | 2.54 Mm | |
| Termination Type | Solder | |
| Total Number of Contacts | 14 | |
| UL Flammability Code | 94V-0 |
