618009231121 Information
618009231121 by Wurth Elektronik is a D Type Connector.
D Type Connectors are under the broader part category of Connectors.
Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.
Price & Stock for 618009231121
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
16T0655
|
Newark | D Sub Connector, Right Angle, R/A Pcb Mount D Sub, De, Receptacle, 9, Solder Rohs Compliant: Yes |Wurth Elektronik 618009231121 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 1014 |
|
$1.9300 / $3.1900 | Buy Now |
|
DISTI #
71070086
|
RS | 9 WAY RIGHT ANGLE THROUGH HOLE PCB D-SUB CONNECTOR SOCKET, 2.77MM, 2.84MM PITCH Min Qty: 1 Package Multiple: 1 Container: Bulk | 0 |
|
$2.2400 / $2.7900 | RFQ |
|
|
Chip Stock | 9WayRightAngleThroughHolePCBD-subConnectorSocket | 2531 |
|
RFQ |
US Tariff Estimator: 618009231121 by Wurth Elektronik
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for 618009231121
618009231121 CAD Models
-

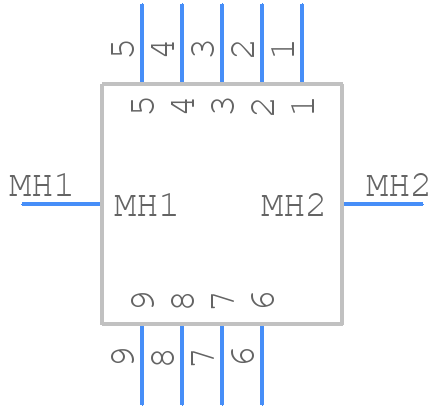

Part Symbol
-

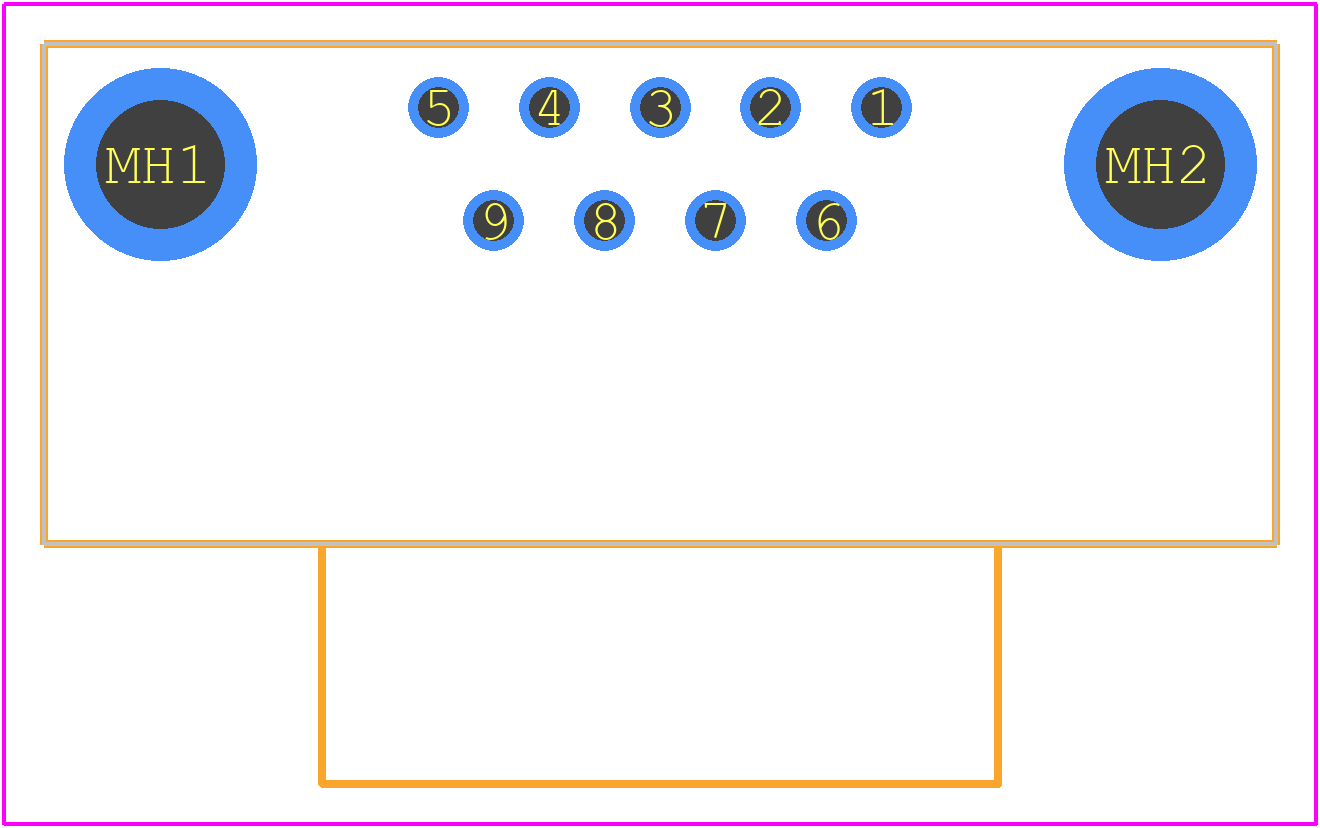

Footprint
-

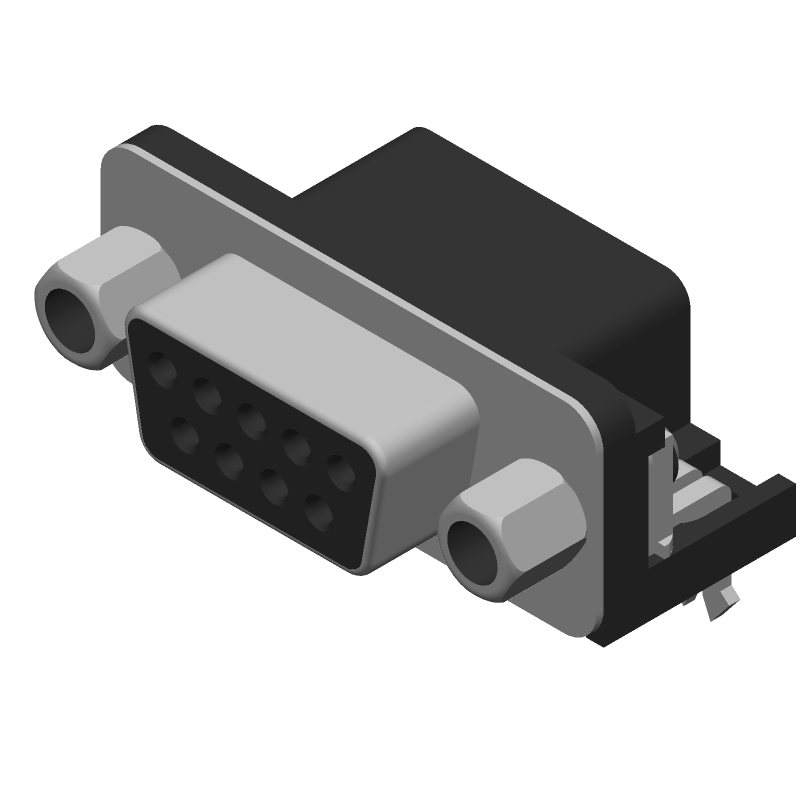

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
618009231121 Part Data Attributes
|
|
618009231121
Wurth Elektronik
Buy Now
Datasheet
|
Compare Parts:
618009231121
Wurth Elektronik
8.08mm Female Angled PCB Connector w. Hex Screw WR-DSUB
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Reach Compliance Code | Not Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.69.40.30 | |
| Additional Feature | Shielded | |
| Board Mounting Option | Split Board Lock | |
| Body Breadth | 0.492 Inch | |
| Body Depth | 0.488 Inch | |
| Body Length | 1.213 Inch | |
| Connector Type | D Subminiature Connector | |
| Contact Design | Stamped | |
| Contact Finish Mating | Not Applicable | |
| Contact Finish Termination | Gold (Au) | |
| Contact Gender | Female | |
| Contact Material | Not Applicable | |
| Contact Pattern | Staggered | |
| Contact Resistance | 30 MΩ | |
| Contact Style | Rnd Pin-Skt | |
| DIN Conformance | No | |
| Dielectric Withstanding Voltage | 1000vac V | |
| Empty Shell | No | |
| Filter Feature | No | |
| IEC Conformance | No | |
| Insulation Resistance | 5000000000 Ω | |
| Insulator Color | Black | |
| Insulator Material | Polybutylene Terephthalate | |
| JESD-609 Code | e4 | |
| MIL Conformance | No | |
| Mating Contact Pitch | 0.109 Inch | |
| Mating Contact Row Spacing | 0.112 Inch | |
| Mixed Contacts | No | |
| Mounting Option 1 | #4-40 Unc | |
| Mounting Option 2 | Screw | |
| Mounting Style | Right Angle | |
| Mounting Type | Board | |
| Number Of Connectors | One | |
| Number Of PCB Rows | 2 | |
| Number of Rows Loaded | 2 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -55 °C | |
| Option | General Purpose | |
| PCB Contact Pattern | Staggered | |
| PCB Contact Row Spacing | 2.84 Mm | |
| Rated Current (Signal) | 3 A | |
| Reference Standard | Ul | |
| Shell Finish | Nickel | |
| Shell Material | Steel | |
| Shell Size | 1/E | |
| Terminal Length | 0.125 Inch | |
| Terminal Pitch | 2.77 Mm | |
| Termination Type | Solder | |
| Total Number of Contacts | 9 | |
| UL Flammability Code | 94V-0 |
