Connectors / Headers and Edge Type Connectors / 62501421621
Datasheets
62501421621 by: Wurth Elektronik

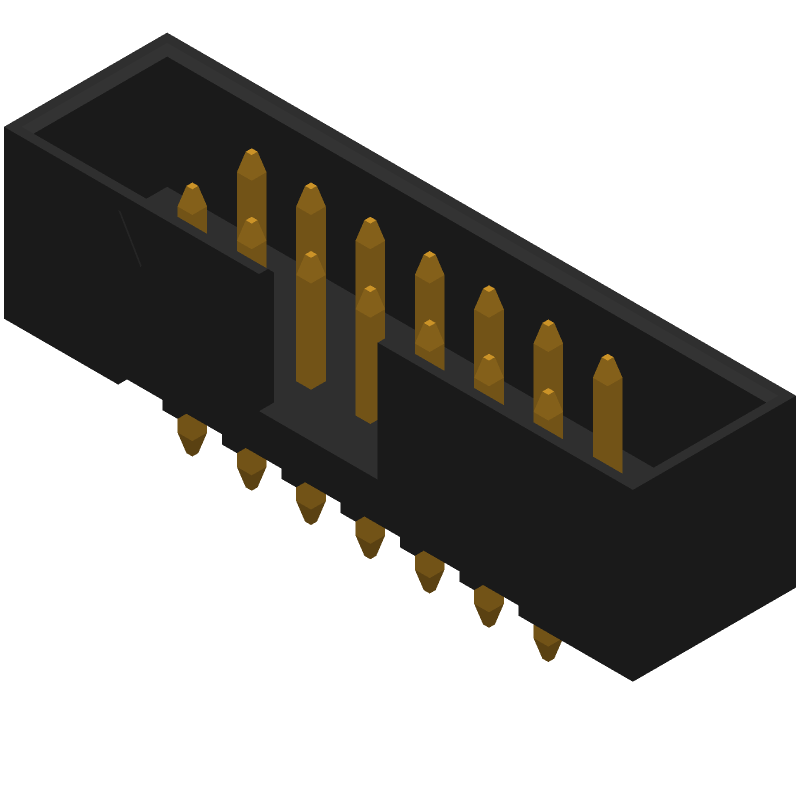

2.00mm Male Box Header WR-BHD

Part Details for 62501421621 by Wurth Elektronik

Results Overview of 62501421621 by Wurth Elektronik

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

62501421621 Information

62501421621 by Wurth Elektronik is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Price & Stock for 62501421621

Part # Distributor Description Stock Price Buy
DISTI # 75AJ1633
Newark Conn, Header, 14Pos, 2Row, 2Mm Rohs Compliant: Yes |Wurth Elektronik 62501421621 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk 135
  • 1 $1.6300
  • 10 $1.6200
  • 25 $1.6000
  • 50 $1.5900
  • 100 $1.5000
  • 500 $1.4200
  • 1,000 $1.3400
$1.3400 / $1.6300 Buy Now
Chip-Germany GmbH   RoHS: Not Compliant 107
RFQ

Part Details for 62501421621

62501421621 Part Data Attributes

Parametric Data
62501421621 Wurth Elektronik
Buy Now Datasheet
Compare Parts:
62501421621 Wurth Elektronik 2.00mm Male Box Header WR-BHD
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer WUERTH ELEKTRONIK GMBH & CO KG
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8536.69.40.40
Samacsys Manufacturer Würth Elektronik
Additional Feature ROHS COMPLIANT
Body Breadth 0.217 inch
Body Depth 0.22 inch
Body Length 0.835 inch
Body/Shell Style RECEPTACLE
Connector Type BOARD CONNECTOR
Contact Finish Mating NOT APPLICABLE
Contact Gender MALE
Contact Material NOT APPLICABLE
Contact Pattern RECTANGULAR
Contact Resistance 20 mΩ
Contact Style SQ PIN-SKT
Dielectric Withstanding Voltage 500VAC V
Filter Feature NO
Insulation Resistance 1000000000 Ω
Insulator Color BLACK
Insulator Material POLYBUTYLENE TEREPHTHALATE
Mating Contact Pitch 0.079 inch
Mating Contact Row Spacing 0.079 inch
Mixed Contacts NO
Mounting Option 1 LOCKING
Mounting Style STRAIGHT
Mounting Type BOARD
Number Of Connectors ONE
Number Of PCB Rows 2
Number of Rows Loaded 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -40 °C
PCB Contact Pattern RECTANGULAR
PCB Contact Row Spacing 2.0066 mm
Polarization Key POLARIZED HOUSING
Rated Current (Signal) 2 A
Reference Standard UL
Terminal Length 0.11 inch
Terminal Pitch 2.0066 mm
Termination Type SOLDER
Total Number of Contacts 14

Alternate Parts for 62501421621

This table gives cross-reference parts and alternative options found for 62501421621. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 62501421621, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
ZP3-080-14-G2T Yamaichi Electronics Co Ltd Check for Price Board Connector, 14 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Receptacle 62501421621 vs ZP3-080-14-G2T
ZP3-085-14-G2T Yamaichi Electronics Co Ltd Check for Price Board Connector, 14 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Receptacle 62501421621 vs ZP3-085-14-G2T
ZP6-110-14-G2T Yamaichi Electronics Co Ltd Check for Price Board Connector, 14 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Receptacle 62501421621 vs ZP6-110-14-G2T
ZP3-105-14-G2T Yamaichi Electronics Co Ltd Check for Price Board Connector, 14 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Receptacle 62501421621 vs ZP3-105-14-G2T
ZP3-045-14-G2T Yamaichi Electronics Co Ltd Check for Price Board Connector, 14 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Receptacle 62501421621 vs ZP3-045-14-G2T
SLS-014-D762/00-55/2 E-tec Interconnect Ltd Check for Price Board Connector, 14 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Receptacle 62501421621 vs SLS-014-D762/00-55/2
ZP3-090-14-G2T Yamaichi Electronics Co Ltd Check for Price Board Connector, 14 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Receptacle 62501421621 vs ZP3-090-14-G2T
ZP3-070-14-G2T Yamaichi Electronics Co Ltd Check for Price Board Connector, 14 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Receptacle 62501421621 vs ZP3-070-14-G2T
ZP3-100-14-G2T Yamaichi Electronics Co Ltd Check for Price Board Connector, 14 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Receptacle 62501421621 vs ZP3-100-14-G2T
ZP3-055-14-G2T Yamaichi Electronics Co Ltd Check for Price Board Connector, 14 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Receptacle 62501421621 vs ZP3-055-14-G2T

62501421621 Related Parts

62501421621 Frequently Asked Questions (FAQ)

  • The recommended PCB footprint for the 62501421621 can be found in the Wurth Elektronik's PCB Library, which provides a downloadable footprint in various formats, including Eagle, Altium, and KiCad.

  • To ensure the 62501421621 operates within its specified temperature range, ensure proper thermal management, such as providing adequate airflow, using thermal interfaces, and avoiding high-power components nearby.

  • The maximum allowable voltage for the 62501421621 is 50V, as specified in the datasheet. Exceeding this voltage may damage the component.

  • Yes, the 62501421621 is designed to withstand vibrations up to 10g, making it suitable for use in high-vibration environments, such as in automotive or industrial applications.

  • To ensure optimal reliability, handle the 62501421621 by its body or pins, avoiding touching the component's leads or electrical contacts to prevent damage from electrostatic discharge (ESD).
