640452-4 by: TE Connectivity

(640452-4) 04P MTA100 HDR ASSY SQ STR

Part Details for 640452-4 by TE Connectivity

Results Overview of 640452-4 by TE Connectivity

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

640452-4 Information

640452-4 by TE Connectivity is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Price & Stock for 640452-4

Part # Distributor Description Stock Price Buy
DISTI # 77AC0121
Newark Flat Header 4P Straight Post Tin |Amp Te Connectivity 640452-4 RoHS: Not Compliant Min Qty: 350 Package Multiple: 1 Date Code: 0 Container: Bulk 49708
  • 100 $0.2850
  • 500 $0.2530
  • 1,000 $0.2210
  • 2,500 $0.2020
$0.2020 / $0.2850 Buy Now
DISTI # 640452-4
Avnet Americas Conn Unshrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole - Bag (Alt: 640452-4) COO: China RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 12 Weeks, 2 Days Container: Bag 0
  • 5,000 $0.2017
  • 10,000 $0.1846
  • 25,000 $0.1784
  • 50,000 $0.1774
  • 100,000 $0.1765
$0.1765 / $0.2017 Buy Now
DISTI # 70083773
RS HEADER, CONN, INTERCONNECT SYSTEM, PCB PLUG,4 CONT, SOLDER, MTA-100 SERIES, STRAIGHT Min Qty: 5000 Package Multiple: 1 Container: Bulk 0
  • 5,000 $0.4360
  • 25,000 $0.4010
  • 50,000 $0.3480
$0.3480 / $0.4360 RFQ
TE Connectivity 04P MTA100 HDR ASSY SQ STR PCB Connector Type: PCB Mount Header PCB Mount Orientation: Vertical Connector System: Wire-to-Board Number of Positions: 4 Number of Rows: 1 PCB Mount Header Vertical Wire-to-Board 4 | PCB Header: Polter & Vertical & Unshrouded & Mating Alignment | Part Number: 640452-4 | Internal Number: 640452-4 | TE Connectivity RoHS: Compliant Min Qty: 1 22263
  • 1 $0.4700
  • 10 $0.3700
  • 100 $0.3000
  • 1,000 $0.2200
$0.2200 / $0.4700 Buy Now
DISTI # AMP640452-4
Heilind Electronics 04P MTA100 HDR ASSY SQ STR Americas - 0 in Stock
  • 5,000 $0.2139
  • 7,100 $0.2107
  • 35,500 $0.1700
$0.1700 / $0.2139 Buy Now
DISTI # 6404524-TEC-0
TME 640452-4 Min Qty: 325 49650
  • 325 $0.2398
  • 1,700 $0.2367
  • 3,300 $0.2320
  • 5,000 $0.2227
  • 10,000 $0.2149
  • 25,000 $0.1791
$0.1791 / $0.2398 Buy Now
DISTI # AMP640452-4
Interstate Connecting Components 04P MTA100 HDR ASSY SQ STR 0
  • 5,000 $0.2139
  • 7,100 $0.2107
  • 35,500 $0.1700
$0.1700 / $0.2139 Buy Now
Powell Electronics MTA 100 - Header Asse Min Qty: 1 28
  • 1 $1.0260
  • 5,000 $0.7182
  • 10,000 $0.6950
  • 500,000 $0.5792
$0.5792 / $1.0260 Buy Now
DISTI # 000000000000675702
Sager Headers & Wire Housings FLAT HEADER 4P Straight Post tin Min Qty: 5000 0
  • 5,000 $0.1961
$0.1961 Buy Now
Chip 1 Exchange INSTOCK 65075
RFQ
DISTI # 640452-4
Avnet Abacus Conn Unshrouded Header HDR 4 POS 254mm Solder ST ThruHole (Alt: 640452-4) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 18 Weeks, 0 Days Abacus - 0
Buy Now
DISTI # 640452-4
Avnet Abacus Conn Unshrouded Header HDR 4 POS 254mm Solder ST ThruHole (Alt: 640452-4) RoHS: Compliant Min Qty: 650 Package Multiple: 1 Lead time: 20 Weeks, 0 Days Abacus - 0
Buy Now
DISTI # 640452-4
Avnet Asia Conn Unshrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole (Alt: 640452-4) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 6 Weeks, 3 Days 0
  • 5,000 $0.1791
  • 10,000 $0.1752
  • 15,000 $0.1614
  • 25,000 $0.1475
  • 50,000 $0.1431
$0.1431 / $0.1791 Buy Now
Component Electronics, Inc SIPHDR 2.5MM 4P BRST 4/7 TIN WHT 10
  • 1 $0.3800
  • 100 $0.2900
  • 1,000 $0.2500
$0.2500 / $0.3800 Buy Now
LCSC Through HoleP1mm Headers Male Pins RoHS 350
  • 1 $0.2258
  • 10 $0.2205
  • 30 $0.2166
  • 100 $0.2140
$0.2140 / $0.2258 Buy Now

US Tariff Estimator: 640452-4 by TE Connectivity

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

640452-4
TE Connectivity
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for 640452-4

640452-4 CAD Models

  • Part Symbol

    schematic symbol

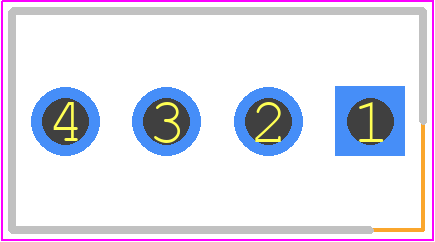

  • Footprint

    pcb footprint

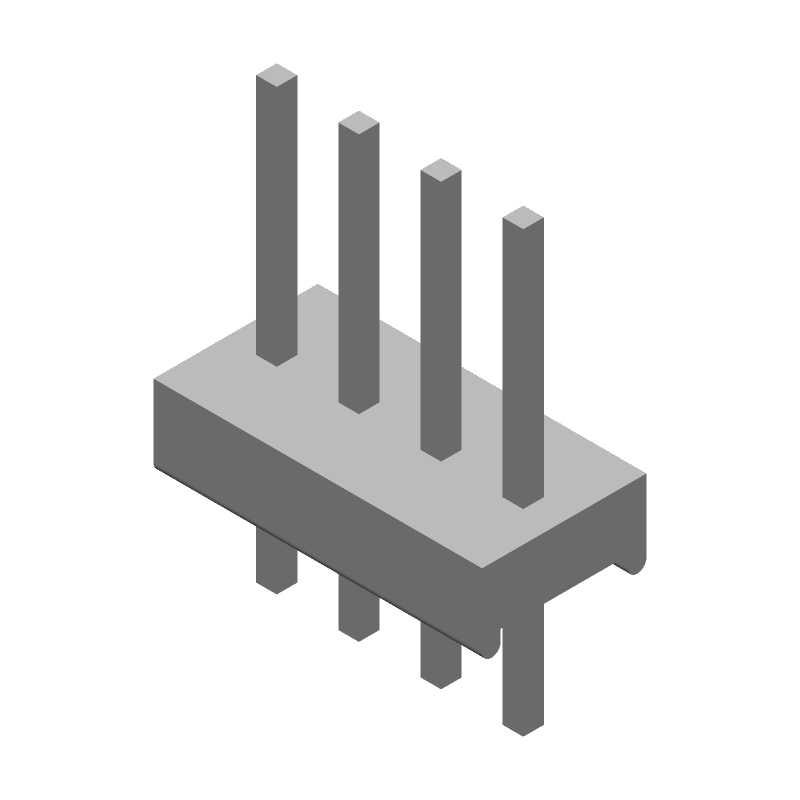

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

640452-4 Part Data Attributes

Parametric Data
640452-4 TE Connectivity
Buy Now Datasheet
Compare Parts:
640452-4 TE Connectivity (640452-4) 04P MTA100 HDR ASSY SQ STR
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer TE CONNECTIVITY LTD
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8536.69.40.40
Factory Lead Time 12 Weeks, 4 Days
Samacsys Manufacturer TE Connectivity
Additional Feature AMP
Body Breadth 0.2 inch
Body Depth 0.1 inch
Body Length 0.5 inch
Body/Shell Style PLUG
Connector Type BOARD CONNECTOR
Contact Finish Mating NOT APPLICABLE
Contact Finish Termination Tin (Sn)
Contact Gender MALE
Contact Material NOT APPLICABLE
Contact Pattern RECTANGULAR
Contact Style SQ PIN-SKT
DIN Conformance NO
EMI Shielded NO
Empty Shell YES
Filter Feature NO
IEC Conformance NO
Insulator Color NATURAL
Insulator Material GLASS FILLED POLYESTER
JESD-609 Code e3
MIL Conformance NO
Mains Connector Rating 5A
Mating Contact Pitch 0.1 inch
Mating Information MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts NO
Mounting Style STRAIGHT
Mounting Type BOARD
Number Of Connectors ONE
Number Of PCB Rows 1
Number of Ports 1
Number of Rows Loaded 1
Operating Temperature-Max 105 °C
Operating Temperature-Min -55 °C
Option GENERAL PURPOSE
PCB Contact Pattern RECTANGULAR
Panel Mount NO
Plating Thickness 150u inch
Rated Current (Signal) 5 A
Reference Standard CSA, LR, U
Terminal Length 0.14 inch
Terminal Pitch 2.54 mm
Termination Type SOLDER
Total Number of Contacts 4
UL Flammability Code 94V-0

Alternate Parts for 640452-4

This table gives cross-reference parts and alternative options found for 640452-4. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 640452-4, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
TMS-105-54-S-S-004 Samtec Inc Check for Price Board Connector, 4 Contact(s), 1 Row(s), Male, Straight, 0.05 inch Pitch, Solder Terminal, Locking, Black Insulator, 640452-4 vs TMS-105-54-S-S-004
7506P040000 Leoco USA Corp Check for Price Board Connector, 4 Contact(s), 1 Row(s), Male, Straight, 0.197 inch Pitch, Solder Terminal, Receptacle 640452-4 vs 7506P040000
75160-170-04LF Amphenol FCi Check for Price Board Connector, 4 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle, ROHS COMPLIANT 640452-4 vs 75160-170-04LF
75160-302-04 Amphenol FCi Check for Price Board Connector, 4 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle 640452-4 vs 75160-302-04
75160-104-04LF Amphenol FCi Check for Price Board Connector, 4 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle, ROHS COMPLIANT 640452-4 vs 75160-104-04LF
647116-4 TE Connectivity Check for Price Board Connector, 4 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator, Plug 640452-4 vs 647116-4
3-644729-4 TE Connectivity Check for Price Board Connector, 4 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator 640452-4 vs 3-644729-4
75160-370-04LF Amphenol FCi Check for Price Board Connector, 4 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle, ROHS COMPLIANT 640452-4 vs 75160-370-04LF
75160-326-04LF Amphenol Communications Solutions Check for Price Board Connector, 4 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle, ROHS COMPLIANT 640452-4 vs 75160-326-04LF
75160-806-04LF Amphenol FCi Check for Price Board Connector, 4 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle, ROHS COMPLIANT 640452-4 vs 75160-806-04LF
equivalents icon

640452-4 Related Parts

640452-4 Frequently Asked Questions (FAQ)

  • The recommended torque value is 0.5-0.7 Nm (5-7 in-lbs) for the screw terminals on the 640452-4 connector.

  • Yes, the 640452-4 connector is designed to withstand high-vibration environments, but it's recommended to follow TE Connectivity's guidelines for vibration testing and to ensure proper mounting and securing of the connector.

  • The maximum operating temperature for the 640452-4 connector is 125°C (257°F), but it's recommended to derate the connector's performance at temperatures above 100°C (212°F).

  • The 640452-4 connector has a IP67 rating, which means it can withstand temporary immersion in water up to 1 meter (3.3 feet) for 30 minutes. However, it's recommended to follow TE Connectivity's guidelines for environmental sealing and to ensure proper sealing and protection of the connector.

  • The recommended wire size for the 640452-4 connector is 24-18 AWG (0.25-1.5 mm²), and the recommended wire type is a stranded or solid copper wire with a temperature rating of at least 105°C (221°F).
