64900311122 Information
64900311122 by Wurth Elektronik is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.
Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.
Price & Stock for 64900311122
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
96T7994
|
Newark | Rectangular Power Connector, Wr-Mpc4 Series, Through Hole, Header, 3, 4.2 Mm, Pin Rohs Compliant: Yes |Wurth Elektronik 64900311122 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 80 |
|
$1.3000 / $1.6900 | Buy Now |
|
DISTI #
71071752
|
RS | WR-MPC4, 4.2MM PITCH 3 WAY 1 ROW SHROUDED STRAIGHT PCB HEADER, THROUGH HOLE Min Qty: 1 Package Multiple: 1 Lead time: 4 Weeks, 0 Days Container: Bulk | 0 |
|
$0.8010 | RFQ |
US Tariff Estimator: 64900311122 by Wurth Elektronik
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for 64900311122
64900311122 CAD Models
-
Part Symbol
-

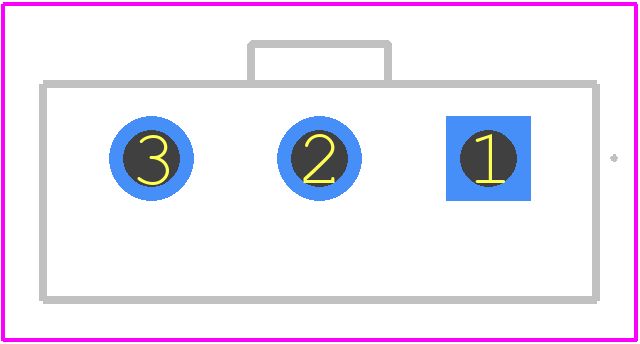

Footprint
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
64900311122 Part Data Attributes
|
|
64900311122
Wurth Elektronik
Buy Now
Datasheet
|
Compare Parts:
64900311122
Wurth Elektronik
4.20mm Male Single Row Vertical Header WR-MPC4
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.69.40.40 | |
| Additional Feature | Rohs Compliant | |
| Body Breadth | 0.213 Inch | |
| Body Depth | 0.504 Inch | |
| Body Length | 0.543 Inch | |
| Body/Shell Style | Receptacle | |
| Connector Type | Board Connector | |
| Contact Finish Mating | Not Applicable | |
| Contact Finish Termination | Tin (Sn) - With Nickel (Ni) Barrier | |
| Contact Gender | Male | |
| Contact Material | Not Applicable | |
| Contact Pattern | Rectangular | |
| Contact Resistance | 10 MΩ | |
| Contact Style | Sq Pin-Skt | |
| Dielectric Withstanding Voltage | 1500vac V | |
| Durability | 25 Cycles | |
| Filter Feature | No | |
| Insulation Resistance | 1000000000 Ω | |
| Insulator Color | White | |
| Insulator Material | Polyamide | |
| JESD-609 Code | e3 | |
| Mating Contact Pitch | 0.165 Inch | |
| Mixed Contacts | No | |
| Mounting Option 1 | Locking | |
| Mounting Style | Straight | |
| Mounting Type | Board | |
| Number Of Connectors | One | |
| Number Of PCB Rows | 1 | |
| Number of Rows Loaded | 1 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -40 °C | |
| PCB Contact Pattern | Rectangular | |
| Polarization Key | Polarized Housing | |
| Rated Current (Signal) | 9 A | |
| Reference Standard | Ul | |
| Terminal Length | 0.138 Inch | |
| Terminal Pitch | 4.191 Mm | |
| Termination Type | Solder | |
| Total Number of Contacts | 3 |
