66953-008LF Information
66953-008LF by Amphenol Communications Solutions is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.
Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| 67273-008LF | Amphenol Communications Solutions | 67273-008LF-VERTICAL GUIDE PIN SLOTT | |
| 68664-008LF | Amphenol Communications Solutions | 68664-008LF-CUS HDR STR 2X10 | |
| 10122460-008LF | Amphenol Communications Solutions | 10122460-008LF-PWR LO PRO RAH 15S+2P |
Price & Stock for 66953-008LF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
06M1696
|
Newark | Board-Board Connector Receptacle, 16 Position, 2Row, Connector Systems:Board-To-Board, Pitch Spacing:2.54Mm, No. Of Rows:2Rows, No. Of Contacts:16Contacts, Connector Mounting:Through Hole Mount, Product Range:Fci Pv 66953 Series Rohs Compliant: Yes |Amphenol Communications Solutions 66953-008LF RoHS: Compliant Min Qty: 1450 Package Multiple: 1 Date Code: 1 Container: Bulk | 0 |
|
$2.3600 | Buy Now |
US Tariff Estimator: 66953-008LF by Amphenol Communications Solutions
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for 66953-008LF

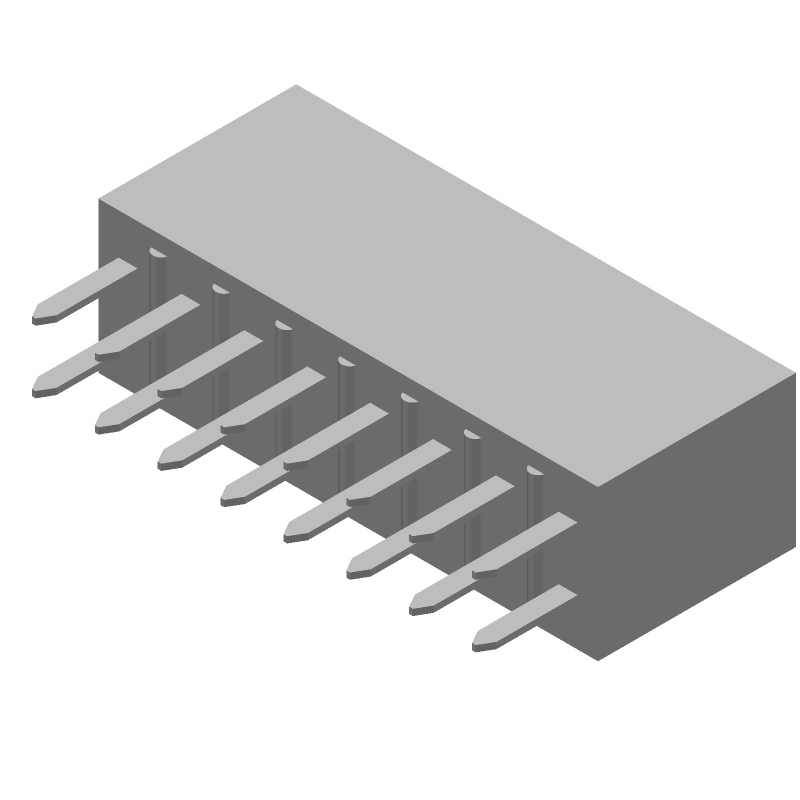

66953-008LF CAD Models
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
66953-008LF Part Data Attributes
|
|
66953-008LF
Amphenol Communications Solutions
Buy Now
Datasheet
|
Compare Parts:
66953-008LF
Amphenol Communications Solutions
Dubox® 2.54mm, Board to Board Connector, PCB Mounted Receptacle, Vertical, Through Mount, Top Entry, Double Row, 16 Position ,2.54mm (0.100in) Pitch
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | AMPHENOL COMMUNICATIONS SOLUTIONS | |
| Package Description | LEAD FREE | |
| Pin Count | 16 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.69.40.40 | |
| Samacsys Manufacturer | Amphenol Communications Solutions | |
| Connector Type | BOARD CONNECTOR | |
| Contact Finish Mating | GOLD (30) OVER NICKEL (50) | |
| Contact Finish Termination | TIN OVER NICKEL | |
| Contact Gender | FEMALE | |
| Contact Material | BRASS | |
| DIN Conformance | NO | |
| Filter Feature | NO | |
| IEC Conformance | NO | |
| JESD-609 Code | e3 | |
| MIL Conformance | NO | |
| Mixed Contacts | NO | |
| Mounting Style | STRAIGHT | |
| Mounting Type | BOARD | |
| Number Of Connectors | ONE | |
| Number of Rows Loaded | 2 | |
| Option | GENERAL PURPOSE | |
| Terminal Pitch | 2.54 mm | |
| Termination Type | SOLDER | |
| Total Number of Contacts | 16 | |
| UL Flammability Code | 94V-0 |
Alternate Parts for 66953-008LF
This table gives cross-reference parts and alternative options found for 66953-008LF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 66953-008LF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| 90151-2216 | Molex | $1.0000 | Board Connector, 16 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Plug, | 66953-008LF vs 90151-2216 |
| 90151-2116 | Molex | $2.3630 | Board Connector, 16 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Plug, | 66953-008LF vs 90151-2116 |
| 66953-108 | Amphenol FCi | Check for Price | Board Connector | 66953-008LF vs 66953-108 |
| 66953-008 | Amphenol FCi | Check for Price | Board Connector, 16 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Blue Insulator, Plug, | 66953-008LF vs 66953-008 |
| 90151-2316 | Molex | Check for Price | Board Connector, 16 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Plug, | 66953-008LF vs 90151-2316 |
66953-008LF Frequently Asked Questions (FAQ)
-
The recommended torque for mating and unmating the 66953-008LF connector is 0.5-1.5 Nm (4-12 in-lbs). However, it's essential to consult the specific application requirements and follow the manufacturer's guidelines.
-
Yes, the 66953-008LF connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 standard for vibration resistance, making it suitable for applications in the transportation, industrial, and military sectors.
-
The 66953-008LF connector is designed to operate in a wide range of temperatures (-40°C to 125°C) and humidity levels. However, it's crucial to ensure that the connector is properly sealed and mated to maintain its environmental resistance.
-
The 66953-008LF connector is rated for a minimum of 500 mating cycles. However, the actual number of mating cycles may vary depending on the application, environment, and usage.
-
The 66953-008LF connector is designed to be compatible with other connectors that meet the same industry standards (e.g., MIL-DTL-55302). However, it's essential to verify compatibility with specific connectors from other manufacturers before use.
