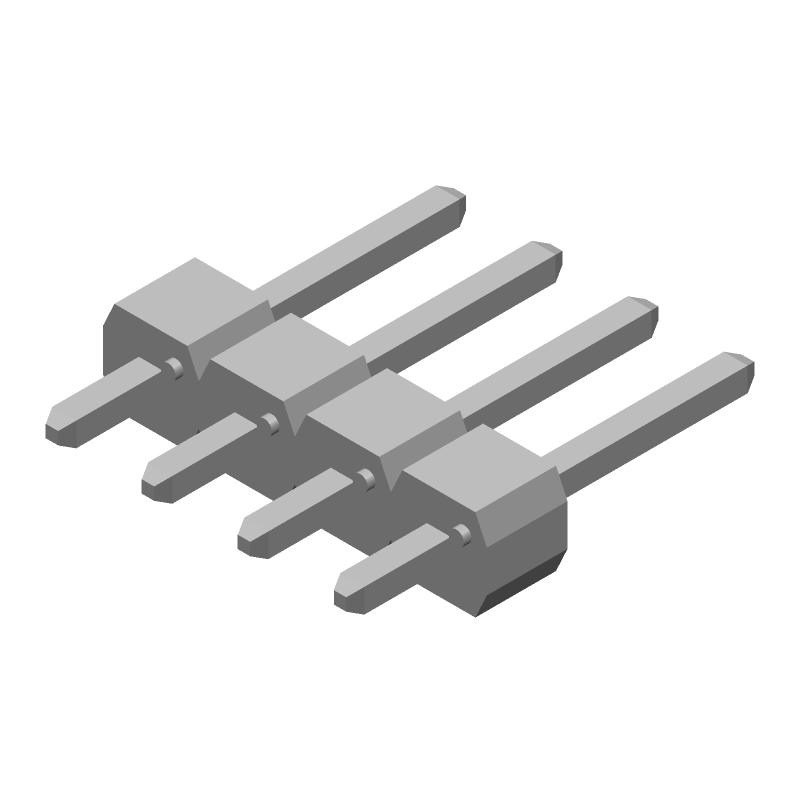

68000-104HLF by:
Amphenol Communications Solutions

BergStik®, Board to Board connector, Unshrouded Header, Through Hole, Single Row, 4 Positions, 2.54 mm Pitch, Vertical, 5.84 mm (0.23 in.) Mating, 2.41 mm (0.095 in.) Tail

Part Details for 68000-104HLF by Amphenol Communications Solutions

Results Overview of 68000-104HLF by Amphenol Communications Solutions

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

68000-104HLF Information

68000-104HLF by Amphenol Communications Solutions is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Available Datasheets

Part # Manufacturer Description Datasheet
68000-104HLF Amphenol Communications Solutions BergStik®, Board to Board connector, Unshrouded Header, Through Hole, Single Row, 4 Positions, 2.54 mm Pitch, Vertical, 5.84 mm (0.23 in.) Mating, 2.41 mm (0.095 in.) Tail
68000-401HLF Amphenol Communications Solutions BergStik®, Board to Board connector, Unshrouded Header, Through Hole, Single Row, 1 Positions, 2.54 mm Pitch, Vertical, 5.84 mm (0.23 in.) Mating, 2.41 mm (0.095 in.) Tail
68000-232HLF Amphenol Communications Solutions BergStik®, Board to Board connector, Unshrouded Header, Through Hole, Single Row, 32 Positions, 2.54 mm Pitch, Vertical, 5.84 mm (0.23 in.) Mating, 2.41 mm (0.095 in.) Tail

Price & Stock for 68000-104HLF

Part # Distributor Description Stock Price Buy
DISTI # 41M1621
Newark Board-Board Connector Header, 4 Position, 1Row, Connector Systems:Board-To-Board, Pitch Spacing:2.54Mm, No. Of Rows:1Rows, No. Of Contacts:4Contacts, Contact Termination Type:Through Hole, Product Range:Fci Bergstik Ii 68000 Series Rohs Compliant: Yes |Amphenol Communications Solutions 68000-104HLF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 7274
  • 1 $0.3920
  • 10 $0.3230
  • 25 $0.3100
  • 50 $0.3010
  • 100 $0.2910
  • 250 $0.2710
  • 500 $0.2670
  • 1,000 $0.2630
$0.2630 / $0.3920 Buy Now

US Tariff Estimator: 68000-104HLF by Amphenol Communications Solutions

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

68000-104HLF
Amphenol Communications Solutions
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for 68000-104HLF

68000-104HLF Part Data Attributes

Parametric Data
68000-104HLF Amphenol Communications Solutions
Buy Now Datasheet
Compare Parts:
68000-104HLF Amphenol Communications Solutions BergStik®, Board to Board connector, Unshrouded Header, Through Hole, Single Row, 4 Positions, 2.54 mm Pitch, Vertical, 5.84 mm (0.23 in.) Mating, 2.41 mm (0.095 in.) Tail
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer AMPHENOL COMMUNICATIONS SOLUTIONS
Package Description LEAD FREE
Pin Count 4
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8536.69.40.40
Samacsys Manufacturer Amphenol Communications Solutions
Additional Feature BERGSTRIP
Body Breadth 0.095 inch
Body Depth 0.1 inch
Body Length 0.4 inch
Connector Type BOARD CONNECTOR
Contact Finish Mating GOLD (30) OVER NICKEL (50)/GOLD FLASH OVER PALLADIUM NICKEL (30)
Contact Gender MALE
Contact Material PHOSPHOR BRONZE
Contact Pattern RECTANGULAR
Contact Style SQ PIN-SKT
DIN Conformance NO
Filter Feature NO
IEC Conformance NO
Insulator Material PLASTIC
JESD-609 Code e4
MIL Conformance NO
Mating Contact Pitch 0.1 inch
Mixed Contacts NO
Mounting Option 1 LOCKING
Mounting Style STRAIGHT
Mounting Type BOARD
Number Of Connectors ONE
Number Of PCB Rows 1
Number of Rows Loaded 1
Operating Temperature-Max 130 °C
Operating Temperature-Min -65 °C
Option GENERAL PURPOSE
PCB Contact Pattern RECTANGULAR
Rated Current (Signal) 3 A
Terminal Pitch 2.54 mm
Termination Type SOLDER
Total Number of Contacts 4
UL Flammability Code 94V-0

Alternate Parts for 68000-104HLF

This table gives cross-reference parts and alternative options found for 68000-104HLF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 68000-104HLF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
68000-204HLF Amphenol Communications Solutions Check for Price BergStik®, Board to Board connector, Unshrouded Header, Through Hole, Single Row, 4 Positions, 2.54 mm Pitch, Vertical, 5.84 mm (0.23 in.) Mating, 2.41 mm (0.095 in.) Tail 68000-104HLF vs 68000-204HLF
68000-704HLF Amphenol FCi Check for Price Board Connector, 4 Contact(s), 1 Row(s), Male, Straight, Solder Terminal, LEAD FREE 68000-104HLF vs 68000-704HLF
68000-304HLF Amphenol Communications Solutions Check for Price Board Connector, 4 Contact(s), 1 Row(s), Male, Straight, Solder Terminal, LEAD FREE 68000-104HLF vs 68000-304HLF
68000-904HLF Amphenol FCi Check for Price Board Connector, 4 Contact(s), 1 Row(s), Male, Straight, Solder Terminal, LEAD FREE 68000-104HLF vs 68000-904HLF
68000-104HLF Amphenol FCi Check for Price Board Connector, 4 Contact(s), 1 Row(s), Male, Straight, Solder Terminal, LEAD FREE 68000-104HLF vs 68000-104HLF
68000-104 Amphenol FCi Check for Price Board Connector, 4 Contact(s), 1 Row(s), Male, Straight, Solder Terminal 68000-104HLF vs 68000-104
68000-704HLF Amphenol Communications Solutions Check for Price Board Connector, 4 Contact(s), 1 Row(s), Male, Straight, Solder Terminal, LEAD FREE 68000-104HLF vs 68000-704HLF
68000-304 Amphenol Communications Solutions Check for Price Board Connector, 4 Contact(s), 1 Row(s), Male, Straight, Solder Terminal, 68000-104HLF vs 68000-304
68000-304 Amphenol FCi Check for Price Board Connector, 4 Contact(s), 1 Row(s), Male, Straight, Solder Terminal 68000-104HLF vs 68000-304
68000-304H Amphenol Communications Solutions Check for Price Board Connector, 4 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle, 68000-104HLF vs 68000-304H
Part Number Manufacturer Composite Price Description Compare
5-146288-4 TE Connectivity Check for Price CONNECTOR, 4 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER 68000-104HLF vs 5-146288-4
8614-00-04-1-Y0-2-318-LF Amphenol FCi Check for Price Board Connector, 4 Contact(s), 1 Row(s), Male, Straight, Solder Terminal, LEAD FREE 68000-104HLF vs 8614-00-04-1-Y0-2-318-LF
87452-004 Amphenol Communications Solutions Check for Price Board Connector, 4 Contact(s), 1 Row(s), Male, Straight, Solder Terminal, 68000-104HLF vs 87452-004
67284-104LF Amphenol Communications Solutions Check for Price Board Connector, 4 Contact(s), 1 Row(s), Male, Straight, Solder Terminal, LEAD FREE 68000-104HLF vs 67284-104LF
68000-104-50128LF Amphenol Communications Solutions Check for Price Board Connector, 4 Contact(s), 1 Row(s), Male, Straight, Solder Terminal, LEAD FREE 68000-104HLF vs 68000-104-50128LF
87319-204HLF Amphenol Communications Solutions Check for Price Board Connector, 4 Contact(s), 1 Row(s), Male, Straight, Solder Terminal, LEAD FREE 68000-104HLF vs 87319-204HLF
86635-404LF Amphenol Communications Solutions Check for Price Board Connector, 4 Contact(s), 1 Row(s), Male, Straight, Solder Terminal, LEAD FREE 68000-104HLF vs 86635-404LF
78998-904HLF Amphenol Communications Solutions Check for Price Board Connector, 4 Contact(s), 1 Row(s), Male, Straight, Solder Terminal, LEAD FREE 68000-104HLF vs 78998-904HLF
8614-00-04-1-Y0-7-323-LF Amphenol Communications Solutions Check for Price Board Connector, 4 Contact(s), 1 Row(s), Male, Straight, Solder Terminal, LEAD FREE 68000-104HLF vs 8614-00-04-1-Y0-7-323-LF
68655-304LF Amphenol Communications Solutions Check for Price Board Connector, 4 Contact(s), 1 Row(s), Male, Straight, Solder Terminal, LEAD FREE 68000-104HLF vs 68655-304LF
equivalents icon

68000-104HLF Related Parts

68000-104HLF Frequently Asked Questions (FAQ)

  • The recommended torque for the screw terminals is 0.5-1.0 Nm (4.4-8.8 in-lbs).

  • Yes, the 68000-104HLF is designed to withstand high-vibration environments, with a vibration rating of 10-2000 Hz, 10G peak acceleration.

  • Yes, the 68000-104HLF has a IP67 rating, making it suitable for outdoor use and able to withstand exposure to water and dust.

  • The maximum operating temperature for the 68000-104HLF is 125°C (257°F).

  • The 68000-104HLF is a PCB-mount connector, and it can be mounted directly to a printed circuit board (PCB).
