6SEPC560MX Information
6SEPC560MX by Panasonic Electronic Components is a Fixed Capacitor.
Fixed Capacitors are under the broader part category of Capacitors.
A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.
Price & Stock for 6SEPC560MX
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
89Y2699
|
Newark | Cap, 560Μf, 6.3V, 20%, Capacitance:560Μf, Voltage Rating:6.3V, Ae Capacitor Case:-, Product Range:Os-Con Sepc Series, Esr:0.007Ohm, Lifetime @ Temperature:5000 Hours @ 105°C, Operating Temperature Min:-55°C, Operating Temperature Rohs Compliant: Yes |Panasonic 6SEPC560MX RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 310 |
|
$0.5960 / $0.8750 | Buy Now |
|
DISTI #
6SEPC560MX
|
Avnet Americas | - Bulk (Alt: 6SEPC560MX) COO: Japan RoHS: Compliant Min Qty: 400 Package Multiple: 200 Lead time: 26 Weeks, 0 Days Container: Bulk | 0 |
|
$0.3455 / $0.3769 | Buy Now |
|
DISTI #
70324144
|
RS | CAPACITOR, ALUMINUM ORGANIC POLYMER, 6.3VDC,560UF,7MOHM,8X9MM, BULK Min Qty: 200 Package Multiple: 1 Container: Bulk | 0 |
|
$0.7700 / $0.9100 | RFQ |
|
|
Bristol Electronics | Min Qty: 6 | 400 |
|
$0.2760 / $0.8625 | Buy Now |
|
DISTI #
6SEPC560MX
|
TME | Capacitor: polymer, 560uF, 6.3VDC, THT, ±20%, Body dim: Ø8x9mm, 7mΩ Min Qty: 200 | 0 |
|
$0.4640 | RFQ |
|
DISTI #
6SEPC560MX
|
Avnet Abacus | (Alt: 6SEPC560MX) RoHS: Compliant Min Qty: 200 Package Multiple: 200 Lead time: 35 Weeks, 0 Days | Abacus - 0 |
|
Buy Now |
US Tariff Estimator: 6SEPC560MX by Panasonic Electronic Components
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for 6SEPC560MX
6SEPC560MX CAD Models
-
Part Symbol
-

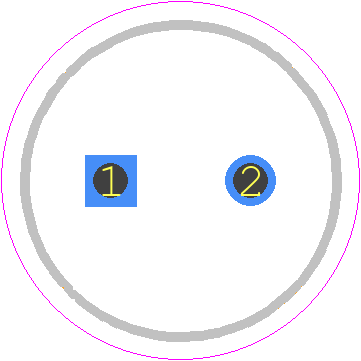

Footprint
-

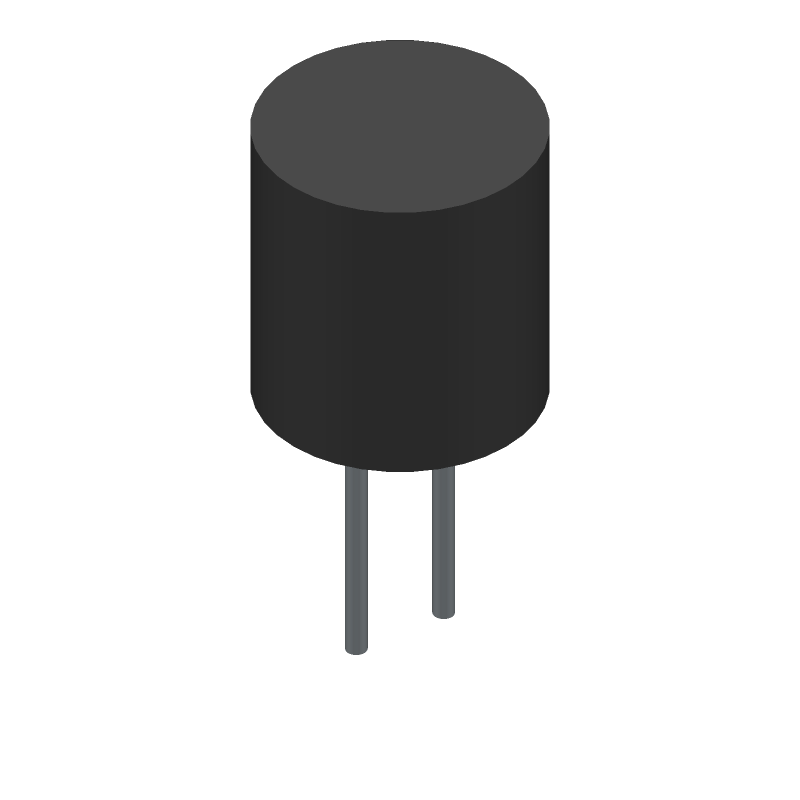

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
6SEPC560MX Part Data Attributes
|
|
6SEPC560MX
Panasonic Electronic Components
Buy Now
Datasheet
|
Compare Parts:
6SEPC560MX
Panasonic Electronic Components
Aluminum Electrolytic Capacitor, Polarized, Aluminum (solid Polymer), 6.3V, 20% +Tol, 20% -Tol, 560uF, Through Hole Mount, RADIAL LEADED
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | Radial Leaded | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8532.22.00.20 | |
| Factory Lead Time | 26 Weeks | |
| Additional Feature | Esr Is Measured At 100khz To 300khz | |
| Capacitance | 560 µF | |
| Capacitor Type | Aluminum Electrolytic Capacitor | |
| Diameter | 8 Mm | |
| Dielectric Material | Aluminum (Solid Polymer) | |
| ESR | 7 MΩ | |
| Leakage Current | 0.705 Ma | |
| Length | 9 Mm | |
| Mounting Feature | Through Hole Mount | |
| Negative Tolerance | 20% | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Shape | Cylindrical Package | |
| Package Style | Radial | |
| Packing Method | Bulk | |
| Polarity | Polarized | |
| Positive Tolerance | 20% | |
| Rated (DC) Voltage (URdc) | 6.3 V | |
| Ripple Current | 305 Ma | |
| Surface Mount | No | |
| Tan Delta | 0.1 | |
| Terminal Pitch | 3.5 Mm | |
| Terminal Shape | Wire |
