744253200 Information
744253200 by Wurth Elektronik is a Data Line Filter.
Data Line Filters are under the broader part category of Filters.
A filter is an electronic circuit that selectively allows certain frequencies to pass while attenuating others. They are used to extract desired signals and remove noise. Read more about Filters on our Filters part category page.
Price & Stock for 744253200
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
62AC1087
|
Newark | Common Mode Filter, 20Uh, 0.5A, Dc Current Rating:500Ma, Inductance:20Μh, Product Range:We-Sl3 Series, Impedance:1.25Kohm, Inductor Case/Package:-, Product Length:9.2Mm, Product Width:6.6Mm, Product Height:2.5Mm, Qualification:- Rohs Compliant: Yes |Wurth Elektronik 744253200 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 2031 |
|
$2.2700 / $2.9300 | Buy Now |
|
|
Bristol Electronics | Min Qty: 3 | 4500 |
|
$0.9854 / $2.4035 | Buy Now |
|
|
ComSIT USA | WE-SL3 SMD COMMON MODE LINE FILTER Data Line Filter, 2 Function(s), 80V, 0.5A, 4 Pin(s) ECCN: EAR99 RoHS: Compliant |
|
|
RFQ | |
|
|
Chip-Germany GmbH | 200 |
|
RFQ |
US Tariff Estimator: 744253200 by Wurth Elektronik
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for 744253200
744253200 CAD Models
-

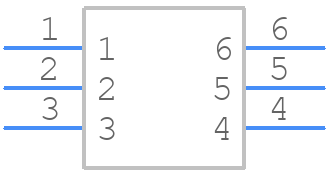

Part Symbol
-
