744314047 Information
744314047 by Wurth Elektronik is a Fixed Inductor.
Fixed Inductors are under the broader part category of Inductors.
Inductors are passive components that resist sudden changes in current by storing and releasing energy in an electromagnetic fiel. They are often used in power circuits and energy storage. Read more about Inductors on our Inductors part category page.
Price & Stock for 744314047
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
44W4622
|
Newark | Inductor, Shielded, 470Nh, 20A, Smd, Inductance:470Nh, Rms Current (Irms):18A, Inductor Construction:Shielded, Saturation Current (Isat):20A, Product Range:We-Hci Series, Inductor Case/Package:-, Dc Resistance Max:0.00135Ohm Rohs Compliant: Yes |Wurth Elektronik 744314047 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 1073 |
|
$3.7600 / $4.4800 | Buy Now |
|
|
Bristol Electronics | Min Qty: 2 | 74 |
|
$1.8817 / $4.0320 | Buy Now |
US Tariff Estimator: 744314047 by Wurth Elektronik
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for 744314047
744314047 CAD Models
-
Part Symbol
-

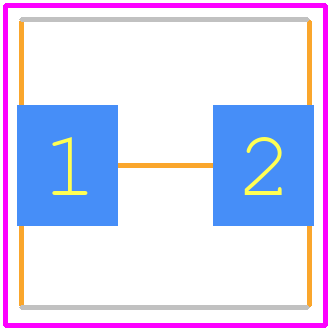

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
744314047 Part Data Attributes
|
|
744314047
Wurth Elektronik
Buy Now
Datasheet
|
Compare Parts:
744314047
Wurth Elektronik
General Purpose Inductor, 0.47uH, 20%, 1 Element, SMD, 2827, ROHS AND REACH COMPLIANT
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | WUERTH ELEKTRONIK GMBH & CO KG | |
| Package Description | ROHS AND REACH COMPLIANT | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8504.50.80.00 | |
| Samacsys Manufacturer | Würth Elektronik | |
| Case/Size Code | 2727 | |
| Construction | Rectangular | |
| DC Resistance | 0.00135 Ω | |
| Inductance-Nom (L) | 0.47 µH | |
| Inductor Application | HIGH CURRENT INDUCTOR | |
| Inductor Type | GENERAL PURPOSE INDUCTOR | |
| JESD-609 Code | e1 | |
| Number of Functions | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Height | 4.8 mm | |
| Package Length | 6.9 mm | |
| Package Style | SMT | |
| Package Width | 6.9 mm | |
| Packing Method | TR, EMBOSSED PLASTIC, 13 INCH | |
| Rated Current-Max | 31.9 A | |
| Reference Standard | AEC-Q200 | |
| Self Resonance Frequency | 235 MHz | |
| Shape/Size Description | RECTANGULAR PACKAGE | |
| Shielded | YES | |
| Special Feature | DC RESISTANCE IS MEASURED AT: 10% | |
| Surface Mount | YES | |
| Terminal Finish | Tin/Silver/Copper (Sn/Ag/Cu) | |
| Terminal Placement | DUAL ENDED | |
| Terminal Shape | WRAPAROUND | |
| Test Frequency | 0.1 MHz | |
| Tolerance | 20% |
