744764122 by: Wurth Elektronik

General Purpose Inductor, 22uH, 10%, 1 Element, Ferrite-Core, SMD, 1210, ROHS AND REACH COMPLIANT

Part Details for 744764122 by Wurth Elektronik

Results Overview of 744764122 by Wurth Elektronik

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

744764122 Information

744764122 by Wurth Elektronik is a Fixed Inductor.
Fixed Inductors are under the broader part category of Inductors.

Inductors are passive components that resist sudden changes in current by storing and releasing energy in an electromagnetic fiel. They are often used in power circuits and energy storage. Read more about Inductors on our Inductors part category page.

Price & Stock for 744764122

Part # Distributor Description Stock Price Buy
DISTI # 45Y9836
Newark Surface Mount High Frequency Inductor, We-Gf Series, 22 H, 10%, 1210 [3225 Metric], 23 Mhz Rohs Compliant: Yes |Wurth Elektronik 744764122 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape 1172
  • 1 $0.2220
  • 10 $0.2220
  • 25 $0.2220
  • 50 $0.2220
  • 100 $0.2220
  • 250 $0.2220
$0.2220 Buy Now
DISTI # 71070636
RS WE-GF Series, Shielded Wire-wound SMD Inductor with Ferrite Core, 22 uH | Wurth Elektronik 744764122 RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 Lead time: 4 Weeks, 0 Days Container: Bulk 0
  • 1 $0.2770
$0.2770 RFQ

Part Details for 744764122

744764122 CAD Models

744764122 Part Data Attributes

744764122 Wurth Elektronik
Buy Now Datasheet
Compare Parts:

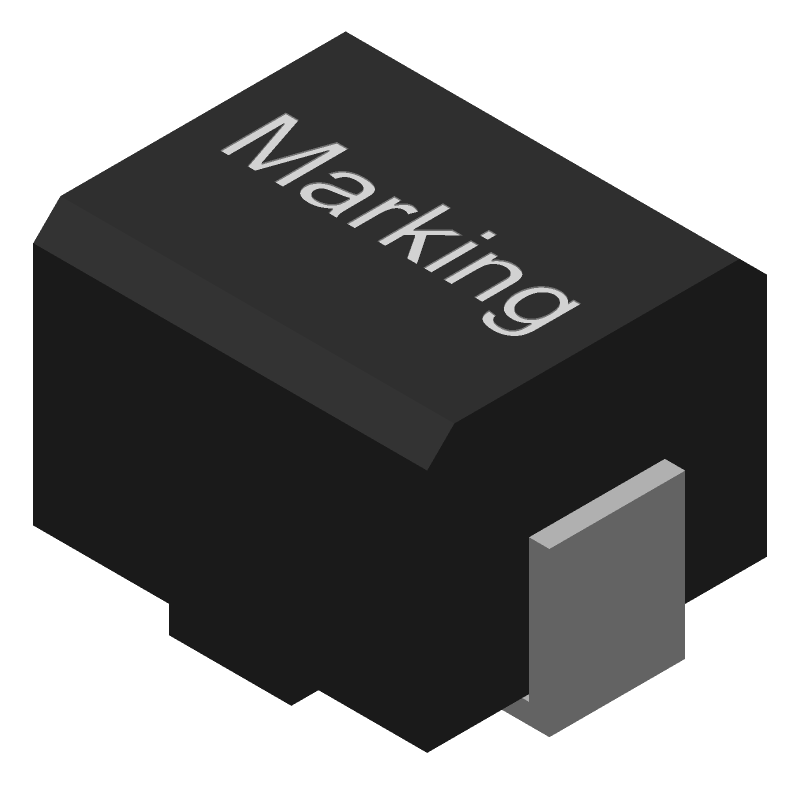

744764122 Wurth Elektronik General Purpose Inductor, 22uH, 10%, 1 Element, Ferrite-Core, SMD, 1210, ROHS AND REACH COMPLIANT
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer WUERTH ELEKTRONIK GMBH & CO KG
Package Description CHIP
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8504.50.80.00
Samacsys Manufacturer Würth Elektronik
Case/Size Code 1210
Construction Rectangular
Core Material FERRITE
DC Resistance 3.7 Ω
Inductance-Nom (L) 22 µH
Inductor Application RF INDUCTOR
Inductor Type GENERAL PURPOSE INDUCTOR
JESD-609 Code e1
Number of Functions 1
Number of Terminals 2
Operating Temperature-Max 105 °C
Operating Temperature-Min -40 °C
Package Height 2.2 mm
Package Length 3.2 mm
Package Style SMT
Package Width 2.5 mm
Packing Method TR, Embossed Plastic, 7 Inch
Quality Factor-Min (at L-nom) 30
Rated Current-Max 0.11 A
Self Resonance Frequency 20 MHz
Shape/Size Description RECTANGULAR PACKAGE
Shielded NO
Surface Mount YES
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Terminal Placement DUAL ENDED
Terminal Shape J BEND
Test Frequency 2.52 MHz
Tolerance 10%
