746X101103JP Information
746X101103JP by CTS Corporation is an Array/Network Resistor.
Array/Network Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for 746X101103JP
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
75AJ2933
|
Newark | Res N/W, Bussed, 10K, 0.063W, 1206 Rohs Compliant: Yes |Cts 746X101103JP RoHS: Compliant Min Qty: 10 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 33238 |
|
$0.0390 / $0.0790 | Buy Now |
|
DISTI #
746X101103JP
|
Avnet Americas | Resistor, Array, 10 kOhm, ? 5%, 8 Resistors, Bussed, 1206 [3216 Metric], Convex, Surface Mount, Thick Film - Tape and Reel (Alt: 746X101103JP) COO: Taiwan (Province of China) RoHS: Compliant Min Qty: 300000 Package Multiple: 5000 Lead time: 23 Weeks, 0 Days Container: Reel | 500010000 Factory Stock |
|
$0.0230 / $0.0235 | Buy Now |
|
|
Bristol Electronics | Min Qty: 27 | 95226 |
|
$0.0253 / $0.1875 | Buy Now |
|
DISTI #
746X101103JP
|
Avnet Abacus | Resistor Array 10 kOhm 5 8 Resistors Bussed 1206 3216 Metric Convex Surface Mount Thick Film - Tape and Reel (Alt: 746X101103JP) RoHS: Compliant Min Qty: 10000 Package Multiple: 5000 Lead time: 22 Weeks, 0 Days Container: Reel | Abacus - 0 |
|
Buy Now | |
|
DISTI #
746X101103JP
|
Avnet Asia | Resistor, Array, 10 kOhm, ? 5%, 8 Resistors, Bussed, 1206 [3216 Metric], Convex, Surface Mount, Thick Film (Alt: 746X101103JP) RoHS: Compliant Min Qty: 10000 Package Multiple: 5000 Lead time: 20 Weeks, 0 Days | 0 |
|
RFQ | |
|
|
Component Electronics, Inc | RES NET SMT 10B 10K 9RES 5% T/R | 4900 |
|
$0.2500 / $0.3800 | Buy Now |
|
|
New Advantage Corporation | 74X Series 8 Element 10 kO �5 % Case 3.3 x 1.6 mm SMT Chip Resistor Array RoHS: Compliant Min Qty: 1 Package Multiple: 5000 | 20000 |
|
$0.0329 / $0.0357 | Buy Now |
US Tariff Estimator: 746X101103JP by CTS Corporation
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for 746X101103JP
746X101103JP CAD Models
-

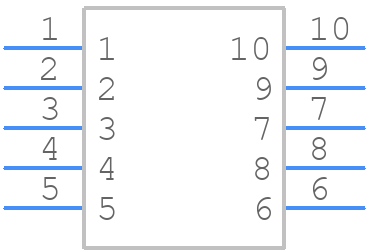

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
746X101103JP Part Data Attributes
|
|
746X101103JP
CTS Corporation
Buy Now
Datasheet
|
Compare Parts:
746X101103JP
CTS Corporation
Array/Network Resistor, Bussed, Metal Glaze/thick Film, 0.248W, 10000ohm, 25V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 0613, CHIP, ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | CTS CORP | |
| Package Description | CHIP | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8533.21.00.20 | |
| Factory Lead Time | 23 Weeks | |
| Samacsys Manufacturer | CTS | |
| Construction | Rectangular | |
| Element Power Dissipation | 0.063 W | |
| First Element Resistance | 10000 Ω | |
| JESD-609 Code | e3 | |
| Mounting Feature | SURFACE MOUNT | |
| Network Type | BUSSED | |
| Number of Elements | 8 | |
| Number of Functions | 1 | |
| Number of Terminals | 10 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Height | 0.6 mm | |
| Package Length | 1.6 mm | |
| Package Shape | RECTANGULAR PACKAGE | |
| Package Style | SMT | |
| Package Width | 3.2 mm | |
| Packing Method | TR, PAPER, 7 INCH | |
| Rated Power Dissipation (P) | 0.504 W | |
| Rated Temperature | 70 °C | |
| Resistance | 10000 Ω | |
| Resistor Type | ARRAY/NETWORK RESISTOR | |
| Second/Last Element Resistance | 10000 Ω | |
| Size Code | 0612 | |
| Surface Mount | YES | |
| Technology | METAL GLAZE/THICK FILM | |
| Temperature Coefficient | 200 ppm/°C | |
| Terminal Finish | Matte Tin (Sn) - with Nickel (Ni) barrier | |
| Terminal Shape | WRAPAROUND | |
| Tolerance | 5% | |
| Working Voltage | 25 V |
