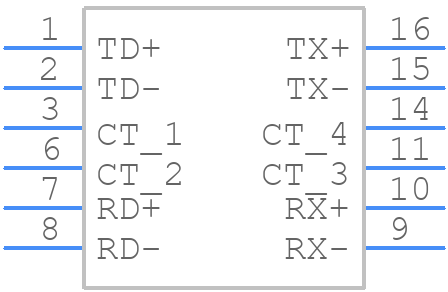

Part Symbol
-

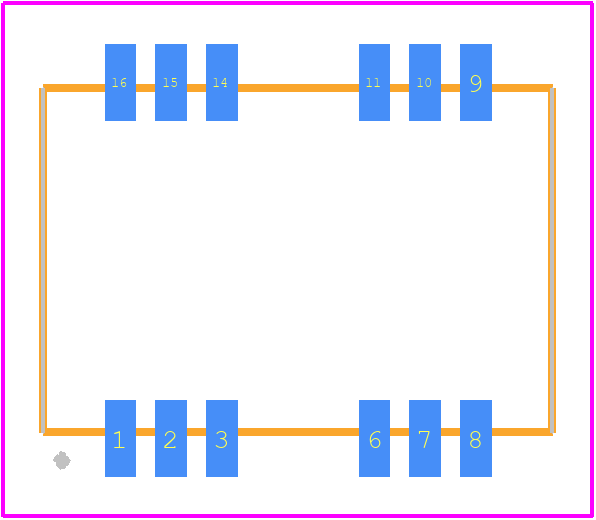

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 749020100A by Wurth Elektronik
Results Overview of 749020100A by Wurth Elektronik
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Not Available)
- Number of Functional Equivalents: (1 option)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
749020100A Information
749020100A by Wurth Elektronik is a Pulse/Datacom Transformer.
Pulse/Datacom Transformers are under the broader part category of Transformers.
Transformers are passive components that transfer electrical energy between circuits and adjust voltage levels through electromagnetic induction. They are crucial for applications like power transmission and reducing voltage for low-voltage devices. Read more about Transformers on our Transformers part category page.
Price & Stock for 749020100A
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
69AH5266
|
Newark | Xfmr, 10/100/1000 Base-T, 0.5 Port, Smd Rohs Compliant: Yes |Wurth Elektronik 749020100A RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 894 |
|
$4.3200 / $6.4600 | Buy Now |
Part Details for 749020100A
749020100A CAD Models
749020100A Part Data Attributes
|
|
749020100A
Wurth Elektronik
Buy Now
Datasheet
|
Compare Parts:
749020100A
Wurth Elektronik
WE-LAN LAN Transformer
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | WUERTH ELEKTRONIK GMBH & CO KG | |
| Package Description | CHIP | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | Würth Elektronik | |
| Application | 100 BASE-T | |
| Height | 3 mm | |
| Length | 12.7 mm | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Functions | 1 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -40 °C | |
| Packing Method | TR, EMBOSSED PLASTIC, 13 INCH | |
| Primary Inductance | 350 µH | |
| Surface Mount | YES | |
| Transformer Type | DATACOM TRANSFORMER | |
| Turns Ratio (Np:Ns) | 1:1 | |
| Width | 8.6 mm |
