74AHC1G125GW-Q100H Information
74AHC1G125GW-Q100H by Nexperia is a Bus Driver/Transceiver.
Bus Driver/Transceivers are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Price & Stock for 74AHC1G125GW-Q100H
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
74AHC1G125GW-Q100H
|
Avnet Americas | Buffer / Line Driver, 74AHC1G125, 1 Element, 2 V to 5.5 V, 5 Pins, TSSOP - Tape and Reel (Alt: 74AHC1G125GW-Q100H) COO: Malaysia RoHS: Compliant Min Qty: 21000 Package Multiple: 3000 Lead time: 10 Weeks, 0 Days Container: Reel | 0 |
|
$0.0651 / $0.0697 | Buy Now |
|
|
Rochester Electronics | Bus Driver, AHC/VHC/H/U/V Series, 1-Func, 1-Bit, True Output, CMOS, PDSO5 RoHS: Compliant Status: Active Min Qty: 1 | 360 |
|
$0.0601 / $0.0969 | Buy Now |
|
DISTI #
74AHC1G125GW-Q100H
|
Avnet Asia | Buffer / Line Driver, 74AHC1G125, 1 Element, 2 V to 5.5 V, 5 Pins, TSSOP (Alt: 74AHC1G125GW-Q100H) RoHS: Compliant Min Qty: 21000 Package Multiple: 3000 Lead time: 10 Weeks, 0 Days | 0 |
|
RFQ | |
|
|
Chip Stock | Buffer/LineDriver1-CHNon-Inverting3-ST5-PinTSSOPT/RAutomotiveAEC-Q100 | 82000 |
|
RFQ |
US Tariff Estimator: 74AHC1G125GW-Q100H by Nexperia
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for 74AHC1G125GW-Q100H

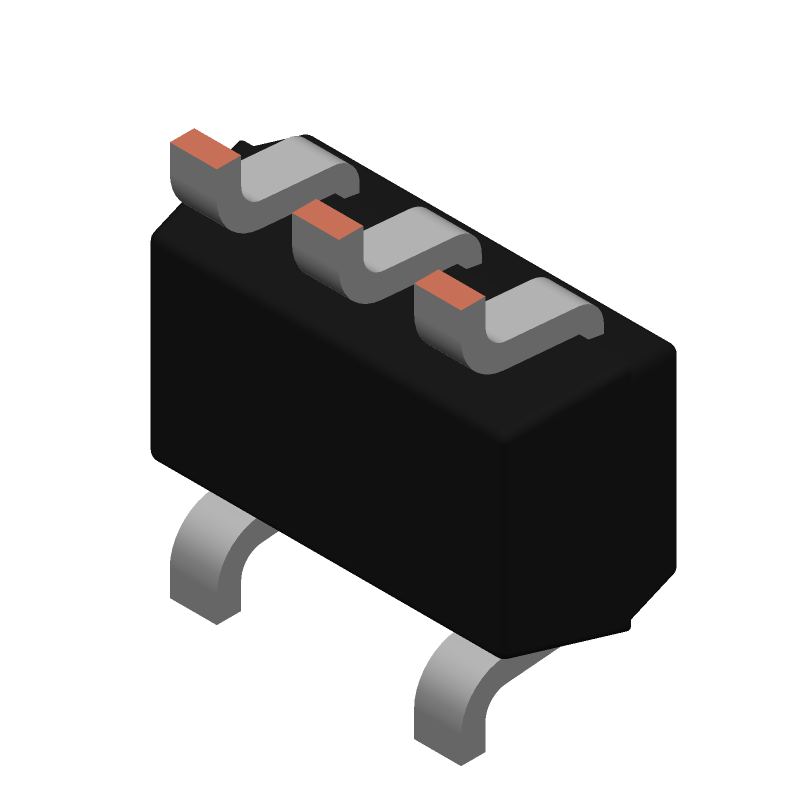

74AHC1G125GW-Q100H CAD Models
-

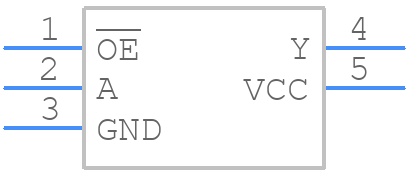

Part Symbol
-
