74AHCT1G14GW,125 Information
74AHCT1G14GW,125 by Nexperia is a Gate.
Gates are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Price & Stock for 74AHCT1G14GW,125
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
99K0511
|
Newark | 74Ahct Single Gate, Smd, 74Ahct1G14, Logic Family/Base Number:74Ahct1G14, Logic Type:Inverter, Output Current:8Ma, No. Of Inputs:1, Supply Voltage Min:4.5V, Supply Voltage Max:5.5V, Logic Case Style:Sot-353, No. Of Pins:5Pins, Rohs Compliant: Yes |Nexperia 74AHCT1G14GW,125 RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 2153 |
|
$0.0740 / $0.1490 | Buy Now |
|
DISTI #
93X4776
|
Newark | Inverter Schmitt Trig, Single, Tssop-5, Logic Family/Base Number:74Ahct1G14, Logic Type:Inverter Schmitt Trigger, Output Current:25Ma, No. Of Inputs:1, Supply Voltage Min:4.5V, Supply Voltage Max:5.5V, Logic Case Style:Tssop, No. Rohs Compliant: Yes |Nexperia 74AHCT1G14GW,125 RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 1 Container: Reel | 0 |
|
$0.0550 | Buy Now |
|
DISTI #
29AC1001
|
Newark | 74Ahct1G14Gw/Sot353/Umt5 Rohs Compliant: Yes |Nexperia 74AHCT1G14GW,125 RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.0550 | Buy Now |
|
DISTI #
74AHCT1G14GW,125
|
Avnet Americas | Logic IC, Inverter, Single, 1 Inputs, 5 Pins, TSSOP, 74AHCT1G14 - Tape and Reel (Alt: 74AHCT1G14GW,125) COO: Malaysia RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 8 Weeks, 0 Days Container: Reel | 3000 |
|
$0.0667 / $0.0714 | Buy Now |
|
|
Rochester Electronics | Inverter, AHCT/VHCT/VT Series, 1-Func, 1-Input, CMOS, PDSO5 RoHS: Compliant Status: Active Min Qty: 1 | 1650 |
|
$0.0441 / $0.0711 | Buy Now |
|
DISTI #
74AHCT1G14GW.125
|
TME | IC: digital, NOT, Ch: 1, CMOS,TTL, SMD, TSSOP5, Mini Logic, -40÷125°C Min Qty: 1 | 1367 |
|
$0.0811 / $0.1800 | Buy Now |
|
|
Ameya Holding Limited | 74AHCT Series 5 V High Speed Si-Gate CMOS Inverting Schmitt Trigger - TSSOP-5 | 399474 |
|
RFQ | |
|
DISTI #
74AHCT1G14GW,125
|
Avnet Asia | Logic IC, Inverter, Single, 1 Inputs, 5 Pins, TSSOP, 74AHCT1G14 (Alt: 74AHCT1G14GW,125) RoHS: Compliant Min Qty: 27000 Package Multiple: 3000 Lead time: 8 Weeks, 0 Days | 0 |
|
RFQ | |
|
|
Chip Stock | 74AHCTSeries5VHighSpeedSi-GateCMOSInvertingSchmittTrigger-TSSOP-5 | 177000 |
|
RFQ |
US Tariff Estimator: 74AHCT1G14GW,125 by Nexperia
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for 74AHCT1G14GW,125

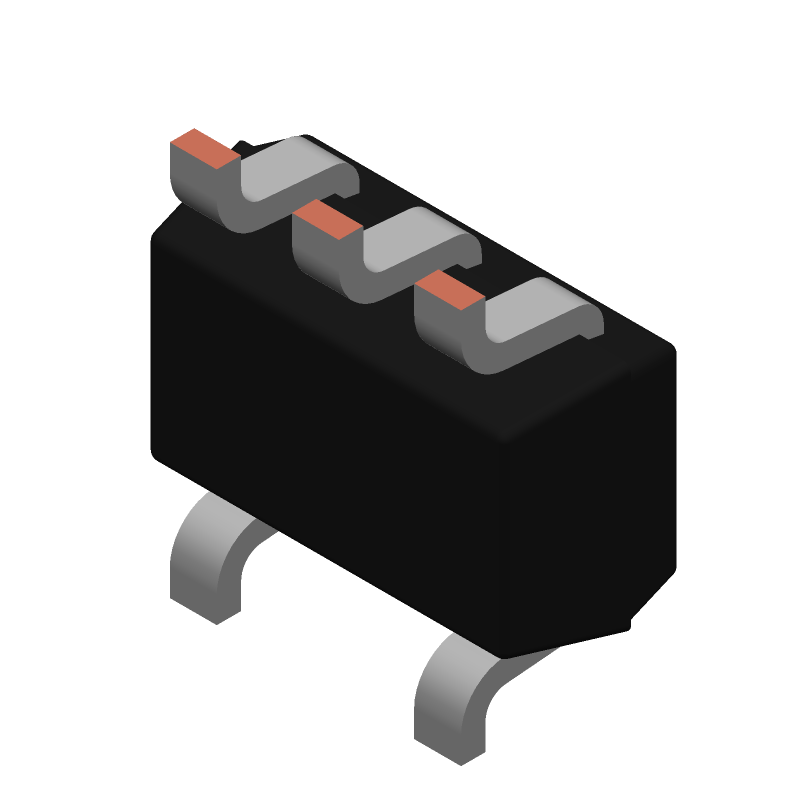

74AHCT1G14GW,125 CAD Models
-

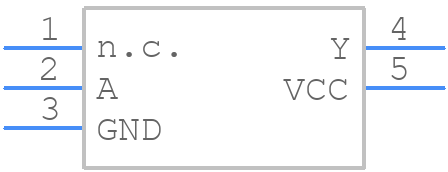

Part Symbol
-
