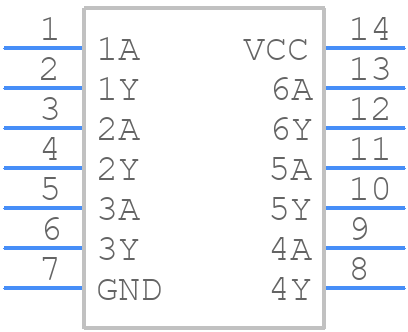

Part Symbol
-

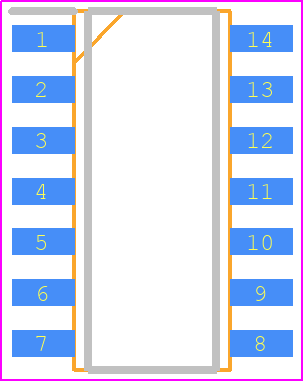

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 74HC14D by Toshiba America Electronic Components
Overview of 74HC14D by Toshiba America Electronic Components
- Distributor Offerings:
- Number of FFF Equivalents:
- CAD Models:
- Number of Functional Equivalents:
- Part Data Attributes
- Reference Designs:
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Price & Stock for 74HC14D
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
74HC14DCT-ND
|
DigiKey | IC INVERT SCHMITT 6CH 1IN 14SOIC Min Qty: 1 Lead time: 52 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
37224 In Stock |
|
$0.1263 / $0.4400 | Buy Now |
|
DISTI #
74HC14D
|
Avnet Americas | 74HC CMOS logic IC series SOIC14 Hex Schmitt Inverter - Tape and Reel (Alt: 74HC14D) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 53 Weeks, 1 Days Container: Reel | 0 |
|
$0.1450 / $0.1850 | Buy Now |
|
DISTI #
757-74HC14D
|
Mouser Electronics | Inverters 74HC CMOS logic IC series SOIC14 Hex Schmitt Inverter RoHS: Compliant | 7655 |
|
$0.1260 / $0.4400 | Buy Now |
|
DISTI #
74HC14D
|
Avnet Americas | 74HC CMOS logic IC series SOIC14 Hex Schmitt Inverter - Tape and Reel (Alt: 74HC14D) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 53 Weeks, 1 Days Container: Reel | 0 |
|
$0.1450 / $0.1850 | Buy Now |
|
DISTI #
74HC14D
|
Avnet Americas | 74HC CMOS logic IC series SOIC14 Hex Schmitt Inverter - Tape and Reel (Alt: 74HC14D) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 53 Weeks, 1 Days Container: Reel | 0 |
|
$0.1450 / $0.1850 | Buy Now |
Part Details for 74HC14D
74HC14D CAD Models
74HC14D Part Data Attributes
|
|
74HC14D
Toshiba America Electronic Components
Buy Now
Datasheet
|
Compare Parts:
74HC14D
Toshiba America Electronic Components
INVERT GATE
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TOSHIBA CORP | |
| Package Description | SOIC-14 | |
| Reach Compliance Code | compliant | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 53 Weeks, 1 Day | |
| Date Of Intro | 2016-05-24 | |
| Samacsys Manufacturer | Toshiba | |
| Family | HC/UH | |
| JESD-30 Code | R-PDSO-G14 | |
| Length | 8.65 mm | |
| Logic IC Type | INVERTER | |
| Number of Functions | 6 | |
| Number of Inputs | 1 | |
| Number of Terminals | 14 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Propagation Delay (tpd) | 190 ns | |
| Seated Height-Max | 1.75 mm | |
| Supply Voltage-Max (Vsup) | 6 V | |
| Supply Voltage-Min (Vsup) | 2 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Width | 3.9 mm |
