74LVC1G123DCURG4 Information
74LVC1G123DCURG4 by Texas Instruments is a Prescaler/Multivibrator.
Prescaler/Multivibrators are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Price & Stock for 74LVC1G123DCURG4
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
LCSC | 18.5ns Schmitt Trigger 1.65V5.5V VSSOP-8-0.5mm Multivibrators RoHS | 26 |
|
$1.0618 / $1.5804 | Buy Now |
US Tariff Estimator: 74LVC1G123DCURG4 by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for 74LVC1G123DCURG4
74LVC1G123DCURG4 CAD Models
-

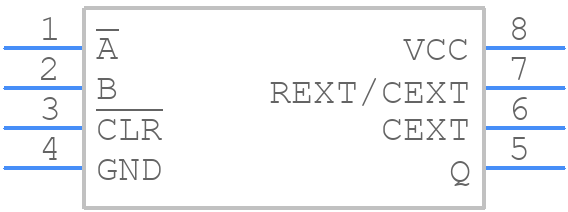

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
74LVC1G123DCURG4 Part Data Attributes
|
|
74LVC1G123DCURG4
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
74LVC1G123DCURG4
Texas Instruments
Single retriggerable monostable multivibrator with Schmitt-trigger inputs 8-VSSOP -40 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SOIC | |
| Package Description | VSSOP, TSSOP8,.12,20 | |
| Pin Count | 8 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.60 | |
| Samacsys Manufacturer | Texas Instruments | |
| Family | LVC/LCX/Z | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e4 | |
| Length | 2.3 mm | |
| Logic IC Type | MONOSTABLE MULTIVIBRATOR | |
| Max I(ol) | 0.032 A | |
| Moisture Sensitivity Level | 1 | |
| Number of Bits | 1 | |
| Number of Data/Clock Inputs | 2 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Characteristics | 3-STATE | |
| Output Polarity | TRUE | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | VSSOP | |
| Package Equivalence Code | TSSOP8,.12,20 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power Supply Current-Max (ICC) | 0.02 mA | |
| Propagation Delay (tpd) | 57 ns | |
| Qualification Status | Not Qualified | |
| Schmitt Trigger | YES | |
| Seated Height-Max | 0.9 mm | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 1.65 V | |
| Supply Voltage-Nom (Vsup) | 3.3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 2 mm |
Alternate Parts for 74LVC1G123DCURG4
This table gives cross-reference parts and alternative options found for 74LVC1G123DCURG4. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 74LVC1G123DCURG4, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| SN74LVC1G123DCUT | Texas Instruments | $0.5042 | Single retriggerable monostable multivibrator with Schmitt-trigger inputs 8-VSSOP -40 to 125 | 74LVC1G123DCURG4 vs SN74LVC1G123DCUT |
| 74LVC1G123DCUTE4 | Texas Instruments | Check for Price | LVC/LCX/Z SERIES, MONOSTABLE MULTIVIBRATOR, PDSO8, GREEN, PLASTIC, VSSOP-8 | 74LVC1G123DCURG4 vs 74LVC1G123DCUTE4 |
74LVC1G123DCURG4 Frequently Asked Questions (FAQ)
-
The recommended operating voltage range for the 74LVC1G123DCURG4 is 1.65V to 5.5V.
-
To ensure the 74LVC1G123DCURG4 is properly powered, connect the VCC pin to a stable power supply, and the GND pin to a reliable ground connection. Also, ensure that the power supply voltage is within the recommended operating range.
-
The maximum frequency of operation for the 74LVC1G123DCURG4 is 150 MHz.
-
Input signals to the 74LVC1G123DCURG4 should be clean and free of noise. Use proper signal termination and ensure that the input signals are within the recommended voltage levels.
-
The propagation delay of the 74LVC1G123DCURG4 is typically around 3.5 ns, but this can vary depending on the operating conditions and load capacitance.
