74LVC1G3157GM,115 by Nexperia is a Multiplexer or Switch.
Multiplexers or Switches are under the broader part category of Signal Circuits.
A signal is an electronic means of transmitting information, either as an analog signal with continuous values or a digital signal with discrete values. Signals are used in various systems and networks. Read more about Signal Circuits on our Signal Circuits part category page.
Price & Stock for 74LVC1G3157GM,115
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
37AH6177
|
Newark | 74Lvc1G3157Gm/Sot886/Xson6 Rohs Compliant: Yes |Nexperia 74LVC1G3157GM,115 RoHS: Compliant Min Qty: 5000 Package Multiple: 1 Date Code: 0 Container: Reel | 5000 |
|
$0.0540 | Buy Now |
|
DISTI #
74LVC1G3157GM,115
|
Avnet Americas | Analog Multiplexer/Demultiplexer, 1 Circuit, 2:1, 195 Ohm,1.65V to 5.5V, XSON-6, -40 ?C to 125 ?C - Tape and Reel (Alt: 74LVC1G3157GM,115) COO: Thailand RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 8 Weeks, 0 Days Container: Reel | 5000 |
|
$0.1645 / $0.1763 | Buy Now |
|
DISTI #
74LVC1G3157GM,115
|
Chip One Stop | Semiconductors RoHS: Compliant Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Cut Tape | 9635 |
|
$0.0785 / $0.1490 | Buy Now |
|
|
Chip Stock | 74LVCSeries5.5VSMT2-ChannelAnalogMultiplexer/Demultiplexer-XSON-6 | 80000 |
|
RFQ |
US Tariff Estimator: 74LVC1G3157GM,115 by Nexperia
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for 74LVC1G3157GM,115
74LVC1G3157GM,115 CAD Models
-

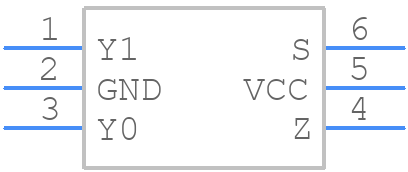

Part Symbol
-
Footprint
-

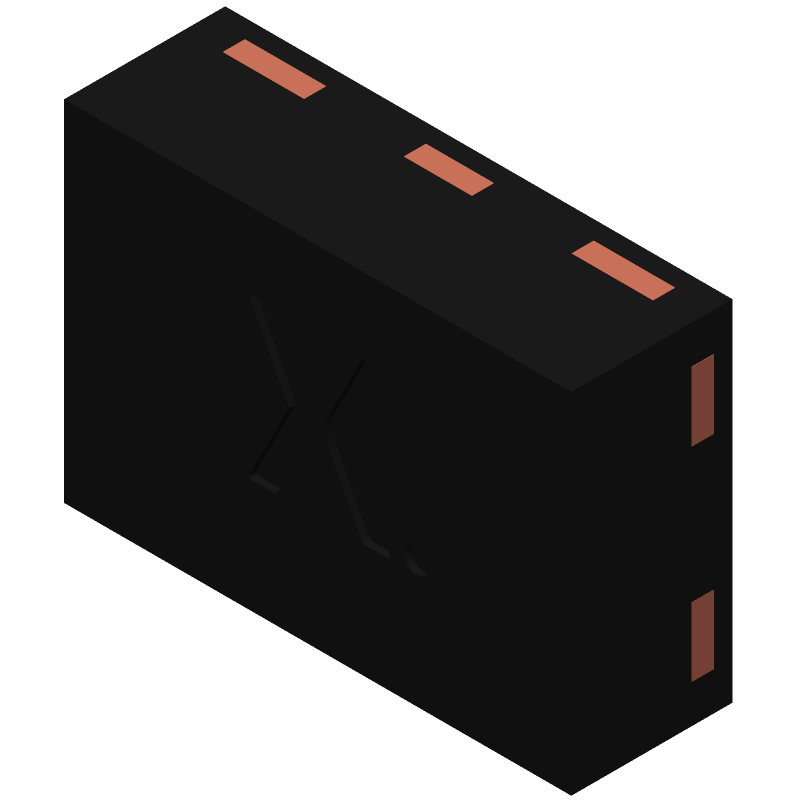

3D Model
