74VHCT541AFT(BE) Information
74VHCT541AFT(BE) by Toshiba America Electronic Components is a Bus Driver/Transceiver.
Bus Driver/Transceivers are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| 74VHCT541AFT | Toshiba Electronic Devices & Storage Corporation | CMOS Logic IC, Octal Buffer, TSSOP20B |
Price & Stock for 74VHCT541AFT(BE)
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Ameya Holding Limited | IC BUFF/DVR TRI-ST 8BIT 20TSSOP | 4888 |
|
RFQ | |
|
|
Chip Stock | Buffer/LineDriver8-CHNon-Inverting3-STCMOSAutomotive20-PinTSSOP-BT/R | 10000 |
|
RFQ | |
|
|
LCSC | 8 4uA 4.5V5.5V 5ns5.0V15pF TSSOP-20 Buffers Drivers Receivers Transceivers RoHS | 1651 |
|
$0.2597 / $0.3811 | Buy Now |
|
|
Win Source Electronics | IC BUFF/DVR TRI-ST 8BIT 20TSSOP | 8500 |
|
$0.1677 / $0.2516 | Buy Now |
US Tariff Estimator: 74VHCT541AFT(BE) by Toshiba America Electronic Components
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for 74VHCT541AFT(BE)
74VHCT541AFT(BE) CAD Models
-

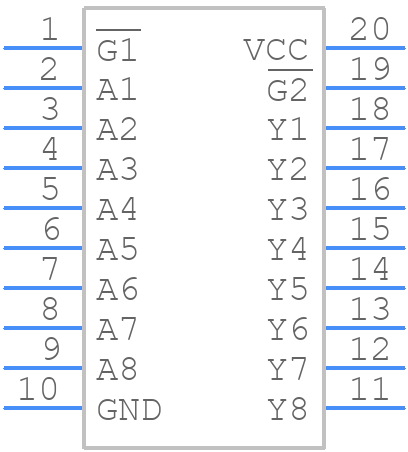

Part Symbol
-
Footprint
-

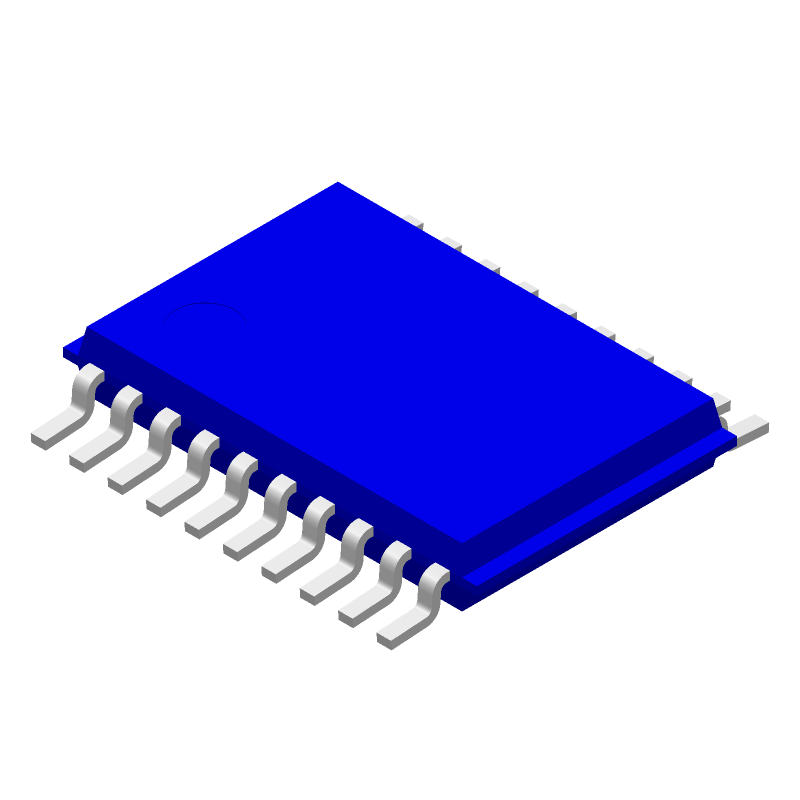

3D Model
