Part Details for 74HC00D by Toshiba America Electronic Components

Results Overview of 74HC00D by Toshiba America Electronic Components

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Education and Research Financial Technology (Fintech) Healthcare

74HC00D Information

74HC00D by Toshiba America Electronic Components is a Gate.
Gates are under the broader part category of Logic Components.

Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.

Price & Stock for 74HC00D

Part # Distributor Description Stock Price Buy
DISTI # 74HC00D
Avnet Americas Pb-F 74HC CMOS logic IC series SOIC Quad 2-Input NAND Gate - Tape and Reel (Alt: 74HC00D) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 20 Weeks, 0 Days Container: Reel 0
  • 2,500 $0.1530
  • 5,000 $0.1490
  • 10,000 $0.1420
  • 15,000 $0.1380
  • 20,000 $0.1350
$0.1350 / $0.1530 Buy Now
DISTI # SMC-74HC00D
Sensible Micro Corporation Logic Gates Pb-F 74Hc Cmos Logic Ic Series Soic Quad 2-Input Nand Gate RoHS: Not Compliant Min Qty: 25 Lead time: 0 Weeks, 1 Days Container: Cut Tape 15
  • 100 $0.3023
  • 500 $0.2945
  • 1,000 $0.2790
$0.2790 / $0.3023 RFQ

Part Details for 74HC00D

74HC00D CAD Models

  • Part Symbol

    Part Symbol

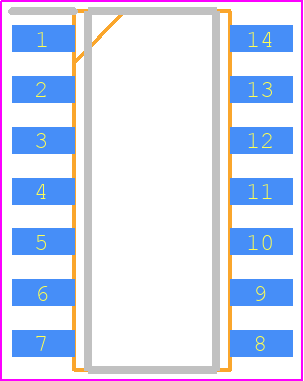

  • Footprint

    footprint

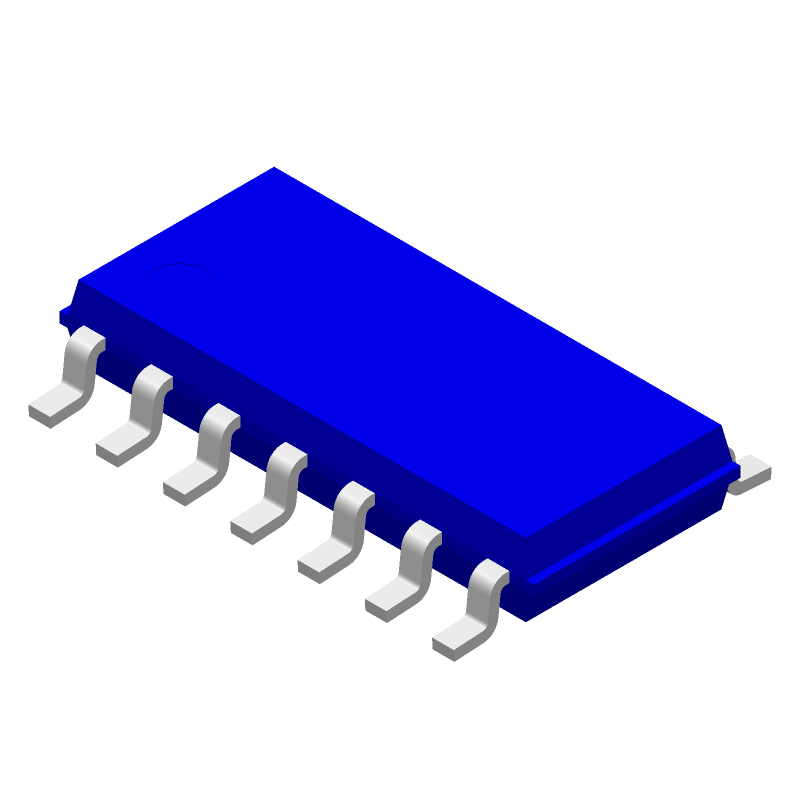

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

74HC00D Part Data Attributes

Parametric Data
74HC00D Toshiba America Electronic Components
Buy Now Datasheet
Compare Parts:
74HC00D Toshiba America Electronic Components NAND GATE
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer TOSHIBA CORP
Package Description SOIC-14
Reach Compliance Code compliant
HTS Code 8542.39.00.01
Factory Lead Time 20 Weeks
Date Of Intro 2016-05-24
Samacsys Manufacturer Toshiba
Family HC/UH
JESD-30 Code R-PDSO-G14
Length 8.65 mm
Logic IC Type NAND GATE
Number of Functions 4
Number of Inputs 2
Number of Terminals 14
Operating Temperature-Max 125 °C
Operating Temperature-Min -40 °C
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) NOT SPECIFIED
Propagation Delay (tpd) 135 ns
Seated Height-Max 1.75 mm
Supply Voltage-Max (Vsup) 6 V
Supply Voltage-Min (Vsup) 2 V
Supply Voltage-Nom (Vsup) 5 V
Surface Mount YES
Technology CMOS
Temperature Grade AUTOMOTIVE
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Width 3.9 mm
