752091103GPTR7 Information
752091103GPTR7 by CTS Corporation is an Array/Network Resistor.
Array/Network Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for 752091103GPTR7
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
752091103GPTR7
|
Avnet Americas | Resistor, Network, 10 kOhm, ? 2%, 1.3 W, 8 Resistor, Bussed, SMD SIP, Solder, Surface Mount, Thick Film - Tape and Reel (Alt: 752091103GPTR7) COO: Malaysia RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 23 Weeks, 0 Days Container: Reel | 4000 |
|
$1.1233 | Buy Now |
|
|
Bristol Electronics | 9 |
|
RFQ | ||
|
DISTI #
752091103GPTR7
|
IBS Electronics | RES THICK FILM NET 10K OHM 2% 1.3W ±, 200PPM/C BUS 9-PIN SINGLE ROW SMD T/R Min Qty: 250 Package Multiple: 1 | 3806 |
|
$1.9460 / $2.3800 | Buy Now |
|
DISTI #
752091103GPTR7
|
Avnet Abacus | Resistor Network 10 kOhm 2 13 W 8 Resistor Bussed SMD SIP Solder Surface Mount Thick Film - Tape and Reel (Alt: 752091103GPTR7) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 26 Weeks, 0 Days Container: Reel | Abacus - 0 |
|
Buy Now |
US Tariff Estimator: 752091103GPTR7 by CTS Corporation
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for 752091103GPTR7
752091103GPTR7 CAD Models
-

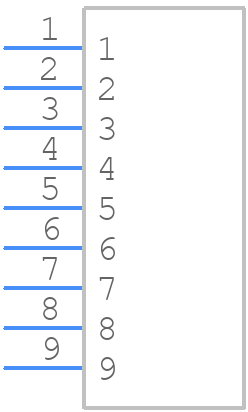

Part Symbol
-

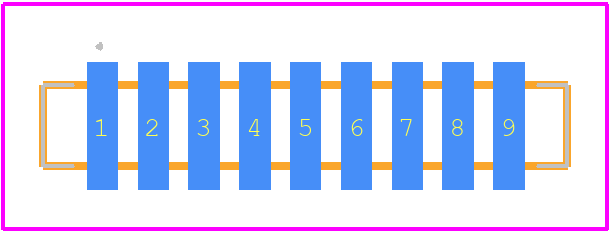

Footprint
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
752091103GPTR7 Part Data Attributes
|
|
752091103GPTR7
CTS Corporation
Buy Now
Datasheet
|
Compare Parts:
752091103GPTR7
CTS Corporation
Array/Network Resistor, Bussed, 1.3W, 10000ohm, 25V, 2% +/-Tol, 200ppm/Cel, Surface Mount, 0851, ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | Chip | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8533.21.00.20 | |
| Factory Lead Time | 23 Weeks | |
| Construction | Rectangular | |
| Element Power Dissipation | 1.3 W | |
| First Element Resistance | 10000 Ω | |
| JESD-609 Code | e3 | |
| Mounting Feature | Surface Mount | |
| Network Type | Bussed | |
| Number of Elements | 8 | |
| Number of Functions | 1 | |
| Number of Terminals | 9 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Height | 2.41 Mm | |
| Package Length | 2.03 Mm | |
| Package Shape | Rectangular Package | |
| Package Style | Smt | |
| Package Width | 13.08 Mm | |
| Packing Method | Tr, Plastic, 7 Inch | |
| Rated Power Dissipation (P) | 0.12 W | |
| Rated Temperature | 25 °C | |
| Resistance | 10000 Ω | |
| Resistor Type | Array/Network Resistor | |
| Second/Last Element Resistance | 10000 Ω | |
| Size Code | 0852 | |
| Surface Mount | Yes | |
| Technology | Metal Glaze/Thick Film | |
| Temperature Coefficient | 200 Ppm/°C | |
| Terminal Finish | Matte Tin (Sn) - With Nickel (Ni) Barrier | |
| Terminal Shape | Wraparound | |
| Tolerance | 2% | |
| Working Voltage | 25 V |
