8-338069-4 by: TE Connectivity

(8-338069-4) MICRO-MATCH SMD FTE

Part Details for 8-338069-4 by TE Connectivity

Results Overview of 8-338069-4 by TE Connectivity

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

8-338069-4 Information

8-338069-4 by TE Connectivity is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Price & Stock for 8-338069-4

Part # Distributor Description Stock Price Buy
DISTI # 70AH7853
Newark Connector, Rcpt, 14Pos, 1Rows, 1.27Mm Rohs Compliant: Yes |Amp Te Connectivity 8-338069-4 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape 2263
  • 1 $4.1800
  • 10 $3.6200
  • 25 $3.5400
  • 50 $3.4200
  • 100 $3.1500
$3.1500 / $4.1800 Buy Now
DISTI # 19R9311
Newark Micro-Match Smd Fte |Amp Te Connectivity 8-338069-4 RoHS: Not Compliant Min Qty: 1800 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 1,000 $2.6100
  • 2,500 $2.4800
$2.4800 / $2.6100 Buy Now
DISTI # 8-338069-4
Avnet Americas Conn FFC Connector F 14 POS 2.54mm Solder ST SMD T/R - Tape and Reel (Alt: 8-338069-4) COO: Switzerland RoHS: Compliant Min Qty: 1800 Package Multiple: 1800 Lead time: 29 Weeks, 6 Days Container: Reel 0
  • 1,800 $2.2049
  • 5,400 $1.8013
  • 10,800 $1.7797
  • 25,200 $1.7706
  • 50,400 $1.7615
$1.7615 / $2.2049 Buy Now
DISTI # 70468386
RS MICRO-MATCH SERIES 2.54MM 14 WAY 2 ROW STRAIGHT PCB SOCKET SMNT FEMALE-ON-BOARD Min Qty: 5 Package Multiple: 1 Container: Bulk 0
  • 5 $5.3400
  • 25 $4.9000
  • 50 $4.2800
$4.2800 / $5.3400 RFQ
TE Connectivity MICRO-MATCH SMD FTE Connector System: Board-to-Board Number of Positions: 14 Centerline (Pitch): 1.27 mm Centerline (Pitch): .05 in PCB Mount Retention: Without Board-to-Board 14 1.27 mm .05" | Female-On-Board Connector & Top Entry | Part Number: 8-338069-4 | Internal Number: 8-338069-4 | TE Connectivity RoHS: Compliant Min Qty: 1 3906
  • 1 $6.7200
  • 10 $6.5600
  • 25 $6.3900
  • 50 $6.2200
  • 100 $6.0500
  • 250 $5.8800
  • 500 $5.7100
  • 1,000 $5.5500
$5.5500 / $6.7200 Buy Now
DISTI # AMP8-338069-4
Heilind Electronics MICRO-MATCH SMD FTE Americas - 0 in Stock
  • 1,800 $2.3036
  • 3,600 $2.2698
$2.2698 / $2.3036 Buy Now
Bristol Electronics   800
RFQ
DISTI # 83380694-TEC-0
TME Connector: Micro-MaTch Min Qty: 1800 23201
  • 1,800 $1.9414
$1.9414 Buy Now
DISTI # AMP8-338069-4
Interstate Connecting Components MICRO-MATCH SMD FTE 0
  • 1,800 $2.3036
  • 3,600 $2.2698
$2.2698 / $2.3036 Buy Now
DISTI # 000000000002364268
Sager Headers & Wire Housings FOB 14P TOP ENTRY SMT Min Qty: 1800 0
  • 1,800 $2.5700
$2.5700 Buy Now
DISTI # 8-338069-4
Avnet Abacus Conn FFC Connector F 14 POS 254mm Solder ST SMD TR (Alt: 8-338069-4) RoHS: Compliant Min Qty: 1800 Package Multiple: 900 Lead time: 5 Weeks, 0 Days Abacus - 0
Buy Now
DISTI # 8-338069-4
Avnet Abacus Conn FFC Connector F 14 POS 254mm Solder ST SMD TR (Alt: 8-338069-4) RoHS: Compliant Min Qty: 1800 Package Multiple: 1800 Lead time: 3 Weeks, 0 Days Abacus - 0
Buy Now
Chip Stock Connector,Rcpt,14Pos,1Rows,1.27MmRohsCompliant:Yes|AmpTeConnectivity8-338069-4 905
RFQ

US Tariff Estimator: 8-338069-4 by TE Connectivity

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

8-338069-4
TE Connectivity
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for 8-338069-4

8-338069-4 CAD Models

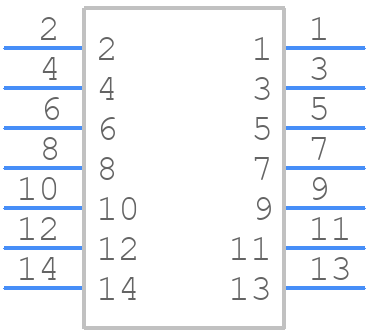

  • Part Symbol

    schematic symbol

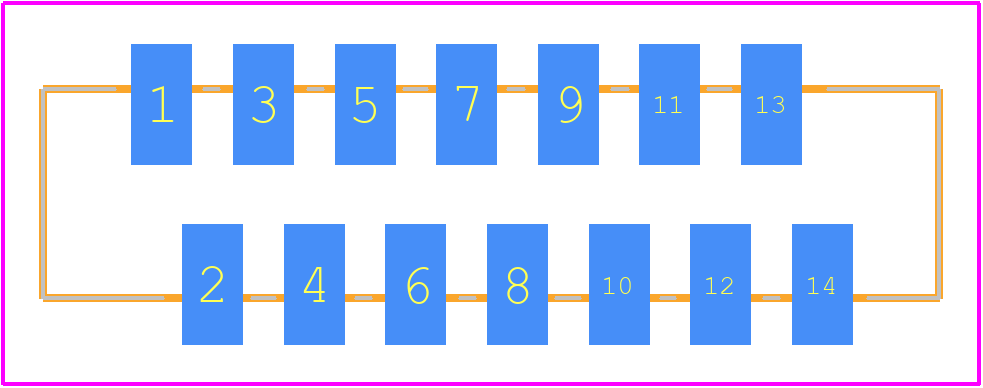

  • Footprint

    pcb footprint

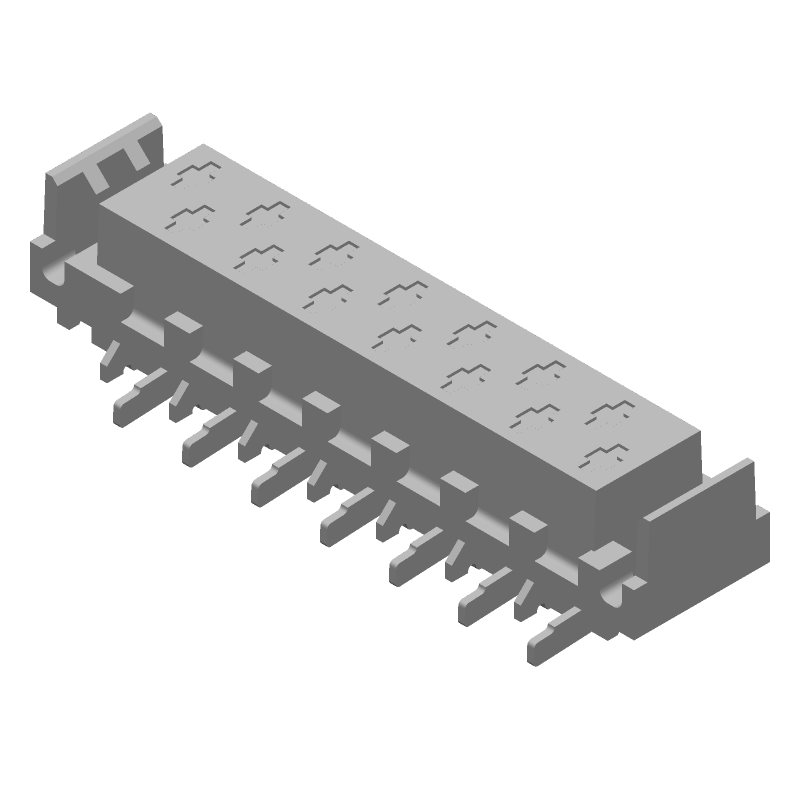

  • 3D Model
