87831-2420 Information
87831-2420 by Molex is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.
Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| 10018783-11112TLF | Amphenol Communications Solutions | PCI Express® GEN 3 Card Edge, Storage and Server Connector, Vertical, Through Hole, x8, 98 Positions, 1.00mm (0.039in) Pitch | |
| 10018783-10003TLF | Amphenol Communications Solutions | PCI Express® GEN 3 Card Edge, Storage and Server Connector, Vertical, Through Hole, x16, 164 Positions, 1.00mm (0.039in) Pitch | |
| 10018783-10000TLF | Amphenol Communications Solutions | PCI Express® GEN 3 Card Edge, Storage and Server Connector, Vertical, Through Hole, x1, 36 Positions, 1.00mm (0.039in) Pitch |
Price & Stock for 87831-2420
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
29AC1695
|
Newark | Mgrid Hdr Shrd Vt Slot/Stdf.38Aulf 24Ckt Rohs Compliant: Yes |Molex 87831-2420 (Alternate Part Number: 822348274154 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 616 |
|
$1.3700 / $1.9500 | Buy Now |
|
DISTI #
29X2090
|
Newark | Connector, Header, 24Pos, 2Row, 2Mm, Connector Systems:Wire-To-Board, Pitch Spacing:2Mm, No. Of Rows:2Rows, No. Of Contacts:24Contacts, Contact Termination Type:Through Hole Straight, Product Range:Milli-Grid 87831 Series Rohs Compliant: Yes |Molex 87831-2420 (Alternate Part Number: 822348274154 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 215 |
|
$1.0900 | Buy Now |
|
DISTI #
0878312420
|
Avnet Americas | Conn Shrouded Header HDR 24 POS 2mm Solder ST Thru-Hole Tube - Rail/Tube (Alt: 0878312420) COO: Malaysia RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 19 Weeks, 0 Days Container: Tube | 616 |
|
$0.8177 / $1.0708 | Buy Now |
|
DISTI #
71465263
|
RS | MGRID HDR SHRD VT SLOT/STDF.38AULF 24CKT Min Qty: 35 Package Multiple: 1 Container: Bulk | 0 |
|
$2.1900 / $2.3900 | RFQ |
|
DISTI #
MOL87831-2420
|
Heilind Electronics | MGRID HDR SHRD VT SLOT/STDF.3 AULF 24CKT | Americas - 3954 in Stock |
|
$0.8351 / $1.0549 | Buy Now |
|
|
Bristol Electronics | 420 |
|
RFQ | ||
|
DISTI #
878312420-MOL
|
TME | 87831-2420 Min Qty: 2000 | 6679 |
|
$1.5255 | Buy Now |
|
DISTI #
SMC-87831-2420
|
Sensible Micro Corporation | Molex RoHS: Not Compliant Min Qty: 25 Lead time: 0 Weeks, 1 Days Date Code: TBC | 9 |
|
RFQ | |
|
|
Chip 1 Exchange | INSTOCK | 8693 |
|
RFQ | |
|
|
Component Electronics, Inc | HDR SHRD 2MM 24P PCST W/KEY BLK TUBE | 36 |
|
$1.2500 / $1.9200 | Buy Now |
US Tariff Estimator: 87831-2420 by Molex
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for 87831-2420
87831-2420 CAD Models
-

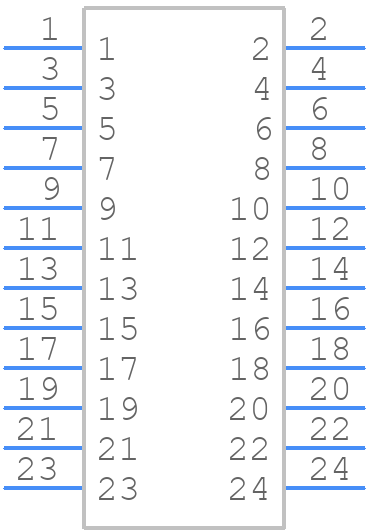

Part Symbol
-

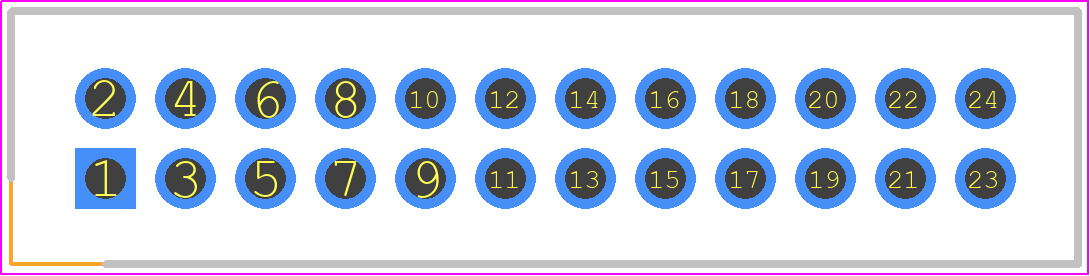

Footprint
-

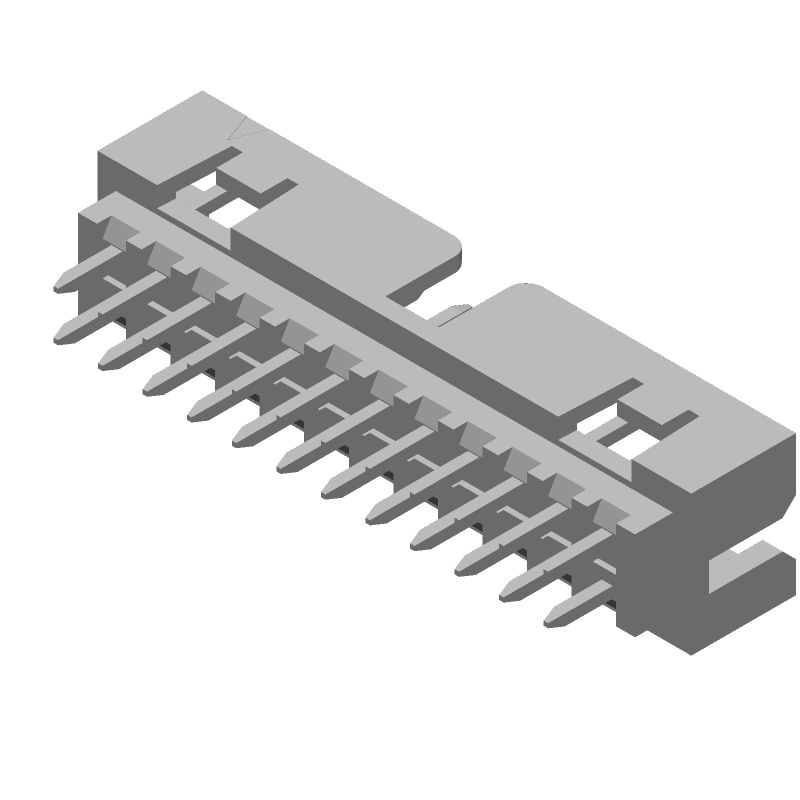

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
87831-2420 Part Data Attributes
|
|
87831-2420
Molex
Buy Now
Datasheet
|
Compare Parts:
87831-2420
Molex
Board Connector, 24 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Guide Slot, Black Insulator, Receptacle,
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MOLEX LLC | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.69.40.40 | |
| Samacsys Manufacturer | Molex | |
| Additional Feature | SHROUDED | |
| Body Breadth | 0.248 inch | |
| Body Depth | 0.252 inch | |
| Body Length | 1.049 inch | |
| Body/Shell Style | RECEPTACLE | |
| Connector Type | BOARD CONNECTOR | |
| Contact Finish Mating | NOT SPECIFIED | |
| Contact Finish Termination | Tin (Sn) | |
| Contact Gender | MALE | |
| Contact Material | NOT SPECIFIED | |
| Contact Pattern | RECTANGULAR | |
| Contact Style | SQ PIN-SKT | |
| DIN Conformance | NO | |
| Dielectric Withstanding Voltage | 1000VAC V | |
| Filter Feature | NO | |
| IEC Conformance | NO | |
| Insulation Resistance | 1000000000 Ω | |
| Insulator Color | BLACK | |
| Insulator Material | GLASS FILLED POLYAMIDE | |
| JESD-609 Code | e3 | |
| MIL Conformance | NO | |
| Mating Contact Pitch | 0.079 inch | |
| Mating Contact Row Spacing | 0.079 inch | |
| Mating Information | MULTIPLE MATING PARTS AVAILABLE | |
| Mixed Contacts | NO | |
| Mounting Option 1 | LOCKING | |
| Mounting Option 2 | LOCKING | |
| Mounting Style | STRAIGHT | |
| Mounting Type | BOARD | |
| Number Of Connectors | ONE | |
| Number Of PCB Rows | 2 | |
| Number of Rows Loaded | 2 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -55 °C | |
| Option | GENERAL PURPOSE | |
| PCB Contact Pattern | RECTANGULAR | |
| PCB Contact Row Spacing | 2 mm | |
| Plating Thickness | 15u inch | |
| Polarization Key | POLARIZED HOUSING | |
| Rated Current (Signal) | 2 A | |
| Reference Standard | UL | |
| Terminal Length | 0.098 inch | |
| Terminal Pitch | 2 mm | |
| Termination Type | SOLDER | |
| Total Number of Contacts | 24 | |
| UL Flammability Code | 94V-0 |
