Telecommunication Circuits / Network Interfaces / 88E1111-B2-BAB-I000
Datasheets
88E1111-B2-BAB-I000 by: Marvell Technology Group Ltd

Ethernet Transceiver, CMOS, PBGA117, TFBGA-117

Part Details for 88E1111-B2-BAB-I000 by Marvell Technology Group Ltd

Results Overview of 88E1111-B2-BAB-I000 by Marvell Technology Group Ltd

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Industrial Automation Financial Technology (Fintech) Smart Cities Transportation and Logistics Agriculture Technology Telecommunications Electronic Manufacturing Communication and Networking Robotics and Drones

88E1111-B2-BAB-I000 Information

88E1111-B2-BAB-I000 by Marvell Technology Group Ltd is a Network Interface.
Network Interfaces are under the broader part category of Telecommunication Circuits.

A telecommunications circuit transmits and receives information between points. Key components include transmitters, receivers, amplifiers, and multiplexers. Read more about Telecommunication Circuits on our Telecommunication Circuits part category page.

Price & Stock for 88E1111-B2-BAB-I000

Part # Distributor Description Stock Price Buy
NexGen Digital   5
RFQ

Part Details for 88E1111-B2-BAB-I000

88E1111-B2-BAB-I000 CAD Models

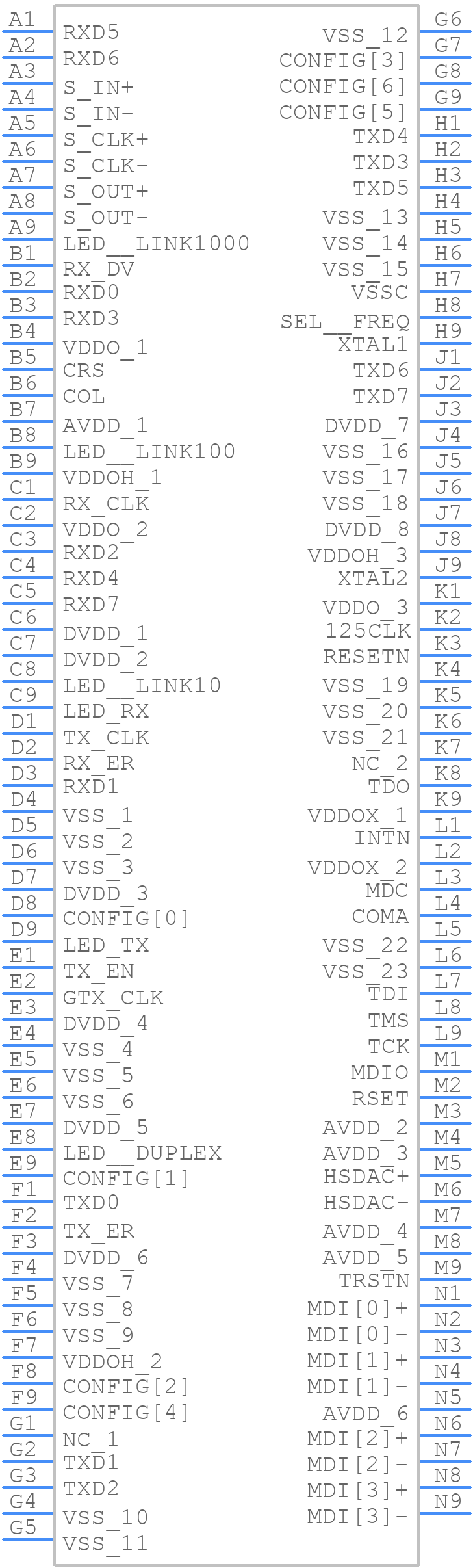

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

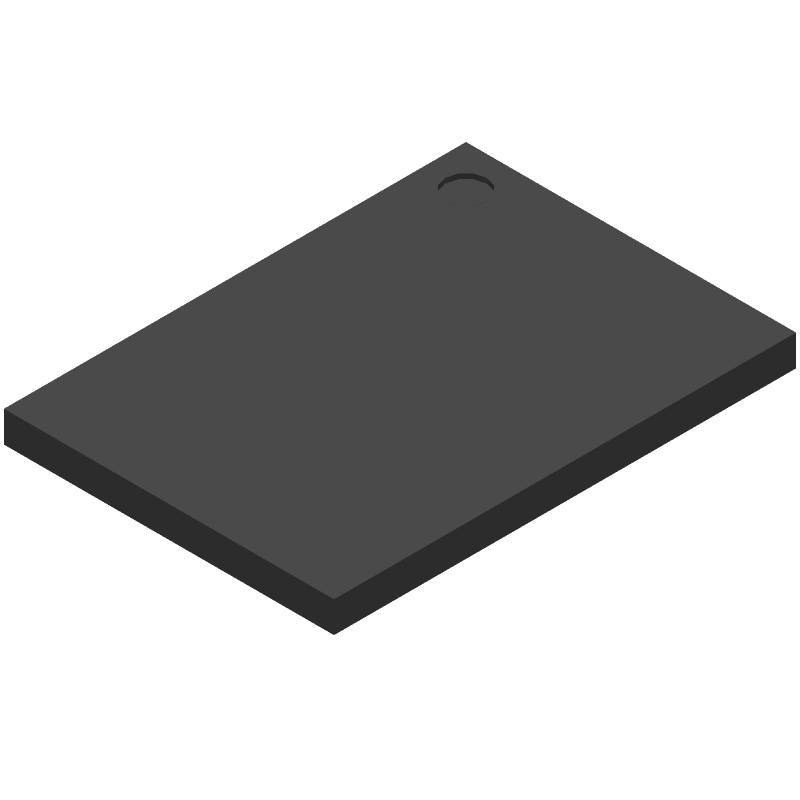

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

88E1111-B2-BAB-I000 Part Data Attributes

Parametric Data
88E1111-B2-BAB-I000 Marvell Technology Group Ltd
Buy Now Datasheet
Compare Parts:
88E1111-B2-BAB-I000 Marvell Technology Group Ltd Ethernet Transceiver, CMOS, PBGA117, TFBGA-117
Rohs Code No
Part Life Cycle Code Obsolete
Ihs Manufacturer MARVELL SEMICONDUCTOR INC
Part Package Code BGA
Package Description TFBGA-117
Pin Count 117
Reach Compliance Code compliant
HTS Code 8542.39.00.01
Samacsys Manufacturer Marvell
Additional Feature IT ALSO REQUIRES 2.5V DIGITAL SUPPLY
Data Rate 1000000 Mbps
JESD-30 Code R-PBGA-B117
Length 14 mm
Number of Functions 1
Number of Terminals 117
Number of Transceivers 1
Package Body Material PLASTIC/EPOXY
Package Code LBGA
Package Equivalence Code BGA117,9X13,40
Package Shape RECTANGULAR
Package Style GRID ARRAY, LOW PROFILE
Qualification Status Not Qualified
Seated Height-Max 1.54 mm
Supply Voltage-Nom 1 V
Surface Mount YES
Technology CMOS
Telecom IC Type ETHERNET TRANSCEIVER
Terminal Form BALL
Terminal Pitch 1 mm
Terminal Position BOTTOM
Width 10 mm

Alternate Parts for 88E1111-B2-BAB-I000

This table gives cross-reference parts and alternative options found for 88E1111-B2-BAB-I000. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 88E1111-B2-BAB-I000, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
88E1111-B2-BAB2I000-P132 Marvell Technology Group Ltd Check for Price Ethernet Transceiver, CMOS, PBGA117, TFBGA-117 88E1111-B2-BAB-I000 vs 88E1111-B2-BAB2I000-P132
88E1111-B2-BAB2C000-P123 Marvell Technology Group Ltd Check for Price Ethernet Transceiver, CMOS, PBGA117, TFBGA-117 88E1111-B2-BAB-I000 vs 88E1111-B2-BAB2C000-P123
Part Number Manufacturer Composite Price Description Compare
88E1111-B1-BAB-C000 Marvell Technology Group Ltd Check for Price Ethernet Transceiver, CMOS, PBGA117, TFBGA-117 88E1111-B2-BAB-I000 vs 88E1111-B1-BAB-C000
88E1111-B2-BAB2C000 Marvell Technology Group Ltd Check for Price Ethernet Transceiver, CMOS, PBGA117, TFBGA-117 88E1111-B2-BAB-I000 vs 88E1111-B2-BAB2C000
88E1111-B2-BAB1I000 Marvell Technology Group Ltd Check for Price Ethernet Transceiver, CMOS, PBGA117, ROHS COMPLIANT, TFBGA-117 88E1111-B2-BAB-I000 vs 88E1111-B2-BAB1I000
88E1111-XX-BAB-C000 Marvell Technology Group Ltd Check for Price Ethernet Transceiver, 1-Trnsvr, CMOS, PBGA117, TFBGA-117 88E1111-B2-BAB-I000 vs 88E1111-XX-BAB-C000
88E1111-B1-BAB1I000 Marvell Technology Group Ltd Check for Price Ethernet Transceiver, CMOS, PBGA117, ROHS COMPLIANT, TFBGA-117 88E1111-B2-BAB-I000 vs 88E1111-B1-BAB1I000
VSC8641XKO-03 Vitesse Semiconductor Corporation Check for Price Ethernet Transceiver, 1-Trnsvr, PQFP100, 12 X 12 MM, 1.60 MM HEIGHT, 0.40 MM PITCH, LEAD FREE, PLASTIC, LQFP-100 88E1111-B2-BAB-I000 vs VSC8641XKO-03
VSC8641XKO Microchip Technology Inc Check for Price Ethernet Transceiver, PQFP100 88E1111-B2-BAB-I000 vs VSC8641XKO
VSC8641XKO Vitesse Semiconductor Corporation Check for Price Ethernet Transceiver, 1-Trnsvr, PQFP100, 12 X 12 MM, 1.60 MM HEIGHT, 0.40 MM PITCH, LEAD FREE, PLASTIC, LQFP-100 88E1111-B2-BAB-I000 vs VSC8641XKO
VSC8211VXW Microsemi Corporation Check for Price Ethernet Transceiver, PBGA117, 10 X 14 MM, 1 MM PITCH, LEAD FREE, LBGA-117 88E1111-B2-BAB-I000 vs VSC8211VXW
VSC8641XJF Vitesse Semiconductor Corporation Check for Price Ethernet Transceiver, 1-Trnsvr, PQCC88, 10 X 10 MM, 0.90 MM HEIGHT, 0.40 MM PITCH, LEAD FREE, PLASTIC, QFN-88 88E1111-B2-BAB-I000 vs VSC8641XJF

88E1111-B2-BAB-I000 Related Parts

88E1111-B2-BAB-I000 Frequently Asked Questions (FAQ)

  • Marvell provides a reference design guide that includes recommended PCB layout guidelines for optimal performance, thermal management, and signal integrity. It's essential to follow these guidelines to ensure reliable operation and minimize electromagnetic interference (EMI).

  • The 88E1111-B2-BAB-I000 supports various network topologies, including point-to-point, star, and bus configurations. Configuration is done through the device's registers, and Marvell provides a software development kit (SDK) with example code and documentation to help with configuration and customization.

  • The 88E1111-B2-BAB-I000 has multiple power management modes, including Energy-Efficient Ethernet (EEE) and Wake-on-LAN (WOL) support. These features can be configured through the device's registers or using the SDK provided by Marvell.

  • Marvell provides a range of debugging tools, including a logic analyzer and a protocol analyzer, to help troubleshoot issues with the device. Additionally, the SDK includes diagnostic software and documentation to aid in debugging and testing.

  • The 88E1111-B2-BAB-I000 has a maximum junction temperature of 125°C. To ensure reliable operation, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, airflow, and thermal interface materials.
