89HPES5T5ZBBCGI Information
89HPES5T5ZBBCGI by Renesas Electronics Corporation is a Bus Controller.
Bus Controllers are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for 89HPES5T5ZBBCGI
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Chip Stock | BGA-196(15x15)Interface-SpecializedROHS | 725 |
|
RFQ |
US Tariff Estimator: 89HPES5T5ZBBCGI by Renesas Electronics Corporation
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for 89HPES5T5ZBBCGI
89HPES5T5ZBBCGI CAD Models
-

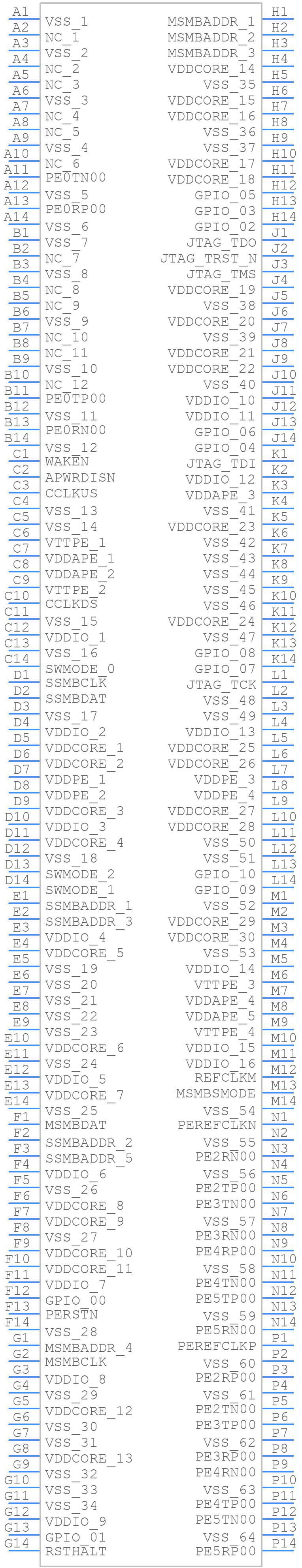

Part Symbol
-

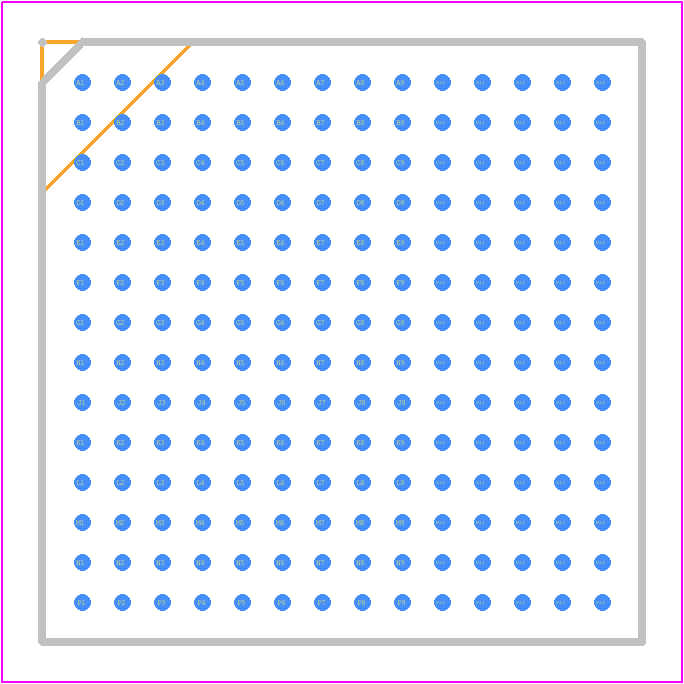

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
89HPES5T5ZBBCGI Part Data Attributes
|
|
89HPES5T5ZBBCGI
Renesas Electronics Corporation
Buy Now
Datasheet
|
Compare Parts:
89HPES5T5ZBBCGI
Renesas Electronics Corporation
5-lane, 5-port PCIe I/O Expansion Switch, CABGA126/Tray
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | RENESAS ELECTRONICS CORP | |
| Part Package Code | CABGA | |
| Package Description | CABGA-196 | |
| Pin Count | 196 | |
| Manufacturer Package Code | BCG196 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | 3A991.A.2 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Renesas Electronics | |
| Additional Feature | ALSO REQUIRES 3.3V SUPPLY | |
| Address Bus Width | ||
| Bus Compatibility | SMBUS | |
| Clock Frequency-Max | 125 MHz | |
| Data Transfer Rate-Max | 2500 MBps | |
| External Data Bus Width | ||
| JESD-30 Code | S-PBGA-B196 | |
| JESD-609 Code | e1 | |
| Length | 15 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of Terminals | 196 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | BGA | |
| Package Equivalence Code | BGA196,14X14,40 | |
| Package Shape | SQUARE | |
| Package Style | GRID ARRAY | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.76 mm | |
| Supply Current-Max | 385 mA | |
| Supply Voltage-Max | 1.1 V | |
| Supply Voltage-Min | 0.9 V | |
| Supply Voltage-Nom | 1 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | TIN SILVER COPPER | |
| Terminal Form | BALL | |
| Terminal Pitch | 1 mm | |
| Terminal Position | BOTTOM | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 15 mm | |
| uPs/uCs/Peripheral ICs Type | BUS CONTROLLER, PCI |
