Relays / RF Relays / 9-1462038-9
Datasheets
9-1462038-9 by: TE Connectivity

RF RELAY, DPDT, MOMENTARY, 0.028A (COIL), 5VDC (COIL), 140mW (COIL), 5A (CONTACT), 220VDC (CONTACT), 900MHz, 60W (RF INPUT), SURFACE MOUNT-STRAIGHT, ROHS COMPLIANT

Part Details for 9-1462038-9 by TE Connectivity

Results Overview of 9-1462038-9 by TE Connectivity

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

9-1462038-9 Information

9-1462038-9 by TE Connectivity is an RF Relay.
RF Relays are under the broader part category of Relays.

A relay is an electromechanical switch that uses an electrical signal to open or close circuits, protecting systems from overcurrents or voltage surges. They are used in a variety of applications, including lighting control, telecommunication, automotive systems, and power protection. Read more about Relays on our Relays part category page.

Price & Stock for 9-1462038-9

Part # Distributor Description Stock Price Buy
DISTI # 16AM1273
Newark High Frequency/Rf Relays Im Relay 140Mw 5V |Amp Te Connectivity 9-1462038-9 RoHS: Not Compliant Min Qty: 1000 Package Multiple: 1 Date Code: 0 Container: Bulk 44000
  • 500 $3.6300
$3.6300 Buy Now
DISTI # 80AH1210
Newark Im03Dgr=Im Relay 140Mw 5V Rohs Compliant: Yes |Te Connectivity 9-1462038-9 RoHS: Compliant Min Qty: 1000 Package Multiple: 1 Date Code: 0 Container: Reel 0
Buy Now
DISTI # AMP9-1462038-9
Heilind Electronics IM03DGR=IM RELAY 140MW 5V Americas - 9000 in Stock
  • 1 $2.0269
  • 25 $1.9728
  • 50 $1.9215
$1.9215 / $2.0269 Buy Now
Bristol Electronics   17
RFQ
ComSIT USA Electronic Component RoHS: Compliant Stock DE - 105
Stock ES - 0
Stock US - 0
Stock MX - 0
Stock CN - 0
Stock HK - 0
RFQ
DISTI # AMP9-1462038-9
Interstate Connecting Components IM03DGR=IM RELAY 140MW 5V 3000
  • 1 $2.0269
  • 25 $1.9728
  • 50 $1.9215
$1.9215 / $2.0269 Buy Now
Powell Electronics IM Rly Std 1.5V-9V Min Qty: 1 20
  • 1 $10.3500
  • 2,000 $7.2500
  • 5,000 $6.0900
  • 10,000 $5.2200
  • 25,000 $4.8000
$4.8000 / $10.3500 Buy Now
DISTI # 000000000002364905
Sager Low Signal Relays - PCB IM03DGR Min Qty: 1000 0
  • 1,000 $2.8800
$2.8800 Buy Now
DISTI # 9-1462038-9
Avnet Abacus Relay Signal DPDT 250VAC 5VDC SMD TR (Alt: 9-1462038-9) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 24 Weeks, 0 Days Abacus - 7000
Buy Now
DISTI # 9-1462038-9
Avnet Abacus Relay Signal DPDT 250VAC 5VDC SMD TR (Alt: 9-1462038-9) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 26 Weeks, 0 Days Abacus - 0
Buy Now
DISTI # 9-1462038-9
Avnet Asia Relay Signal DPDT 250VAC 5VDC SMD T/R (Alt: 9-1462038-9) RoHS: Compliant Min Qty: 5000 Package Multiple: 1000 Lead time: 23 Weeks, 6 Days 0
RFQ
DISTI # 9-1462038-9
Chip One Stop Electromechanicals Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Cut Tape 952
  • 1 $4.3800
  • 10 $3.9000
  • 50 $3.6000
  • 200 $3.4800
  • 500 $3.3200
  • 1,000 $3.2400
$3.2400 / $4.3800 Buy Now
LCSC 5V 5A Two Sets of Conversion 2C (DPDT-Conversion) Power Relays ROHS 2897
  • 1 $2.3743
  • 10 $2.0183
  • 30 $1.7955
  • 100 $1.4952
  • 500 $1.3930
  • 1,000 $1.3482
$1.3482 / $2.3743 Buy Now
New Advantage Corporation   RoHS: Compliant Min Qty: 1 Package Multiple: 1000 2000
  • 1,000 $4.6700
  • 2,000 $4.3600
$4.3600 / $4.6700 Buy Now

Part Details for 9-1462038-9

9-1462038-9 CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

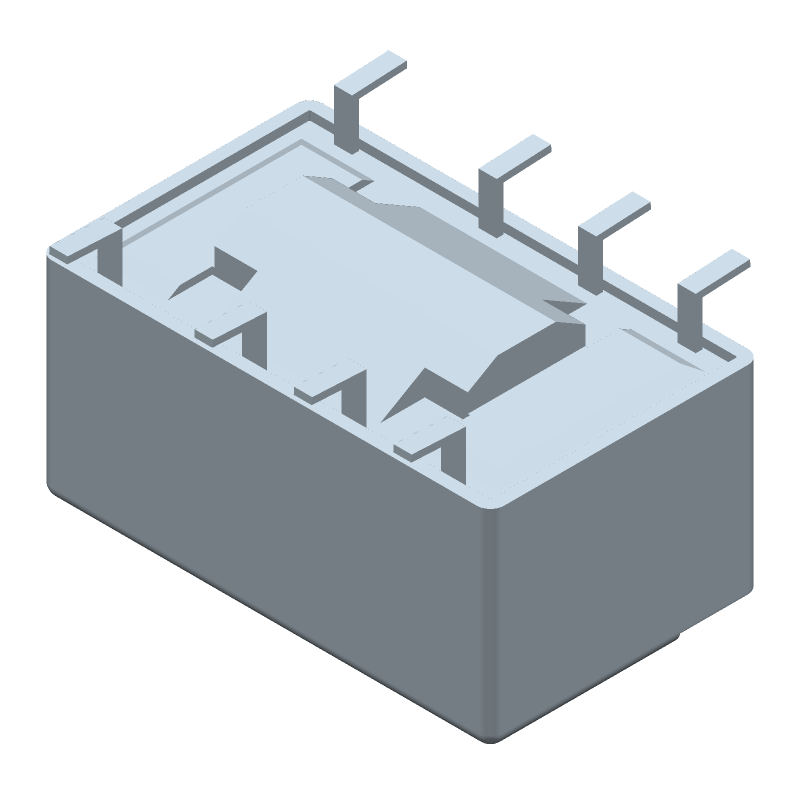

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

9-1462038-9 Part Data Attributes

Parametric Data
9-1462038-9 TE Connectivity
Buy Now Datasheet
Compare Parts:
9-1462038-9 TE Connectivity RF RELAY, DPDT, MOMENTARY, 0.028A (COIL), 5VDC (COIL), 140mW (COIL), 5A (CONTACT), 220VDC (CONTACT), 900MHz, 60W (RF INPUT), SURFACE MOUNT-STRAIGHT, ROHS COMPLIANT
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer TE CONNECTIVITY LTD
Package Description ROHS COMPLIANT
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8536.49.00.50
Factory Lead Time 60 Weeks, 2 Days
Samacsys Manufacturer TE Connectivity
Additional Feature RELEASE TIME WITH DIODE
Body Breadth 6 mm
Body Height 5.65 mm
Body Length or Diameter 10 mm
Coil Current(DC)-Max 0.028 A
Coil Operate Voltage(DC) 3.75 V
Coil Power 140 mW
Coil Release Voltage(DC) 0.5 V
Coil Resistance 178 Ω
Coil Voltage(DC)-Max 5 V
Coil/Input Supply Type DC
Contact (AC) Max Rating R Load 5A@250VAC
Contact Current(AC)-Max 5 A
Contact Current(DC)-Max 5 A
Contact (DC) Max Rating R Load 5A@220VDC
Contact Voltage(AC)-Max 250 V
Contact Voltage(DC)-Max 220 V
Contact/Output Supply Type AC/DC
Electrical Life 100000 Cycle(s)
Input Power-Max 60 W
Insertion Loss-Max -0.03 dB
Isolation-Max -37 dB
Mounting Feature SURFACE MOUNT-STRAIGHT
Operate Time 8 ms
Operating Frequency-Max 900 MHz
Operating Frequency-Min 100 MHz
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Packing Method BOX; TAPE AND REEL
Physical Dimension 10mm x 6mm x 5.65mm
Reference Standard UL
Relay Action MOMENTARY
Relay Function DPDT
Relay Type RF RELAY
Release Time 10 ms
Sealing IP67/RT5
Surface Mount NO
Switching Time 18 ms
Termination Type SOLDER
VSWR 1.49

9-1462038-9 Related Parts

9-1462038-9 Frequently Asked Questions (FAQ)

  • The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals.

  • Yes, the 9-1462038-9 connector is designed to withstand vibrations and is suitable for use in high-vibration environments.

  • The operating temperature range for the 9-1462038-9 connector is -40°C to 125°C (-40°F to 257°F).

  • Yes, the 9-1462038-9 connector is designed for automated assembly and can be used with pick-and-place machines.

  • The recommended wire size for the 9-1462038-9 connector is 24-20 AWG (0.25-0.5 mm²).
