Part Details for A4984SESTR-T by Allegro MicroSystems LLC
Results Overview of A4984SESTR-T by Allegro MicroSystems LLC
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (0 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Aerospace and Defense
Agriculture Technology
Robotics and Drones
A4984SESTR-T Information
A4984SESTR-T by Allegro MicroSystems LLC is a Motion Control Electronic.
Motion Control Electronics are under the broader part category of Signal Circuits.
A signal is an electronic means of transmitting information, either as an analog signal with continuous values or a digital signal with discrete values. Signals are used in various systems and networks. Read more about Signal Circuits on our Signal Circuits part category page.
Price & Stock for A4984SESTR-T
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Bristol Electronics | 8 |
|
RFQ | ||
|
|
Rochester Electronics | Stepper Motor Controller, 2A, NMOS RoHS: Compliant Status: Active Min Qty: 1 | 662 |
|
$1.1600 / $1.4500 | Buy Now |
|
|
Chip Stock | DMOSMicrosteppingDriverwithTranslatorAndOvercurrentProtection,QFN-24,RoHS | 18919 |
|
RFQ | |
|
|
New Advantage Corporation | RoHS: Compliant Min Qty: 1 Package Multiple: 1500 | 3000 |
|
$2.0800 / $2.2500 | Buy Now |
|
|
Win Source Electronics | IC MOTOR DRIVER PAR 24QFN | 15419 |
|
$2.1429 / $2.7678 | Buy Now |
US Tariff Estimator: A4984SESTR-T by Allegro MicroSystems LLC
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for A4984SESTR-T
A4984SESTR-T CAD Models
-

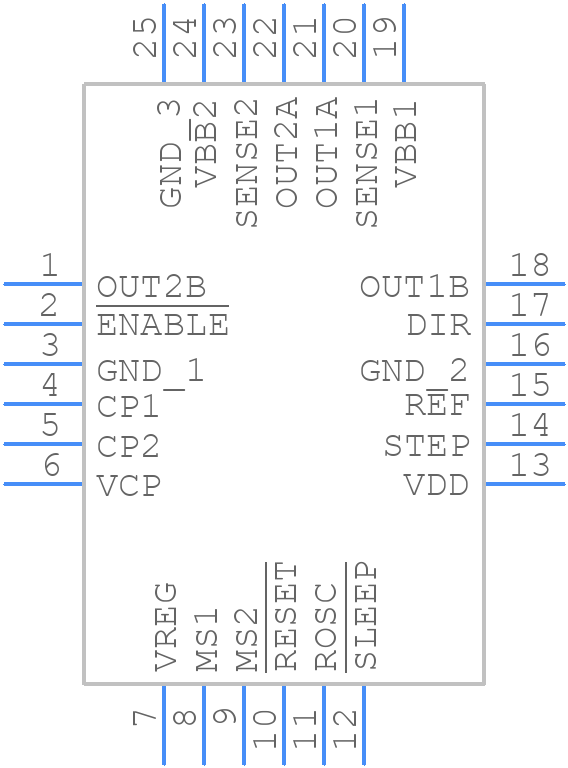

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
A4984SESTR-T Part Data Attributes
|
|
A4984SESTR-T
Allegro MicroSystems LLC
Buy Now
Datasheet
|
Compare Parts:
A4984SESTR-T
Allegro MicroSystems LLC
Stepper Motor Controller, 2A, NMOS, 4 X 4 MM, 0.75 MM HEIGHT, LEAD FREE, MO-220WGGD, QFN-24
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ALLEGRO MICROSYSTEMS LLC | |
| Part Package Code | QFN | |
| Package Description | 4 X 4 MM, 0.75 MM HEIGHT, LEAD FREE, MO-220WGGD, QFN-24 | |
| Pin Count | 24 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Allegro Microsystems | |
| Analog IC - Other Type | STEPPER MOTOR CONTROLLER | |
| JESD-30 Code | S-XQCC-N24 | |
| JESD-609 Code | e3 | |
| Length | 4 mm | |
| Moisture Sensitivity Level | 2 | |
| Number of Functions | 1 | |
| Number of Terminals | 24 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -20 °C | |
| Output Current-Max | 2 A | |
| Package Body Material | UNSPECIFIED | |
| Package Code | HVQCCN | |
| Package Equivalence Code | LCC24,.16SQ,20 | |
| Package Shape | SQUARE | |
| Package Style | CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 0.8 mm | |
| Supply Current-Max (Isup) | 4 mA | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 3 V | |
| Supply Voltage-Nom (Vsup) | 3.3 V | |
| Surface Mount | YES | |
| Technology | NMOS | |
| Temperature Grade | OTHER | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | 40 | |
| Width | 4 mm |
A4984SESTR-T Frequently Asked Questions (FAQ)
-
The maximum current rating of the A4984SESTR-T is 2A per phase, with a peak current rating of 2.5A.
-
The current limit on the A4984SESTR-T is set by the VREF voltage, which is connected to the REF pin. The current limit is calculated as ITRIP = VREF / (8 x Rs), where Rs is the sense resistor value.
-
The SLEEP pin is used to put the device into a low-power sleep mode, reducing the quiescent current to less than 1mA. This can be useful for power-saving applications.
-
The step mode on the A4984SESTR-T is configured using the MS1, MS2, and MS3 pins. The step mode can be set to full step, half step, quarter step, eighth step, or sixteenth step, depending on the desired microstepping resolution.
-
The DIAG pin is an open-drain output that indicates when the device is in an overcurrent or overtemperature condition. It can be used to alert the system to a fault condition.
