Crystals/Resonators / Quartz Crystals / ABM8-16.000MHZ-B2-T
Datasheets
packagee
ABM8-16.000MHZ-B2-T by: Abracon Corporation

CRYSTAL 16.0000MHZ 18PF SMD

Part Details for ABM8-16.000MHZ-B2-T by Abracon Corporation

Results Overview of ABM8-16.000MHZ-B2-T by Abracon Corporation

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Education and Research Internet of Things (IoT) Computing and Data Storage Aerospace and Defense Healthcare Telecommunications Automotive

ABM8-16.000MHZ-B2-T Information

ABM8-16.000MHZ-B2-T by Abracon Corporation is a Quartz Crystal.
Quartz Crystals are under the broader part category of Crystals/Resonators.

Crystals and resonators are key components in electronic circuits that provide precise frequency signals for applications like timing and data processing. Read more about Crystals/Resonators on our Crystals/Resonators part category page.

Price & Stock for ABM8-16.000MHZ-B2-T

Part # Distributor Description Stock Price Buy
DISTI # 87AK6946
Newark Parallel - Fundamental Quartz Crystal, 16Mhz Nom |Abracon ABM8-16.000MHZ-B2-T RoHS: Not Compliant Min Qty: 1000 Package Multiple: 1 Date Code: 0 Container: Reel 47333
  • 1,000 $0.3450
$0.3450 Buy Now
DISTI # 29AC2064
Newark Crystal, Ceramic, 16.000Mhz, 18Pf, 20Ppm -20+70C, 3.2 X 2.5 X .7Mm Rohs Compliant: Yes |Abracon ABM8-16.000MHZ-B2-T RoHS: Compliant Min Qty: 1000 Package Multiple: 1 Date Code: 0 Container: Reel 17000
  • 1 $0.3060
  • 5,000 $0.2510
  • 10,000 $0.2180
  • 25,000 $0.2030
$0.2030 / $0.3060 Buy Now
DISTI # 13J1761
Newark Crystal, 16Mhz, 18Pf, 3.2 X 2.5Mm, Frequency Nom:16Mhz, Crystal Case:Smd, 3.2Mm X 2.5Mm, Frequency Stability +/-:50Ppm, Load Capacitance:18Pf, Frequency Tolerance +/-:20Ppm, Product Range:Abm8 Series, Crystal Mounting Type:Smd Rohs Compliant: Yes |Abracon ABM8-16.000MHZ-B2-T RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 43
  • 1 $0.4730
  • 10 $0.4730
  • 25 $0.4730
  • 50 $0.4730
  • 100 $0.4730
  • 250 $0.4340
  • 500 $0.4340
$0.4340 / $0.4730 Buy Now
DISTI # ABM8-16.000MHZ-B2-T
Avnet Americas Crystal, 16 MHz, SMD, 3.2mm x 2.5mm, 50 ppm, 18 pF, 20 ppm, ABM8 Series - Tape and Reel (Alt: ABM8-16.000MHZ-B2-T) COO: China RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 10 Weeks, 0 Days Container: Reel 17000
RFQ
DISTI # 13J1761
Avnet Americas Crystal, 16 MHz, SMD, 3.2mm x 2.5mm, 50 ppm, 18 pF, 20 ppm, ABM8 Series - Product that comes on tape, but is not reeled (Alt: 13J1761) COO: China RoHS: Compliant Min Qty: 1 Package Multiple: 1 Container: Ammo Pack 43 Partner Stock
  • 1 $0.5800
$0.5800 Buy Now
DISTI # 71528094
RS CRYSTAL, CERAMIC, 16.000MHZ, 18PF, 20PPM -20+70C, 3.2 X 2.5 X .7MM, T/R Min Qty: 1 Package Multiple: 1 Lead time: 3 Weeks, 0 Days Container: Bulk 659
  • 1 $0.2600
$0.2600 Buy Now
Bristol Electronics   Min Qty: 11 995
  • 11 $0.4875
  • 43 $0.3169
  • 159 $0.1828
  • 549 $0.1560
$0.1560 / $0.4875 Buy Now
Bristol Electronics   Min Qty: 11 139
  • 11 $0.4875
  • 43 $0.3169
$0.3169 / $0.4875 Buy Now
Chip 1 Exchange INSTOCK 61532
RFQ
DISTI # ABM8-16.000MHZ-B2-T
Avnet Abacus Crystal 16 MHz SMD 32mm x 25mm 50 ppm 18 pF 20 ppm ABM8 Series - Tape and Reel (Alt: ABM8-16.000MHZ-B2-T) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 12 Weeks, 0 Days Container: Reel Abacus - 13000
Buy Now
DISTI # ABM8-16.000MHZ-B2-T
Avnet Asia Crystal, 16 MHz, SMD, 3.2mm x 2.5mm, 50 ppm, 18 pF, 20 ppm, ABM8 Series (Alt: ABM8-16.000MHZ-B2-T) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 10 Weeks, 0 Days 0
  • 1,000 $0.3662
  • 2,000 $0.3611
  • 3,000 $0.3562
  • 5,000 $0.3513
  • 10,000 $0.3421
  • 25,000 $0.3333
  • 50,000 $0.3250
$0.3250 / $0.3662 Buy Now
DISTI # ABM8-16.000MHZ-B2-T
Chip One Stop Passives RoHS: Compliant pbFree: Yes Min Qty: 5 Lead time: 0 Weeks, 1 Days Container: Cut Tape 848
  • 5 $0.6780
  • 10 $0.5600
  • 50 $0.5280
  • 100 $0.4870
  • 200 $0.4780
  • 500 $0.4350
  • 1,000 $0.3010
  • 2,000 $0.3000
  • 16,000 $0.2990
$0.2990 / $0.6780 Buy Now
Component Electronics, Inc OSC SMT 16.000MHZ T/R 1009
  • 1 $0.7700
  • 100 $0.5800
  • 1,000 $0.5000
$0.5000 / $0.7700 Buy Now
LCSC 18pF SMD3225-4P Crystals RoHS 1772
  • 1 $0.4652
  • 10 $0.3632
  • 30 $0.3199
  • 100 $0.2659
  • 500 $0.2427
  • 1,000 $0.2272
$0.2272 / $0.4652 Buy Now
New Advantage Corporation Crystal, Ceramic, 16.000MHZ, 18pf, 20ppm -20+70C, 3.2 X 2.5 X .7mm Tape & Reel RoHS: Compliant Min Qty: 1 Package Multiple: 1000 14000
  • 1,000 $0.5978
  • 14,000 $0.5518
$0.5518 / $0.5978 Buy Now

US Tariff Estimator: ABM8-16.000MHZ-B2-T by Abracon Corporation

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

ABM8-16.000MHZ-B2-T
Abracon Corporation
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for ABM8-16.000MHZ-B2-T

ABM8-16.000MHZ-B2-T CAD Models

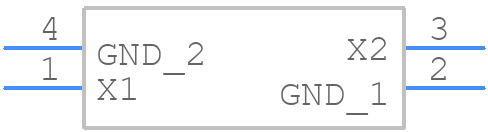

  • Part Symbol

    schematic symbol

  • Footprint

    pcb footprint

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

ABM8-16.000MHZ-B2-T Part Data Attributes

Parametric Data
ABM8-16.000MHZ-B2-T Abracon Corporation
Buy Now Datasheet
Compare Parts:
ABM8-16.000MHZ-B2-T Abracon Corporation CRYSTAL 16.0000MHZ 18PF SMD
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Package Description Smd, 4 Pin
Reach Compliance Code Compliant
HTS Code 8541.60.00.50
Factory Lead Time 10 Weeks
Aging 2 Ppm/First Year
Crystal/Resonator Type Parallel - Fundamental
Drive Level 10 µW
Frequency Stability 0.005%
Frequency Tolerance 20 Ppm
JESD-609 Code e4
Load Capacitance 18 Pf
Mounting Feature Surface Mount
Operating Frequency-Nom 16 Mhz
Operating Temperature-Max 70 °C
Operating Temperature-Min -20 °C
Physical Dimension 3.2mm X 2.5mm X 0.8mm
Series Resistance 70 Ω
Surface Mount Yes
Terminal Finish Nickel/Gold (Ni/Au)

Alternate Parts for ABM8-16.000MHZ-B2-T

This table gives cross-reference parts and alternative options found for ABM8-16.000MHZ-B2-T. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ABM8-16.000MHZ-B2-T, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
ABM82-16.000MHZ-18-B2-T Abracon Corporation Check for Price Parallel - Fundamental Quartz Crystal, 16MHz Nom, SMD, 4 PIN ABM8-16.000MHZ-B2-T vs ABM82-16.000MHZ-18-B2-T
ABM8-16.000MHZ-D2-T Abracon Corporation Check for Price CRYSTAL 16.000MHZ 18PF SMD ABM8-16.000MHZ-B2-T vs ABM8-16.000MHZ-D2-T
ABM8-16.000MHZ-18-K2 Abracon Corporation Check for Price Parallel - Fundamental Quartz Crystal, 16MHz Nom, SMD, 4 PIN ABM8-16.000MHZ-B2-T vs ABM8-16.000MHZ-18-K2
ABM8-16.000MHZ-18-2-T2 Abracon Corporation Check for Price Parallel - Fundamental Quartz Crystal, 16MHz Nom, SMD, 4 PIN ABM8-16.000MHZ-B2-T vs ABM8-16.000MHZ-18-2-T2
ABM8-16.000MHZ-18-D2 Abracon Corporation Check for Price Parallel - Fundamental Quartz Crystal, 16MHz Nom, SMD, 4 PIN ABM8-16.000MHZ-B2-T vs ABM8-16.000MHZ-18-D2
ABM82-16.000MHZ-18-N2-T3 Abracon Corporation Check for Price Parallel - Fundamental Quartz Crystal, 16MHz Nom, SMD, 4 PIN ABM8-16.000MHZ-B2-T vs ABM82-16.000MHZ-18-N2-T3
ABM8-16.000MHZ-K2-T2 Abracon Corporation Check for Price Parallel - Fundamental Quartz Crystal, 16MHz Nom, ROHS COMPLIANT, HERMETIC SEALED, ULTRA MINIATURE, CERAMIC, SMD, 4 PIN ABM8-16.000MHZ-B2-T vs ABM8-16.000MHZ-K2-T2
ABM81-16.000MHZ-N2-T2 Abracon Corporation Check for Price Parallel - Fundamental Quartz Crystal, ABM8-16.000MHZ-B2-T vs ABM81-16.000MHZ-N2-T2
ABM82-16.000MHZ-18-N2-T Abracon Corporation Check for Price Parallel - Fundamental Quartz Crystal, 16MHz Nom, SMD, 4 PIN ABM8-16.000MHZ-B2-T vs ABM82-16.000MHZ-18-N2-T
SXT32418DA07-16.000M Suntsu Electronics Inc Check for Price Parallel - Fundamental Quartz Crystal, 16MHz Nom, SMD, 4 PIN ABM8-16.000MHZ-B2-T vs SXT32418DA07-16.000M
Part Number Manufacturer Composite Price Description Compare
SXT32418DA48-16.000M Suntsu Electronics Inc Check for Price Parallel - Fundamental Quartz Crystal, 16MHz Nom, SMD, 4 PIN ABM8-16.000MHZ-B2-T vs SXT32418DA48-16.000M
equivalents icon

ABM8-16.000MHZ-B2-T Related Parts

ABM8-16.000MHZ-B2-T Frequently Asked Questions (FAQ)

  • The recommended storage temperature range for the ABM8-16.000MHZ-B2-T is -40°C to +125°C.

  • Yes, the ABM8-16.000MHZ-B2-T is RoHS compliant, meaning it meets the European Union's Restriction of Hazardous Substances directive.

  • The operating temperature range for the ABM8-16.000MHZ-B2-T is -20°C to +70°C.

  • The typical power consumption of the ABM8-16.000MHZ-B2-T is around 1-2mA, depending on the specific application and operating conditions.

  • No, the ABM8-16.000MHZ-B2-T is not AEC-Q200 qualified, which is a requirement for automotive applications. It is recommended to use AEC-Q200 qualified oscillators for automotive applications.
